ACCESSORY(ZG1000-A2/A3/A3A)

ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST

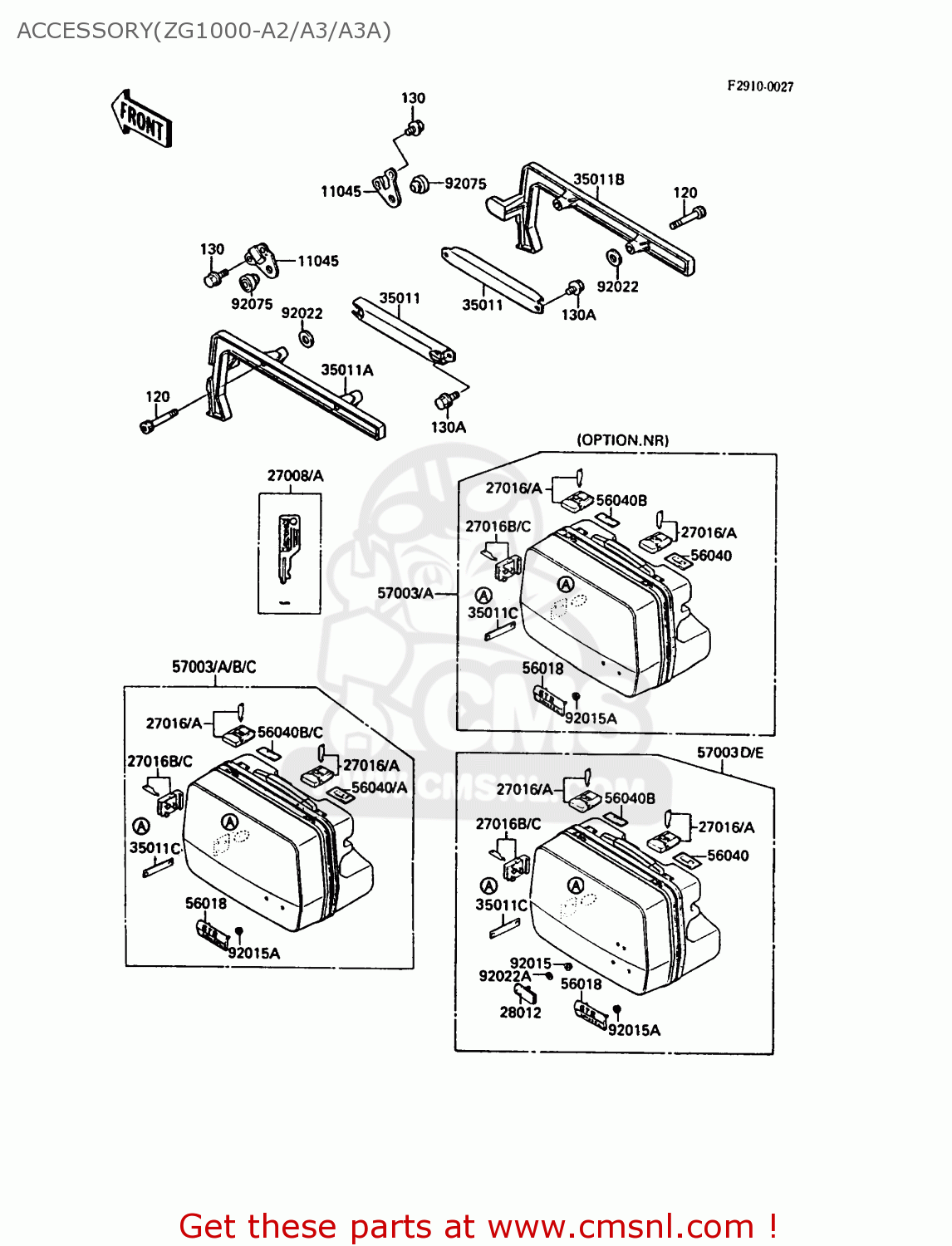

Accessory(zg1000-a2/a3/a3a) diagram ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST

ACCESSORY(ZG1000-A2/A3/A3A) ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST
ACCESSORY(ZG1000-A2/A3/A3A) ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST
ACCESSORY(ZG1000-A2/A3/A3A) ZG1000A2 1000GTR 1987 EUROPE FR UK AR FG IT NR SD ST
prices are in EUR
ref
part #
description
quantity
11045
110441918
ref: 11045
BRACKET,SIDE BAG STOP
110441918
€ 13.00
27008
270081127AA
ref: 27008
KEY-LOCK,#A,SIDE BAG
270081127AA
€ 6.00
27008A
270081127BB
ref: 27008A
KEY-LOCK,SIDE BAG,B
270081127BB
€ 6.00
27016
270161066AA
ref: 27016
LOCK-ASSY,#A,SIDE BAG
270161066AA
€ 82.00
27016A
270161066BB
ref: 27016A
LOCK-ASSY,#B,SIDE BAG
270161066BB
€ 91.00
27016B
270161067AA
ref: 27016B
LOCK-ASSY,#A,SIDE BAG
270161067AA
€ 91.00
27016C
270161067BB
ref: 27016C
LOCK-ASSY,#B,SIDE BAG
€ 86.50
28012
280121003
ref: 28012
AR
REFLECTOR,REFLEX
280121003
€ 15.00
35011
350111299
ref: 35011
STAY,BAG
350111299
€ 39.50
35011A
350111300
ref: 35011A
STAY,BAG,LH
350111300
€ 89.00
35011B
350111301
ref: 35011B
STAY,BAG,RH
350111301
€ 91.50
35011C
350111302
ref: 35011C
STAY,SIDE BAG
€ 12.00
56018
560181949
ref: 56018
MARK,SIDE BAG,GTR
560181949
€ 39.50
56040
560401178
ref: 56040
AREUFGITNRSDSTUK
LABEL-WARNING
€ 4.00
56040A
560401190
ref: 56040A
FR
LABEL-WARNING,SIDE BA
560401190
€ 3.00
56040B
560401192
ref: 56040B
AREUFGITNRSDSTUK
LABEL-WARNING
560401192
€ 4.00
56040C
560401193
ref: 56040C
FR
LABEL-WARNING,SIDE BA
560401193
€ 3.50
57003
570031072
ref: 57003
EUFGITNRSDSTUK
BAG-ASSY,SIDE,LH
€ 933.00
57003A
570031073
ref: 57003A
EUFGITNRSDSTUK
BAG-ASSY,SIDE,RH
€ 933.00
57003B
570031074
ref: 57003B
FR
BAG-ASSY,SIDE,LH
€ 813.50
57003C
570031075
ref: 57003C
FR
BAG-ASSY,SIDE,RH
€ 837.50
57003D
570031076
ref: 57003D
AR
BAG-ASSY,SIDE,LH
€ 1,024.00
57003E
570031077
ref: 57003E
AR
BAG-ASSY,SIDE,RH
€ 1,024.00
120
120S0860
ref: 120
BOLT-SOCKET
120S0860
€ 3.00
130
130G0612
ref: 130
BOLT,FLANGE,6X12
130G0612
€ 0.50
130A
130J0816
ref: 130A
BOLT-FLANGED,8X16,BLA
130J0816
€ 0.50
92015
920151263
ref: 92015
AR
NUT,LOCK 5MM
920151263
€ 4.50
92015A
92018005
ref: 92015A
NUT,PUSH,3MM
92018005
€ 2.00
92022
920221317
ref: 92022
WASHER,8.5X20X1.6,BLA
920221317
€ 2.00
92022A
920221521
ref: 92022A
AR
WASHER,NYLON,5.3X11.5
920221521
€ 2.50
92075
920751859
ref: 92075
DAMPER
920751859
€ 3.50
