RADIATOR
ZG1000A15 1000GTR 2000 EUROPE FR

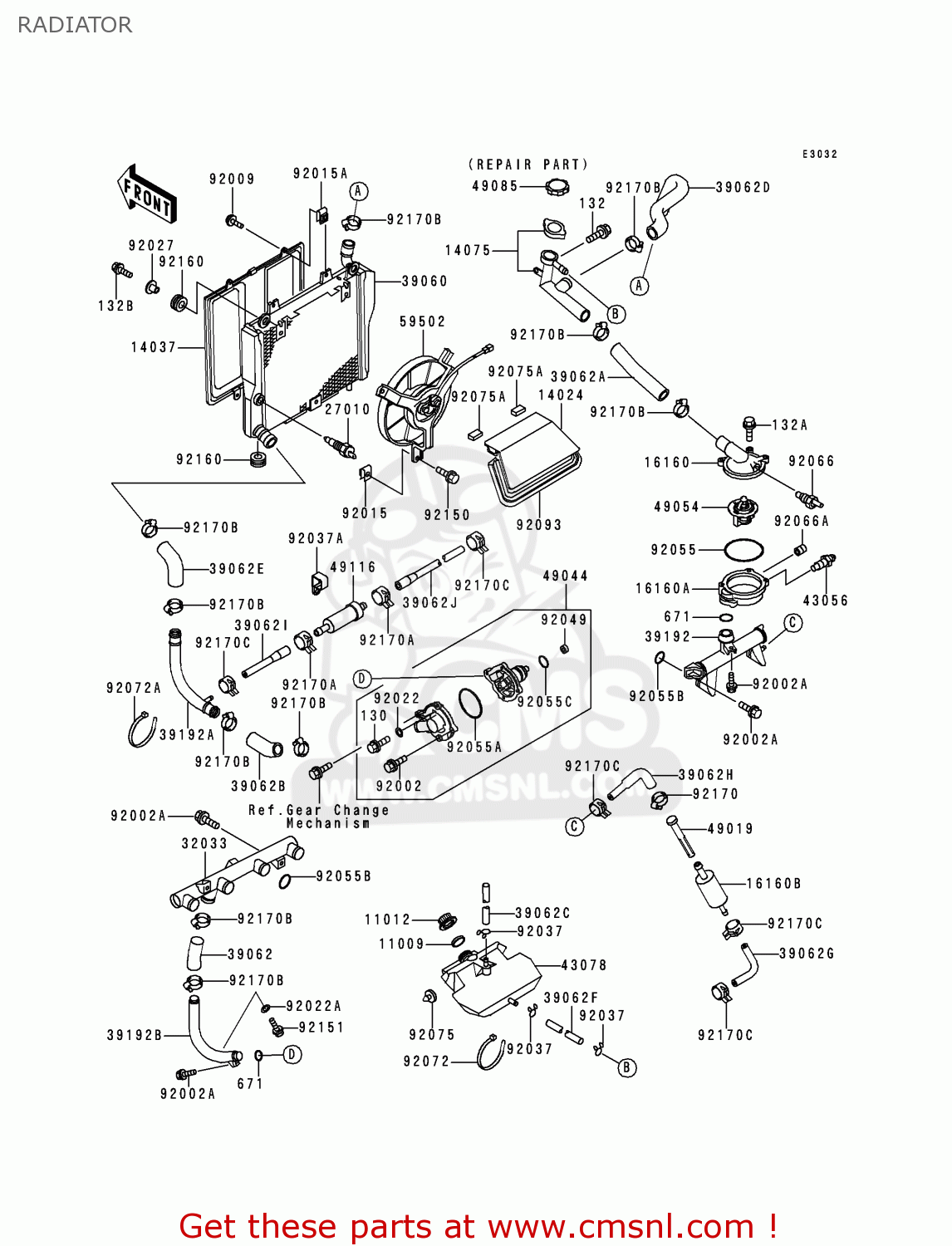

Radiator diagram ZG1000A15 1000GTR 2000 EUROPE FR
RADIATOR ZG1000A15 1000GTR 2000 EUROPE FR
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241267
ref: 14024
COVER
€ 29.50
14037
140371070
ref: 14037
SCREEN,RADIATOR
€ 66.00
14075
140751055
ref: 14075
CAP-ASSY,RADIATOR
€ 160.00
16160
161601067
ref: 16160
BODY,THERMOSTAT,UPP
€ 52.00
16160A
161601068
ref: 16160A
BODY,THERMOSTAT,LWR
€ 63.50
16160B
161601151
ref: 16160B
BODY,FILTER
€ 6.50
27010
270101202
ref: 27010
SWITCH,FAN
€ 74.00
32033
320331262
ref: 32033
PIPE
€ 124.50
39060
390601076
ref: 39060
RADIATOR
€ 934.50
39062
390621072
ref: 39062
HOSE-COOLING
€ 14.00
39062A
390621091
ref: 39062A
HOSE-COOLING
€ 25.50
39062B
390621092
ref: 39062B
HOSE-COOLING
€ 14.00
39062C
390621144
ref: 39062C
HOSE-COOLING,5.5X10.5
€ 25.00
39062D
390621164
ref: 39062D
HOSE-COOLING
€ 36.00
39062E
390621165
ref: 39062E
HOSE-COOLING
€ 10.50
39062F
390621226
ref: 39062F
HOSE-COOLING
€ 25.00
39062G
390621304
ref: 39062G
HOSE-COOLING,FILTER-C
€ 4.50
39062H
390621310
ref: 39062H
HOSE-COOLING,HEAD PIP
€ 9.00
39062I
390621386
ref: 39062I
HOSE-COOLING
€ 6.00
39062J
390621420
ref: 39062J
HOSE-COOLING,VALVE-PU
€ 6.00
39192
391921003
ref: 39192
PIPE-WATER
€ 107.00
39192A
391921006
ref: 39192A
PIPE-WATER
€ 47.50
39192B
391921028
ref: 39192B
PIPE-WATER
€ 98.00
43056
43056003
ref: 43056
BREATHER-BRAKE
€ 16.50
43078
430781074
ref: 43078
RESERVOIR
€ 47.50
49019
490191068
ref: 49019
FILTER-FUEL
€ 4.00
49044
490441058
ref: 49044
PUMP-WATER
€ 259.00
49054
490541051
ref: 49054
THERMOSTAT
€ 44.50
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
49116
491161081
ref: 49116
VALVE-ASSY
€ 85.00
59502
595021067
ref: 59502
FAN-ASSY
€ 558.50
92002
920021392
ref: 92002
BOLT,6X22
€ 3.00
92002A
920021569
ref: 92002A
BOLT,6X12
€ 2.50
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92015A
920151758
ref: 92015A
NUT
€ 4.50
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92022A
92022304
ref: 92022A
WASHER,PLAIN
€ 2.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
132
132J0608
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
132A
132J0620
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
132B
132J0825
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
671
671B2525
ref: 671
O RING,25MM
€ 3.00
92027
920271134
ref: 92027
COLLAR,FUEL TANK FITT
€ 7.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92037A
920371608
ref: 92037A
CLAMP
€ 5.50
92049
920491416
ref: 92049
SEAL-OIL WATER PUMP
€ 7.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
€ 4.00
92055A
920551271
ref: 92055A
RING-O,WATER PUMP
€ 7.00
92055B
920551282
ref: 92055B
RING-O
€ 3.00
92055C
920551424
ref: 92055C
RING-O,33.2X2.4
€ 4.00
92066
920661183
ref: 92066
PLUG,SENSOR WATER
€ 38.00
92066A
920661201
ref: 92066A
PLUG,PT1/8X7
€ 3.50
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92072A
920721197
ref: 92072A
BAND
€ 5.00
92075
92075078
ref: 92075
DAMPER,RUBBER
€ 2.50
92075A
920751446
ref: 92075A
DAMPER,SIDE COVER
€ 3.00
92093
920931214
ref: 92093
SEAL
€ 10.50
92150
921501187
ref: 92150
BOLT,6X16
€ 2.50
92151
921511344
ref: 92151
BOLT
€ 1.50
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701118
ref: 92170
CLAMP
€ 5.00
92170A
921701201
ref: 92170A
CLAMP
€ 3.50
92170B
921701284
ref: 92170B
CLAMP,CABLE
€ 7.50
92170C
921702042
ref: 92170C
CLAMP
€ 1.00
