GEAR CHANGE MECHANISM
ZG1000A15 1000GTR 2000 EUROPE FR

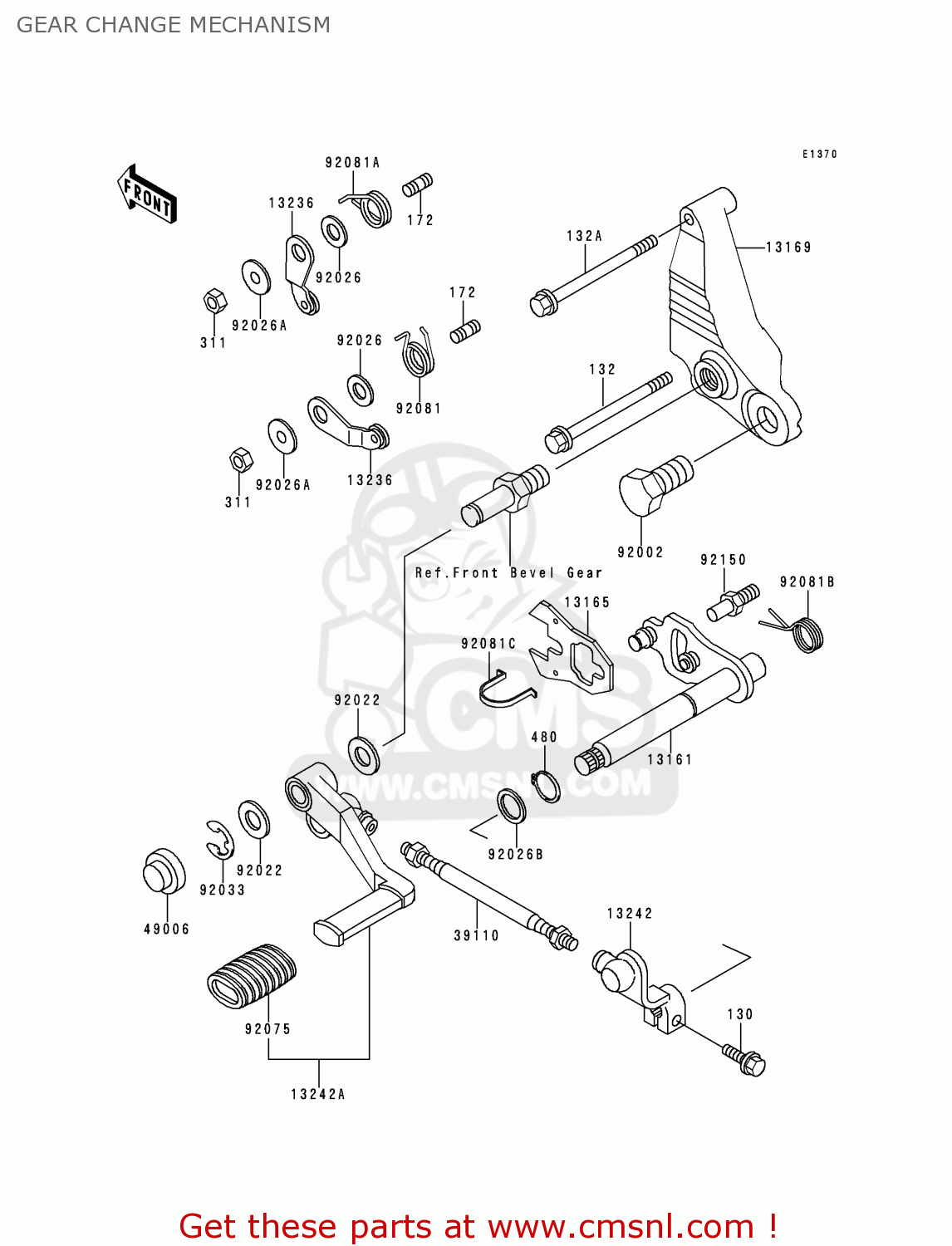

Gear change mechanism diagram ZG1000A15 1000GTR 2000 EUROPE FR
GEAR CHANGE MECHANISM ZG1000A15 1000GTR 2000 EUROPE FR
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
132
132J0660
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132J0670
ref: 132A
BOLT-FLANGED-SMALL
€ 3.00
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
480
480J1300
ref: 480
CIRCLIP-TYPE-C,13MM
€ 2.50
13161
131611123
ref: 13161
LEVER-COMP-CHANGE SHA
€ 81.50
13165
131651120
ref: 13165
PAWL
€ 9.50
13169
131691663
ref: 13169
PLATE,CHANGE PEDAL
€ 43.50
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
€ 13.00
13242
132421195
ref: 13242
LEVER-ASSY-CHANGE
€ 22.00
13242A
132421213
ref: 13242A
LEVER-ASSY-CHANGE,PED
€ 51.00
39110
391101071
ref: 39110
ROD-ASSY-TIE,CHANGE P
€ 8.00
49006
490061061
ref: 49006
BOOT,CHANGE LEVER
€ 6.00
92002
920021816
ref: 92002
BOLT
€ 6.50
92022
920221593
ref: 92022
WASHER,12.5X22X1.2
€ 3.00
92026
92026094
ref: 92026
WASHER,THRUST
€ 6.50
92026A
920261217
ref: 92026A
SPACER
€ 3.50
92026B
920261532
ref: 92026B
SPACER
€ 3.00
92033
920331178
ref: 92033
RING-SNAP,TYPE-E,10MM
€ 2.50
92075
920751175
ref: 92075
DAMPER,CHANGE PEDAL
€ 3.00
92081
920811645
ref: 92081
SPRING
€ 9.00
92081A
920811742
ref: 92081A
SPRING
€ 7.00
92081B
920811750
ref: 92081B
SPRING,CHANGE PEDAL R
€ 7.50
92081C
920811829
ref: 92081C
SPRING,CHANGE LEVER
€ 6.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
