FUEL TANK

ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA

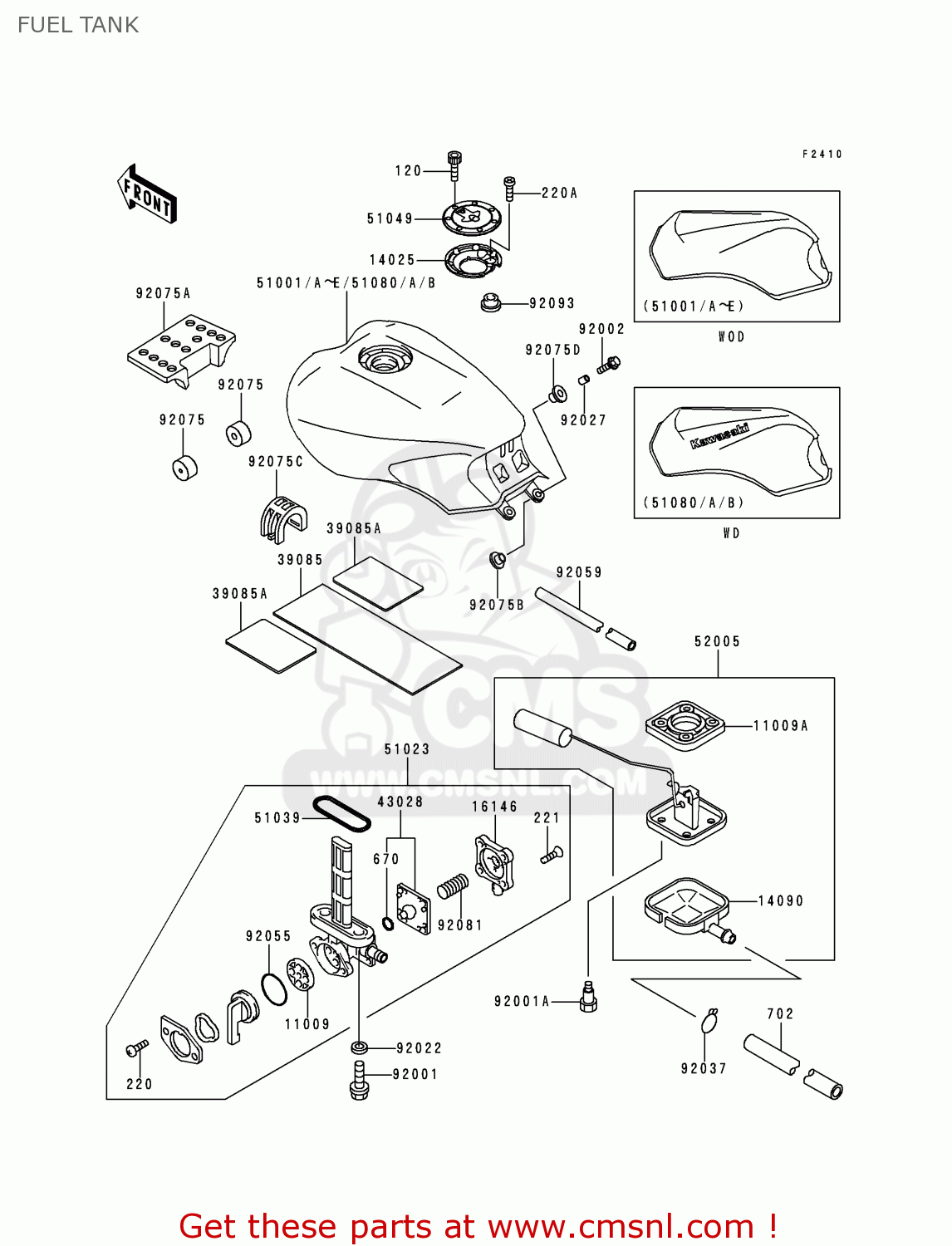

Fuel tank diagram ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA

FUEL TANK ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
FUEL TANK ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
FUEL TANK ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091530
ref: 11009
GASKET,TAP VALVE (NAS)
110091530
€ 6.00
11009A
110091656
ref: 11009A
GASKET,FUEL GAUGE (NAS)
110091656
€ 14.50
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
14090
140901624
ref: 14090
COVER,FUEL GAUGE
140901624
€ 11.50
16146
161461005
ref: 16146
COVER-ASSY,TAP DIAPHR
161461005
€ 14.00
39085
390851060
ref: 39085
CA
TANK PAD,CENTER
€ 34.00
39085A
390851061
ref: 39085A
CA
TANK PAD,SIDE
€ 12.50
43028
430281015
ref: 43028
DIAPHRAGM,TAP
430281015
€ 14.50
51023
510231130
ref: 51023
TAP-ASSY,FUEL
€ 105.00
51039
51039010
ref: 51039
RING,TAP FLANGED
51039010
€ 4.50
51049
510491079
ref: 51049
CAP-TANK,FUEL
510491079
€ 106.50
51080
510805072P5
ref: 51080
CN
TANK-COMP-FUEL,L.V.RE
€ 1,089.00
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A07780
ref: 702
TUBE,RUBBER,7X780
€ 9.50
51080A
5108050972T
ref: 51080A
US
FUEL TANK,COMPLETE,LUMINOUS VINTAGE RED
€ 365.00
51080B
5108050982T
ref: 51080B
CA
FUEL TANK,COMPLETE,LUMINOUS VINTAGE RED,CA
€ 365.00
52005
520051078
ref: 52005
GAUGE,FUEL
520051078
€ 102.00
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92001A
920011705
ref: 92001A
BOLT,FUEL GAGE
920011705
€ 2.50
92002
920021137
ref: 92002
BOLT,6X25
920021137
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
92027156
ref: 92027
COLLAR-BATTERY CASE
92027156
€ 3.00
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
920551027
ref: 92055
RING-O,TAP LEVER
920551027
€ 3.50
92059
920591726
ref: 92059
TUBE
920591726
€ 18.50
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
92075125
€ 4.00
92075A
920751672
ref: 92075A
DAMPER,FUEL TANK
920751672
€ 25.00
92075B
92075174
ref: 92075B
DAMPER,MALE
92075174
€ 3.00
92075C
920751741
ref: 92075C
DAMPER,FUEL TANK
920751741
€ 12.00
92075D
92075175
ref: 92075D
DAMPER,FEMALE
92075175
€ 2.50
92081
920811171
ref: 92081
SPRING,TAP
920811171
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
