CARBURETOR PARTS

ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA

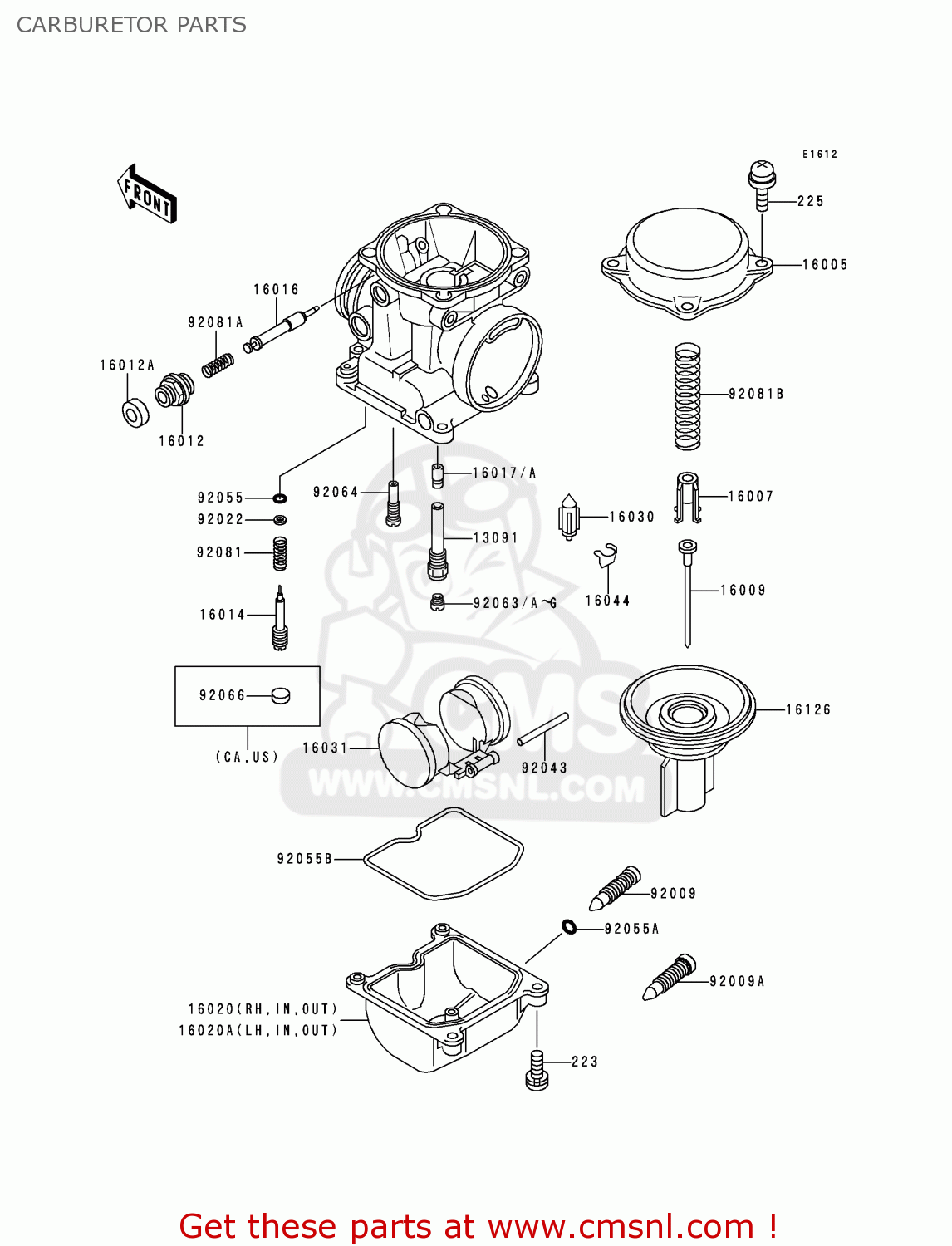

Carburetor parts diagram ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA

CARBURETOR PARTS ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
CARBURETOR PARTS ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
CARBURETOR PARTS ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
13091
130911259
ref: 13091
HOLDER,NEEDLE JET
130911259
€ 19.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
160051056
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
160071120
€ 16.50
16009
160091326
ref: 16009
NEEDLE-JET,N52M
€ 26.00
16012
160121051
ref: 16012
CAP-STARTER PLUNGER
160121051
€ 7.00
16012A
160121052
ref: 16012A
CAP-STARTER PLUNGER
160121052
€ 10.00
16014
160141054
ref: 16014
SCREW-PILOT AIR
160141054
€ 15.50
16016
160161061
ref: 16016
PLUNGER,STARTER
160161061
€ 30.50
16017
160171313
ref: 16017
CN
JET-NEEDLE
160171313
€ 32.00
16017A
160171316
ref: 16017A
CAUS
JET,NEEDLE
€ 24.50
16020
160201054
ref: 16020
CHAMBER-FLOAT,RH,SIDE
160201054
€ 121.50
16020A
160201055
ref: 16020A
CHAMBER-FLOAT,LH,SIDE
€ 121.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
160301007
€ 37.00
16031
160311056
ref: 16031
FLOAT
160311056
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
16044007
€ 4.00
16126
161261160
ref: 16126
VALVE,VACUUM
161261160
€ 159.50
92009
920091487
ref: 92009
SCREW,DRAIN
920091487
€ 10.00
92009A
920091551
ref: 92009A
SCREW,DRAIN
920091551
€ 6.50
92022
920221003
ref: 92022
WASHER,PLAIN
920221003
€ 2.50
92043
920431207
ref: 92043
PIN,FLOAT
920431207
€ 6.00
92055
920551002
ref: 92055
O RING,PILOT ADJUST
920551002
€ 2.50
92055A
920551053
ref: 92055A
O RING,DRAIN SCREW
920551053
€ 3.00
92055B
920551222
ref: 92055B
RING-O,FLOAT CHAMBER
920551222
€ 12.50
92063
920631014
ref: 92063
CA
MAIN JET,#135
920631014
€ 9.50
92063A
920631069
ref: 92063A
MAIN JET,2ND #125
920631069
€ 9.50
92063B
920631072
ref: 92063B
CNUS
MAIN JET 2ND #120
920631072
€ 9.50
92063C
920631073
ref: 92063C
CNUS
MAIN JET,2ND #122
920631073
€ 9.50
92063D
920631074
ref: 92063D
MAIN JET,2ND #128
920631074
€ 9.50
92063E
920631075
ref: 92063E
CA
MAIN JET,2ND #130
920631075
€ 9.50
92063F
920631075
ref: 92063F
CNUS
MAIN JET,2ND #130
920631075
€ 9.50
223
223C0416
ref: 223
SCREW-PAN-WS-CROS
223C0416
€ 2.50
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
225C0418
€ 2.50
92063G
920631076
ref: 92063G
CA
JET-MAIN,#132
920631076
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
920641101
€ 11.50
92066
920661051
ref: 92066
CAUS
PLUG,PILOT AIR SCREW,
920661051
€ 3.00
92081
920811002
ref: 92081
SPRING,PIROT ADJ SCRW
920811002
€ 3.50
92081A
920811761
ref: 92081A
SPRING,STARTER PLUNGE
920811761
€ 6.00
92081B
920811925
ref: 92081B
SPRING,VACUUM VALVE
920811925
€ 16.00
