Genuine ZG Kawasaki Parts delivered quickly!


COWLING LOWERS

ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA

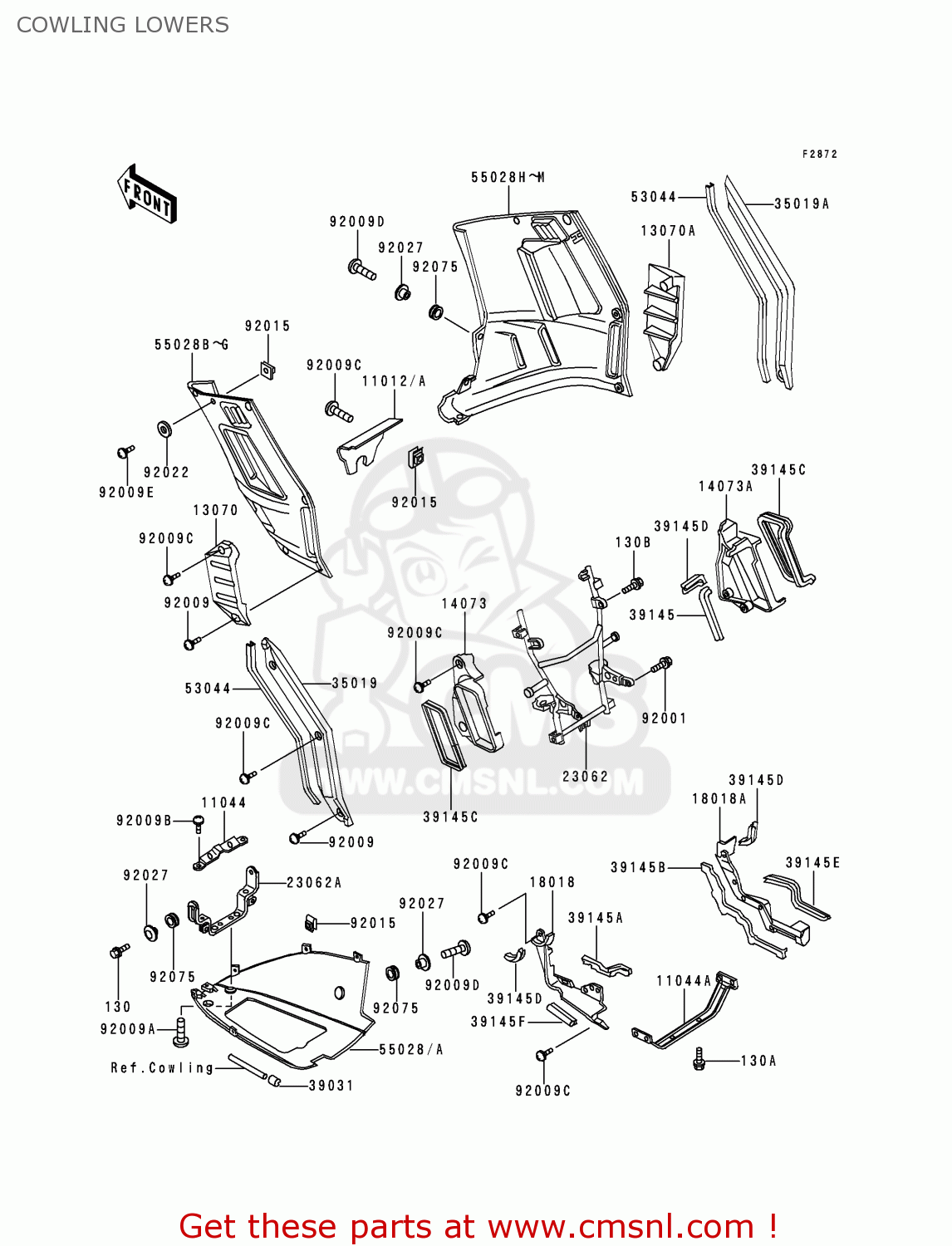

Cowling lowers diagram ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA

COWLING LOWERS ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
COWLING LOWERS ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
COWLING LOWERS ZG1000A10 CONCOURS 1995 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11012
110121534JR
ref: 11012
CAUS
RESERVOIR INSPECTION CAP,PEARL CHATEAU GRAY
€ 35.00
11012A
110121534T2
ref: 11012A
CN
CAP,RESERVOIR INSPECT
110121534T2
€ 54.00
11044
110441919
ref: 11044
BRACKET,RESERVOIR TAN
110441919
€ 5.50
11044A
110441920
ref: 11044A
BRACKET,LOWER COWLING
110441920
€ 25.50
13070
130701171
ref: 13070
GUIDE,SIDE COWLING,LH
130701171
€ 32.00
13070A
130701172
ref: 13070A
GUIDE,SIDE COWLING,RH
130701172
€ 30.50
14073
140731276
ref: 14073
DUCT,RADIATOR,RR,LH
140731276
€ 46.50
14073A
140731284
ref: 14073A
DUCT,RADIATOR,RR,RH
€ 81.50
18018
180181068
ref: 18018
PLATE-HEAT GUARD,SIDE
€ 76.50
18018A
180181069
ref: 18018A
PLATE-HEAT GUARD,SIDE
180181069
€ 81.50
23062
230621064
ref: 23062
BRACKET-COMP,RADIATOR
230621064
€ 216.50
23062A
230621065
ref: 23062A
BRACKET-COMP,LOWER CO
230621065
€ 24.50
35019
350191193
ref: 35019
FLAP,SIDE COWLING,LH
350191193
€ 46.00
35019A
350191194
ref: 35019A
FLAP,SIDE COWLING,RH
350191194
€ 38.50
39031
390311055
ref: 39031
CAP-END,TRIM
390311055
€ 3.50
39145
391451056
ref: 39145
TRIM-SEAL,SIDE COWLIN
391451056
€ 10.50
39145A
391451076
ref: 39145A
TRIM-SEAL,HEAT GUARD
391451076
€ 15.00
39145B
391451077
ref: 39145B
TRIM-SEAL,HEAT GUARD
€ 30.50
39145C
391451078
ref: 39145C
TRIM-SEAL,DUCT
€ 23.00
39145D
391451079
ref: 39145D
TRIM-SEAL,HEAT GUARD
€ 6.00
39145E
391451080
ref: 39145E
TRIM-SEAL,HEAT GUARD,
€ 15.00
39145F
391451084
ref: 39145F
TRIM-SEAL,HEAT GUARD,
€ 14.50
53044
530441184
ref: 53044
TRIM,INNER COWLING
530441184
€ 18.50
55028
550281124JR
ref: 55028
CAUS
FAIRING,LOWER,PEARL CHATEAU GRAY
€ 178.50
55028A
550281124T2
ref: 55028A
CN
COWLING,LWR,P.C.GRAY
€ 302.00
55028D
550281154TP
ref: 55028D
CN
COWLING,SIDE,LH,RED/G
550281154TP
€ 445.50
55028E
5502811542Z
ref: 55028E
CAUS
FAIRING,SIDE,LH,RED/GRAY
€ 232.50
130
130C0618
ref: 130
BOLT-FLANGED
€ 1.50
130A
130G0610
ref: 130A
BOLT-FLANGED,6X10
130G0610
€ 0.50
130B
130J0812
ref: 130B
BOLT-FLANGED
130J0812
€ 0.50
55028J
550281155TP
ref: 55028J
CN
COWLING,SIDE,RH,RED/G
€ 468.00
55028K
5502811552Z
ref: 55028K
CAUS
FAIRING,SIDE,RH,RED/GRAY
€ 232.50
92001
920011844
ref: 92001
BOLT,FLANGED,10X41,BL
920011844
€ 5.00
92009
920091400
ref: 92009
SCREW,6X22
920091400
€ 3.50
92009A
920091402
ref: 92009A
SCREW,6X10
920091402
€ 1.50
92009B
920091651
ref: 92009B
SCREW
920091651
€ 2.50
92009C
920091662
ref: 92009C
SCREW
920091662
€ 2.50
92009D
920091663
ref: 92009D
SCREW
920091663
€ 2.50
92009E
920091664
ref: 92009E
SCREW
920091664
€ 2.50
92015
920151602
ref: 92015
NUT,6MM
920151602
€ 4.50
92022
920221818
ref: 92022
WASHER,6X16X1
920221818
€ 1.50
92027
920271935
ref: 92027
COLLAR,L=9.1,BLACK
920271935
€ 4.00
92075
920751634
ref: 92075
DAMPER
920751634
€ 3.00
