STARTER MOTOR
Z550G4 GT550 1987 UNITED KINGDOM FG

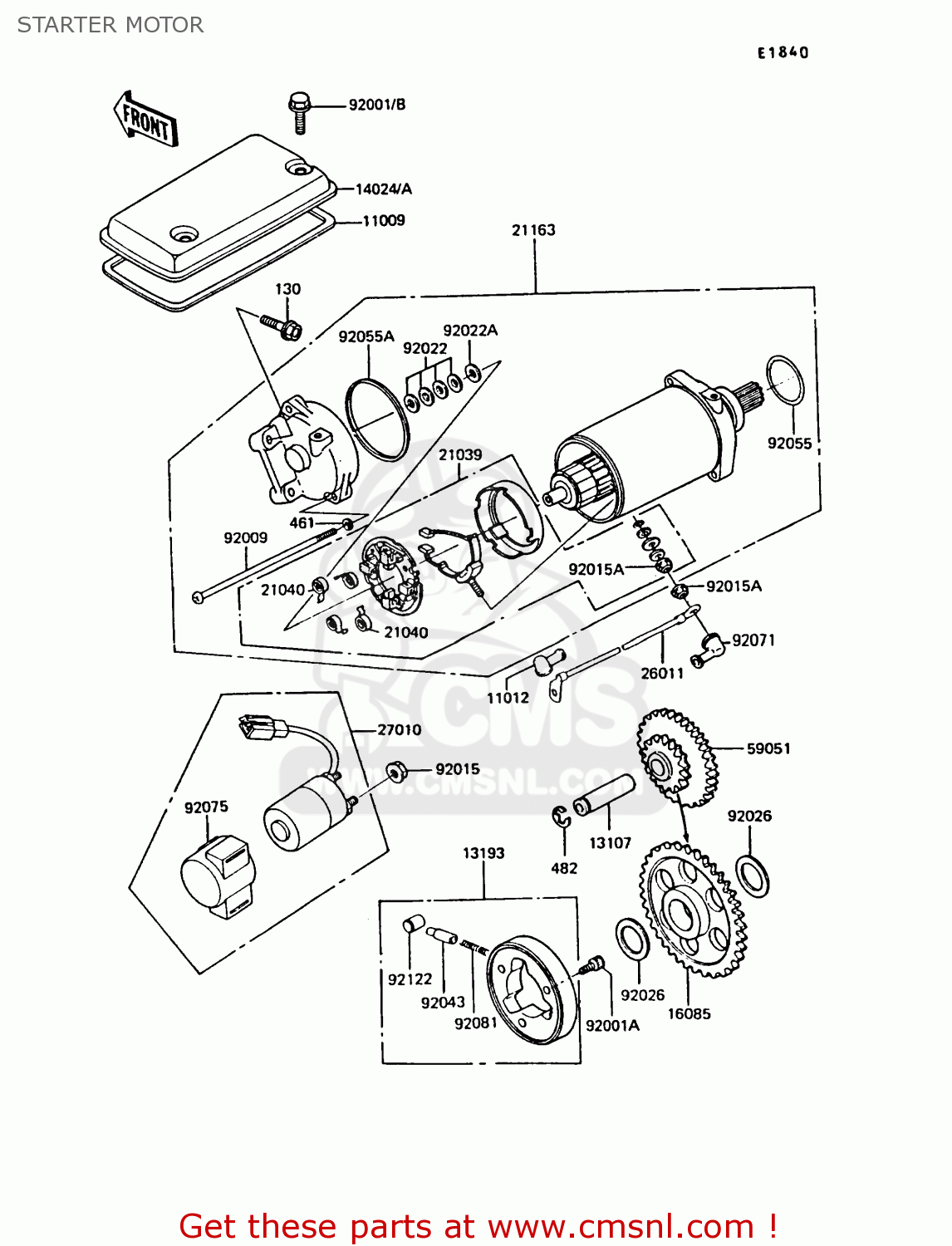

Starter motor diagram Z550G4 GT550 1987 UNITED KINGDOM FG
STARTER MOTOR Z550G4 GT550 1987 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
130
130G0625
ref: 130
BOLT,FLANGED,6X25
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
11009
110091069
ref: 11009
GASKET,STARTER MOTOR (MCA)
€ 8.00
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
13107
131071006
ref: 13107
SHAFT,STARTER IDLE
€ 7.00
13193
131931002
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 96.00
14024
140251050
ref: 14024
COVER,STARTER MOTOR
€ 16.00
16085
160851030
ref: 16085
GEAR,ONEWAY CLUTCH
€ 97.50
21039
210391053
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21163
211631031
ref: 21163
STARTER-ELECTRIC
€ 427.50
26011
260111135
ref: 26011
WIRE-LEAD,STARTER MOT
€ 51.50
27010
270101071
ref: 27010
SWITCH,MAGNETIC
€ 86.00
59051
590511011
ref: 59051
GEAR-SPUR,STARTER IDL
€ 102.50
92001
920011151
ref: 92001
BOLT,6X10
€ 3.00
92001A
920011424
ref: 92001A
BOLT,SOCKET,8X10
€ 3.00
92009
21015005
ref: 92009
SCREW-PAN HEAD,6X110
€ 5.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92015A
920151476
ref: 92015A
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92026
920261025
ref: 92026
SPACER,25X36X3.2
€ 3.50
92043
92043132
ref: 92043
PIN
€ 4.00
92055
21027004
ref: 92055
ORING-STARTING MOTR
€ 6.50
92055A
920551086
ref: 92055A
O RING,64MM
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
92081
92081159
ref: 92081
SPRING, COIL
€ 2.50
92122
92122006
ref: 92122
ROLLER
€ 4.00
