Genuine Z Kawasaki Parts delivered quickly!


BATTERY CASE

Z550G4 GT550 1987 UNITED KINGDOM FG

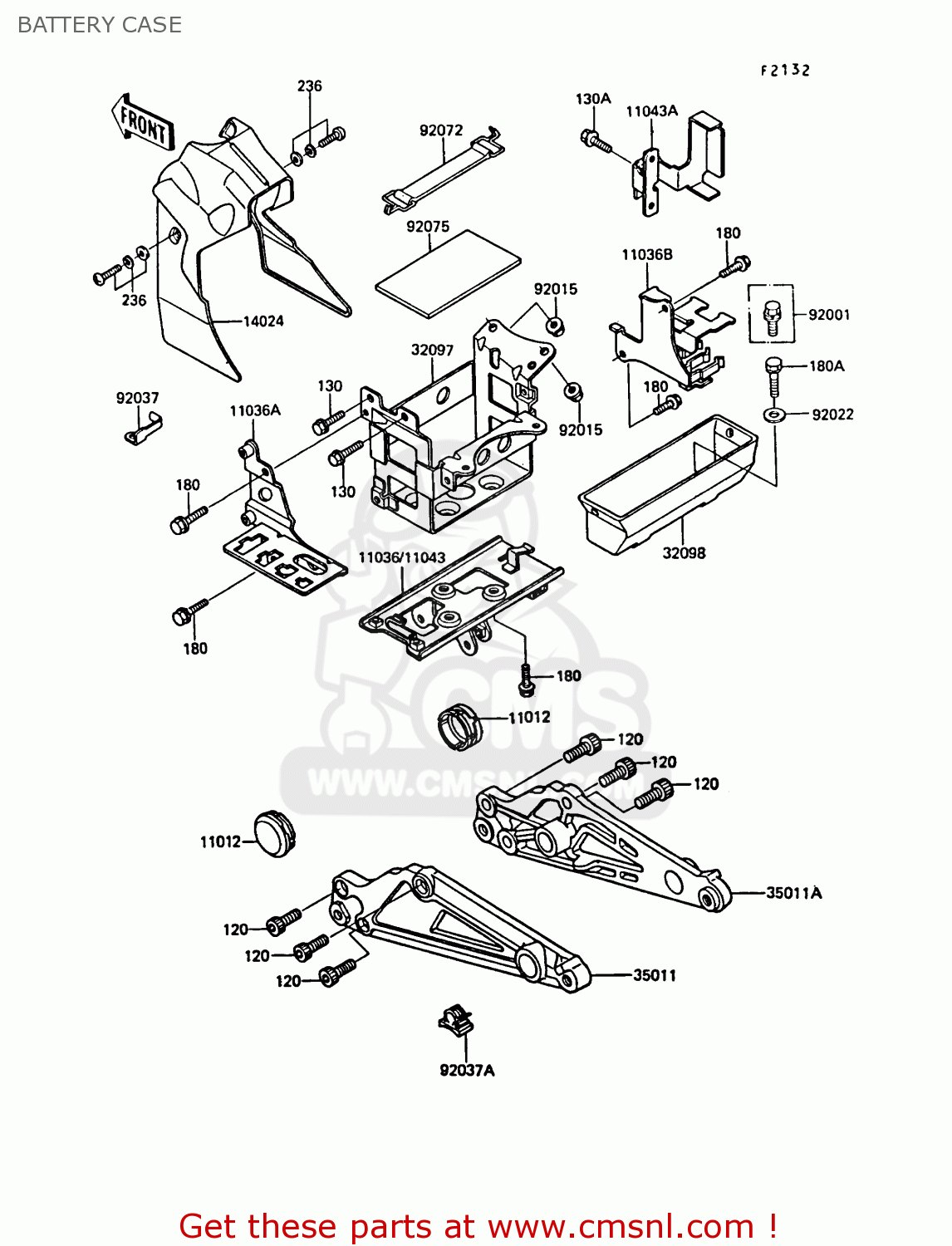

Battery case diagram Z550G4 GT550 1987 UNITED KINGDOM FG

BATTERY CASE Z550G4 GT550 1987 UNITED KINGDOM FG
BATTERY CASE Z550G4 GT550 1987 UNITED KINGDOM FG
BATTERY CASE Z550G4 GT550 1987 UNITED KINGDOM FG
prices are in EUR
ref
part #
description
quantity
120
120S0825
ref: 120
BOLT-SOCKET
120S0825
€ 3.00
130
130B0610
ref: 130
BOLT,FLANGED,6X10
130B0610
€ 0.50
130A
130C0812
ref: 130A
BOLT-FLANGED,8X12,BLA
130C0812
€ 0.50
180
180B0612
ref: 180
BOLT-UPSET-WS,6X12
€ 2.50
236
236C0635
ref: 236
SCREW-PAN-WSP-CROS
€ 2.50
11012
110121397
ref: 11012
CAP,SWING ARM SHAFT
110121397
€ 4.50
11036A
110361827
ref: 11036A
BRACKET-A,ELECTRIC,LH
€ 25.00
11036B
110361828
ref: 11036B
BRACKET-A,ELECTRIC,RH
€ 23.00
11043
110431469
ref: 11043
BRACKET,ELECTRIC BASE
€ 35.50
11043A
110431489
ref: 11043A
BRACKET,IGNITER
€ 23.00
14024
140251551
ref: 14024
COVER,FUEL TANK,FR
€ 25.00
32097
320971062
ref: 32097
CASE-BATTERY
€ 90.00
32098
320981022
ref: 32098
CASE-TOOL
320981022
€ 19.00
35011
350111152
ref: 35011
STAY,LH
350111152
€ 167.50
35011A
350111153
ref: 35011A
STAY,RH
350111153
€ 152.00
92001
920011862
ref: 92001
BOLT,W/SP,6X14
920011862
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
920151193
€ 0.50
92037
920371246
ref: 92037
CLAMP
€ 4.00
92037A
920371340
ref: 92037A
CLAMP,LEAD WIRE
920371340
€ 7.50
92072
920721097
ref: 92072
BAND,BATTERY
920721097
€ 10.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
920751076
€ 6.00
