HEADLIGHT(S)
Z550G4 GT550 1987 UNITED KINGDOM FG

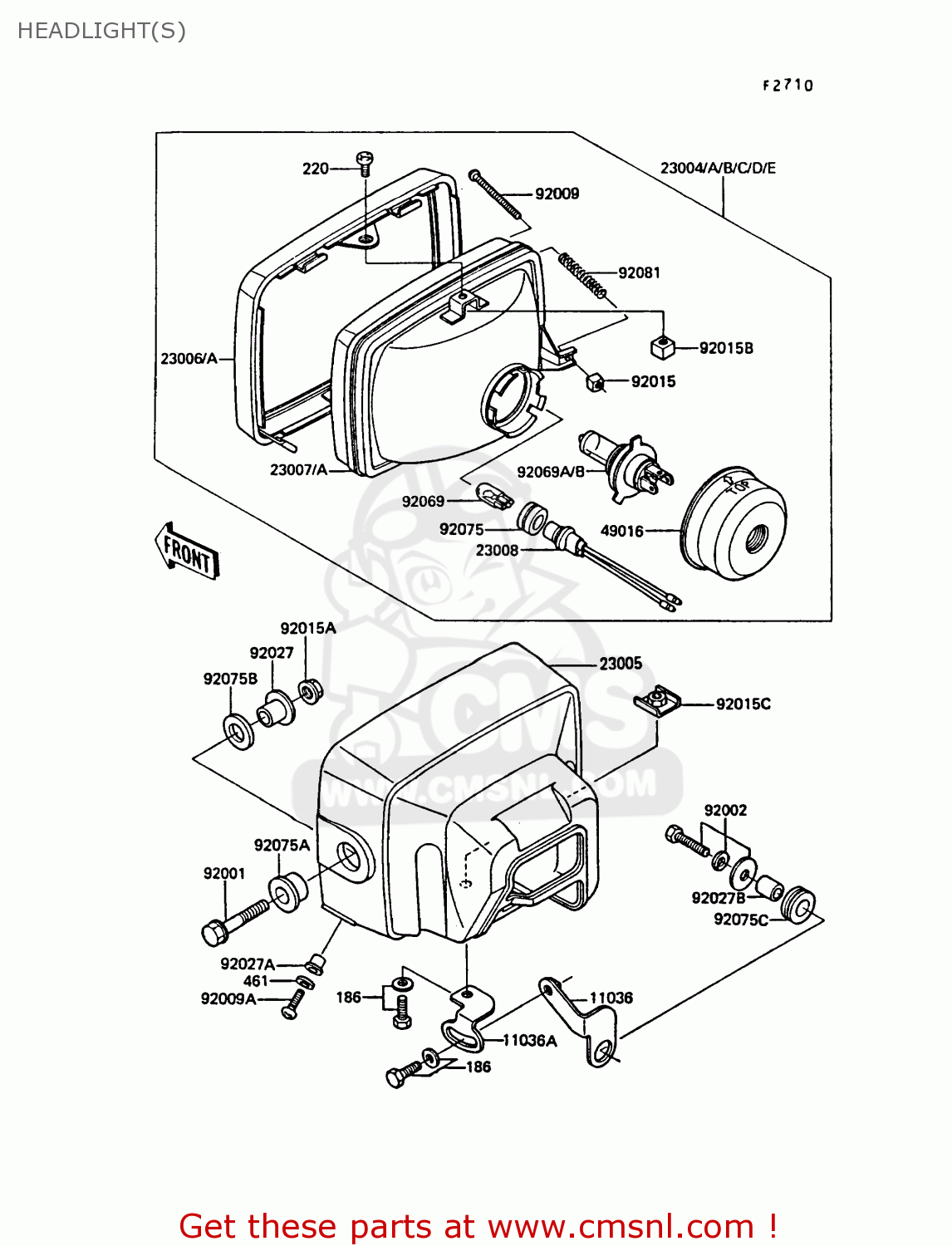

Headlight(s) diagram Z550G4 GT550 1987 UNITED KINGDOM FG
HEADLIGHT(S) Z550G4 GT550 1987 UNITED KINGDOM FG
×
prices are in EUR
ref
part #
description
quantity
11036
110361735
ref: 11036
BRACKET-A,HEAD LAMP
€ 4.50
11036A
110361764
ref: 11036A
BRACKET-A,HEAD LAMP
€ 8.00
23004C
230041113
ref: 23004C
WG
LAMP-HEAD
€ 557.50
23004D
230041114
ref: 23004D
UK
LAMP-HEAD
€ 532.00
23005
23005102821
ref: 23005
BODY-COMP-HEAD LAMP
€ 92.50
23006A
230061023
ref: 23006A
RIM-LAMP,HEAD
€ 69.50
23007
230071051
ref: 23007
WG
LENS-COMP,001-2722 MA
€ 153.00
23007A
230071052
ref: 23007A
UK
LENS-COMP,001-2723 MA
€ 199.50
23008
23008038
ref: 23008
SOCKET-ASSY,PARKING L
€ 7.50
49016
490161046
ref: 49016
COVER-SEAL,HEAD LAMP
€ 7.50
92001
920011910
ref: 92001
BOLT,FLANGED,8X35
€ 4.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091033
ref: 92009
SCREW,FOCUS ADJUSTING
€ 3.50
92009A
920091157
ref: 92009A
SCREW,5MM,BLACK
€ 2.50
92015
23020018
ref: 92015
NUT,4MM,FOCUS ADJUST
€ 3.00
92015A
920151014
ref: 92015A
NUT,8MM
€ 0.50
92015B
920151157
ref: 92015B
NUT,5MM
€ 3.50
92015C
920151231
ref: 92015C
NUT,6MM,HEAD LAMP
€ 6.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
920271503
ref: 92027A
COLLAR,HEAD LAMP,BLAC
€ 2.50
92027B
92027162
ref: 92027B
COLLAR-REAR FENDER
€ 4.50
92069
92069071
ref: 92069
BULB,12V 4W
€ 4.50
92069A
920691002
ref: 92069A
BULB,12V-60155W
€ 15.00
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
€ 0.50
461
461K0500
ref: 461
WASHER-SPRING,5MM,BLA
€ 0.50
92075
23066008
ref: 92075
DAMPER,PARKING LAMP
€ 3.00
92075A
920751109
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 4.00
92075B
920751110
ref: 92075B
DAMPER,HEAD LAMP FITT
€ 3.00
92075C
92075209
ref: 92075C
DAMPER RUBBER
€ 3.00
92081
920811103
ref: 92081
SPRING,HEAD LAMP LENS
€ 3.00
