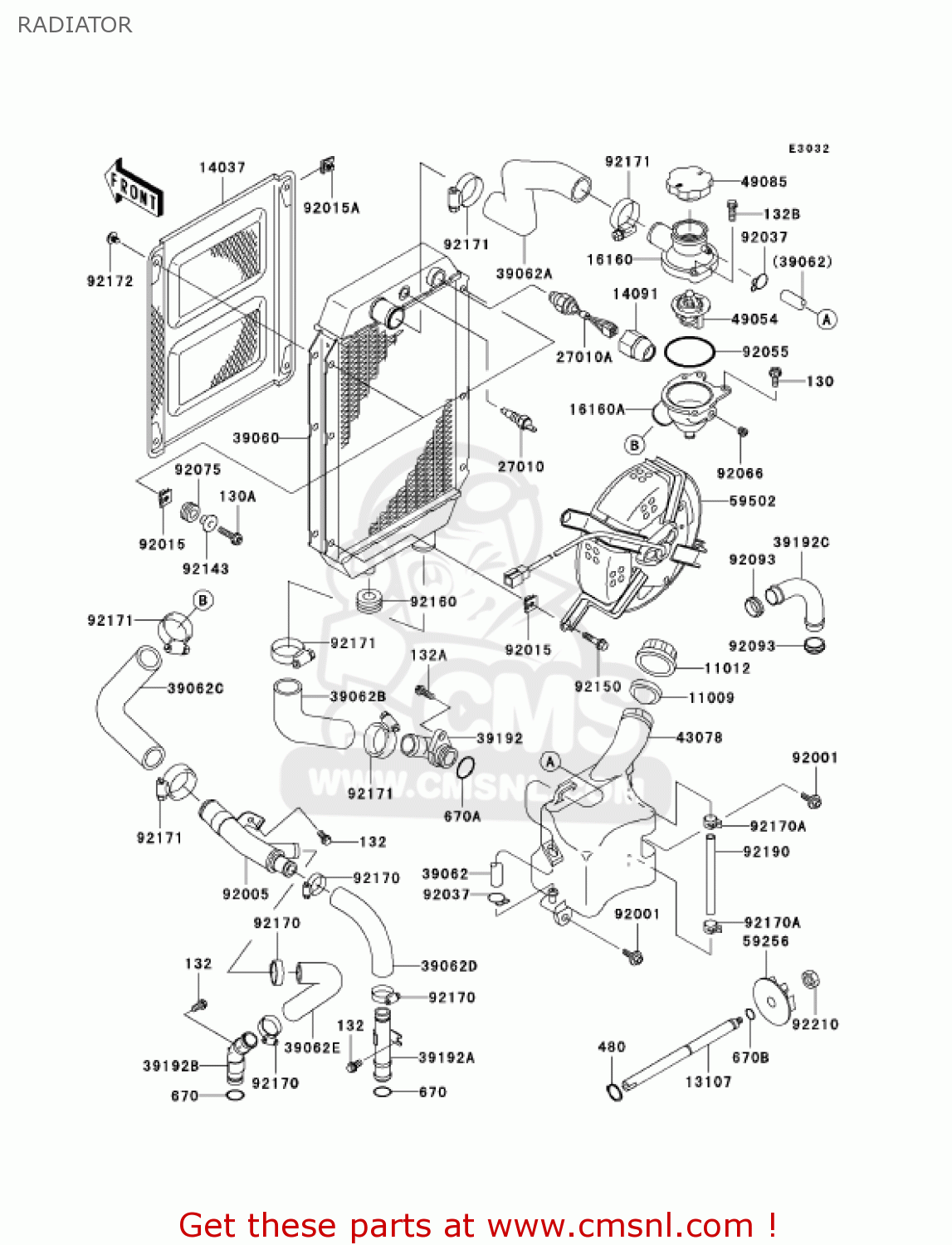

RADIATOR

ref

part #

description

quantity

11009

110091145
ref: 11009

GASKET,RESERVOIR TANK (NAS)

€ 1.00

11012

110121084
ref: 11012

CAP

€ 1.50

13107

131071155
ref: 13107

SHAFT,IMPELLER

€ 35.00

14037

140371200
ref: 14037

SCREEN,RADIATOR

€ 58.50

14091

140911094
ref: 14091

COVER

€ 5.00

16160

161601152
ref: 16160

BODY,UPP

€ 57.00

16160A

161601242
ref: 16160A

BODY

€ 48.00

27010

270101305
ref: 27010

SWITCH

€ 60.00

27010A

270101403
ref: 27010A

SWITCH,THERMOSTAT

€ 61.50

39060

390601164
ref: 39060

RADIATOR

€ 512.50

39062

390621124
ref: 39062

HOSE-COOLING, RESERVO

€ 17.50

39062A

390621646
ref: 39062A

HOSE-COOLING,THERMO-R

€ 27.50

39062B

390621647
ref: 39062B

HOSE-COOLING,RADIATOR

€ 13.50

39062C

390621648
ref: 39062C

HOSE-COOLING,THERMO-F

€ 15.50

39062D

390621649
ref: 39062D

HOSE-COOLING,HEAD,RR-

€ 9.50

39062E

390621650
ref: 39062E

HOSE-COOLING,HEAD,FR-

€ 11.00

39192

391921078
ref: 39192

PIPE-WATER,INLET

€ 34.50

39192A

391921079
ref: 39192A

PIPE-WATER,HEAD,RR

€ 21.00

39192B

391921080
ref: 39192B

PIPE-WATER,HEAD,FR

€ 23.00

39192C

391921106
ref: 39192C

PIPE-WATER,OUTLET

€ 20.50

43078

430781149
ref: 43078

RESERVOIR

€ 45.50

49054

490541067
ref: 49054

THERMOSTAT

€ 46.00

49085

490851067
ref: 49085

CAP-ASSY-PRESSURE

€ 39.50

59256

592561058
ref: 59256

IMPELLER

€ 32.00

59502

595021132
ref: 59502

FAN-ASSY

€ 622.00

92001

920011950
ref: 92001

BOLT,6X16

€ 2.50

92005

920051281
ref: 92005

FITTING

€ 41.00

92015

920151487
ref: 92015

NUT

€ 3.00

92015A

920151758
ref: 92015A

NUT

€ 4.50

92037

92037147
ref: 92037

CLAMP,CHAIN OILER

€ 4.50

92055

92055112
ref: 92055

O RING, 53.5 M/M

€ 4.00

92066

920661227
ref: 92066

PLUG,OIL LINE,1/8X7

€ 4.00

92075

920751901
ref: 92075

DAMPER

€ 2.00

92093

920931427
ref: 92093

SEAL

€ 3.00

92143

921431353
ref: 92143

COLLAR

€ 5.50

92150

921501186
ref: 92150

BOLT

€ 3.00

92160

921601007
ref: 92160

DAMPER

€ 3.50

92170

921701285
ref: 92170

CLAMP,COOLING HOSE

€ 13.00

92170A

921701493
ref: 92170A

CLAMP

€ 3.00

92171

921710179
ref: 92171

CLAMP

€ 7.50

130

130J0616
ref: 130

BOLT-FLANGED,6X16

€ 1.50

130A

130J0625
ref: 130A

BOLT-FLANGED,6X25

€ 2.00

132

132J0612
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0618
ref: 132A

BOLT-FLANGED-SMALL

€ 2.00

132B

132J0620
ref: 132B

BOLT-FLANGED-SMALL

€ 2.00

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

670

670B2014
ref: 670

O RING,14MM

€ 1.00

670A

670B2021
ref: 670A

O RING,21MM

€ 3.00

670B

670D1509
ref: 670B

O RING,9MM

€ 3.00

92172

921720003
ref: 92172

SCREW,TAPPING,6X12

€ 2.00

92190

921901603
ref: 92190

TUBE,7X10X106

€ 2.50

92210

922100006
ref: 92210

NUT,LOCK,6MM

€ 2.00
