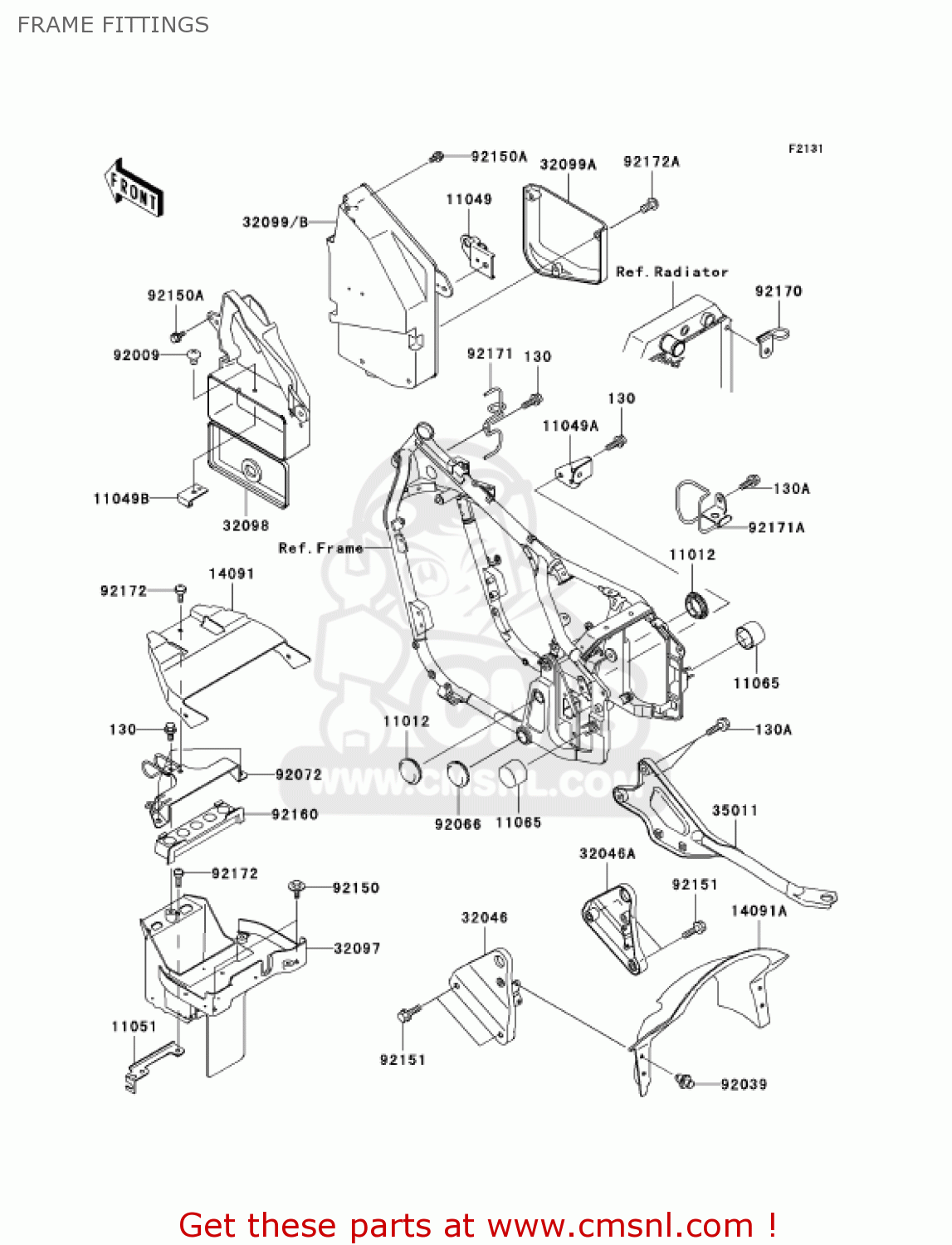

FRAME FITTINGS

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0825
ref: 130A

BOLT-FLANGED,8X25,BLA

€ 2.00

11012

110121926
ref: 11012

CAP

€ 8.00

11049

110491183
ref: 11049

BRACKET,SIDE COVER LO

€ 10.50

11049A

110491233
ref: 11049A

BRACKET,RESERVOIR TAN

€ 6.50

11049B

110491266
ref: 11049B

BRACKET,TOOL CASE LOC

€ 3.00

11051

110511328
ref: 11051

BRACKET,STARTER CABLE

€ 8.00

11065

110651183
ref: 11065

CAP

€ 9.50

14091

140911060
ref: 14091

COVER,ELECTRIC

€ 13.00

14091A

140911368
ref: 14091A

COVER,SEAT UNDER

€ 185.00

32046

320461494
ref: 32046

BRACKET-SEAT,LH

€ 29.50

32046A

320461495
ref: 32046A

BRACKET-SEAT,RH

€ 36.50

32097

320971189
ref: 32097

CASE-BATTERY

€ 92.50

32098

320981106
ref: 32098

CASE-TOOL

€ 62.50

32099

320991163
ref: 32099
[CA]

BASE CASE

€ 26.50

32099A

320991164
ref: 32099A

CASE

€ 12.50

32099B

320991167
ref: 32099B
[US]

CASE,BASE

€ 38.50

35011

350111972
ref: 35011

STAY,MUFFLER

€ 88.00

92009

920091653
ref: 92009

SCREW

€ 2.50

92039

920391227
ref: 92039

RIVET

€ 1.00

92066

920661434
ref: 92066

PLUG

€ 7.50

92072

920721366
ref: 92072

BAND,BATTERY

€ 12.50

92150

921501133
ref: 92150

BOLT,6X14

€ 2.50

92150A

921501689
ref: 92150A

BOLT,FLANGED,6X14

€ 2.00

92151

921511442
ref: 92151

BOLT,FLANGED,10X30

€ 3.50

92160

921601634
ref: 92160

DAMPER,BATTERY BAND

€ 24.50

92170

921701608
ref: 92170

CLAMP,CABLE

€ 4.50

92171

921711074
ref: 92171

CLAMP,HARNESS&CABLE

€ 21.00

92171A

921711180
ref: 92171A

CLAMP,BRAKE HOSE

€ 17.50

92172

921720005
ref: 92172

SCREW,6X10

€ 1.50

92172A

921720006
ref: 92172A

SCREW,TAPPING,5X14

€ 2.00
