FRONT FORK

VN800E6F VULCAN 800 DRIFTER 2006 USA CALIFORNIA

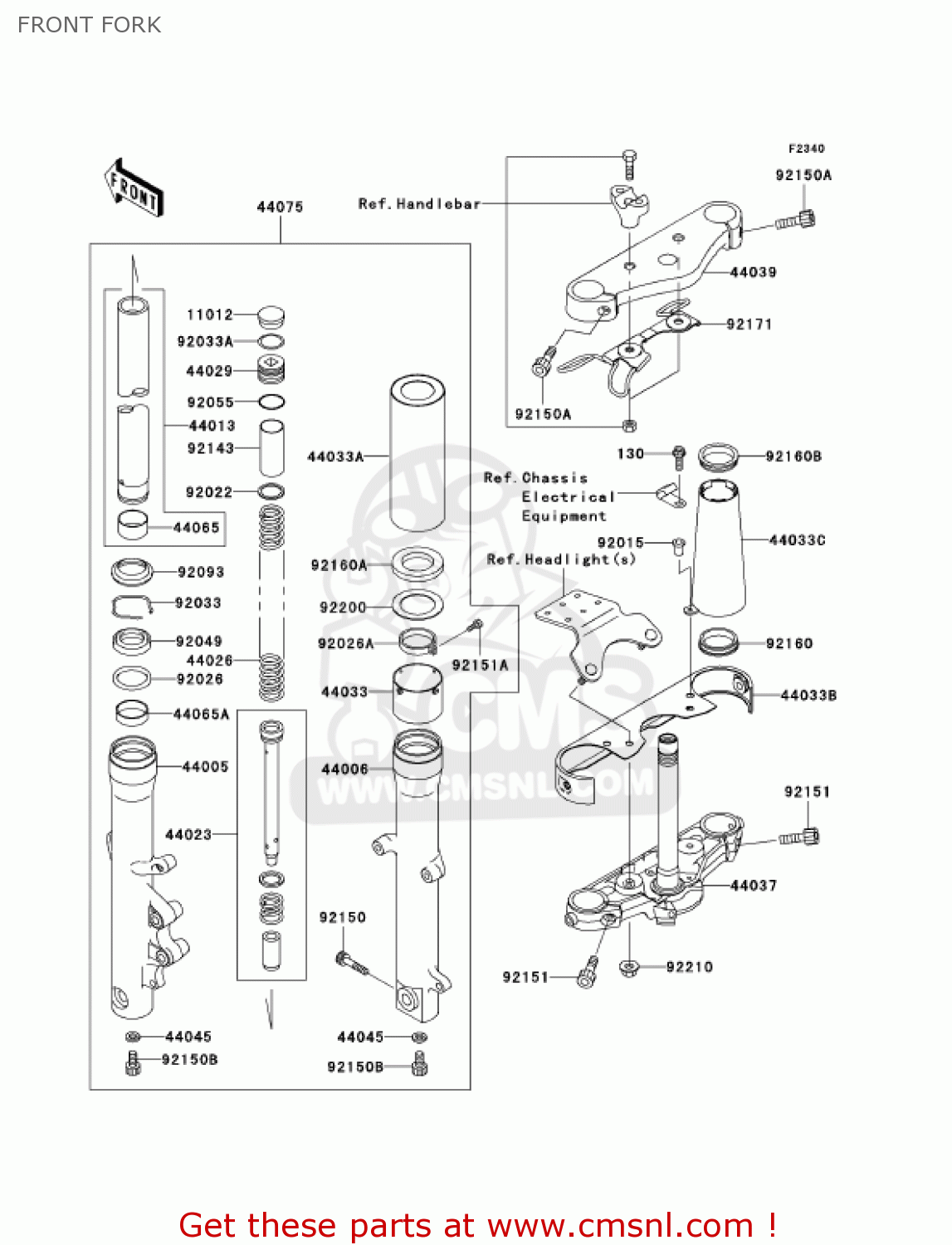

Front fork diagram VN800E6F VULCAN 800 DRIFTER 2006 USA CALIFORNIA

FRONT FORK VN800E6F VULCAN 800 DRIFTER 2006 USA CALIFORNIA
FRONT FORK VN800E6F VULCAN 800 DRIFTER 2006 USA CALIFORNIA
FRONT FORK VN800E6F VULCAN 800 DRIFTER 2006 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130J0516
ref: 130
BOLT-FLANGED
€ 1.50
11012
110121618
ref: 11012
CAP,FORK TOP
110121618
€ 10.00
44005
440051415
ref: 44005
PIPE-LEFT FORK OUTER
€ 388.00
44006
440061415
ref: 44006
PIPE-RIGHT FORK OUTER
€ 388.00
44013
440131467
ref: 44013
PIPE-FORK INNER
€ 157.50
44023
440231140
ref: 44023
CYLINDER-SET-FORK
€ 106.50
44026
440261698
ref: 44026
SPRING-FRONT FORK
€ 70.00
44029
440291125
ref: 44029
SEAT-FORK SPRING
€ 29.50
44033
440331252
ref: 44033
COVER-FORK
440331252
€ 11.50
44033A
440331261
ref: 44033A
COVER-FORK
440331261
€ 100.00
44033B
440331264
ref: 44033B
COVER-FORK,UNDER BRAC
€ 129.50
44033C
440331265
ref: 44033C
COVER-FORK,INNER TUBE
€ 69.50
44037
440371413
ref: 44037
HOLDER-FORK UNDER
€ 280.00
44039
440391314
ref: 44039
HOLDER-FORK UPPER
€ 280.00
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44065
440651131
ref: 44065
BUSHING-FRONT FORK,IN
440651131
€ 14.00
44065A
440651132
ref: 44065A
BUSHING-FRONT FORK
€ 12.00
44075
440751140
ref: 44075
DAMPER-SET-FORK
€ 1,170.00
92015
920151757A
ref: 92015
NUT,5MM
920151757A
€ 5.00
92022
920221909
ref: 92022
WASHER
€ 7.00
92026
920261276
ref: 92026
SPACER,FORK OUTER
920261276
€ 6.50
92026A
920261515
ref: 92026A
SPACER
920261515
€ 13.00
92033
920331222
ref: 92033
RING-SNAP,FORK OUTER
920331222
€ 4.00
92033A
920331223
ref: 92033A
RING-SNAP,SPRING SEAT
920331223
€ 4.00
92049
920491363
ref: 92049
SEAL-OIL,FORK
920491363
€ 17.50
92055
920551363
ref: 92055
RING-O,SPRING SEAT
920551363
€ 4.50
92093
920931268
ref: 92093
SEAL,FORK
920931268
€ 16.50
92143
921431923
ref: 92143
COLLAR,FORK,L=100
€ 12.50
92150
921501029
ref: 92150
BOLT,SOCKET,10X40
921501029
€ 7.00
92150A
921501031
ref: 92150A
BOLT,SOCKET,8MM
921501031
€ 6.00
92150B
921501432
ref: 92150B
BOLT
921501432
€ 6.50
92151
921511083
ref: 92151
BOLT
921511083
€ 6.00
92151A
921511356
ref: 92151A
BOLT
921511356
€ 1.50
92160
921601892
ref: 92160
DAMPER
921601892
€ 2.50
92160A
921601927
ref: 92160A
DAMPER
921601927
€ 6.00
92160B
921601968
ref: 92160B
DAMPER
921601968
€ 7.00
92171
921711339
ref: 92171
CLAMP,CABLE
€ 72.50
92200
922001417
ref: 92200
WASHER
€ 4.50
92210
922100004
ref: 92210
NUT,FLANGED,8MM
922100004
€ 1.00
