REAR MASTER CYLINDER

VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA

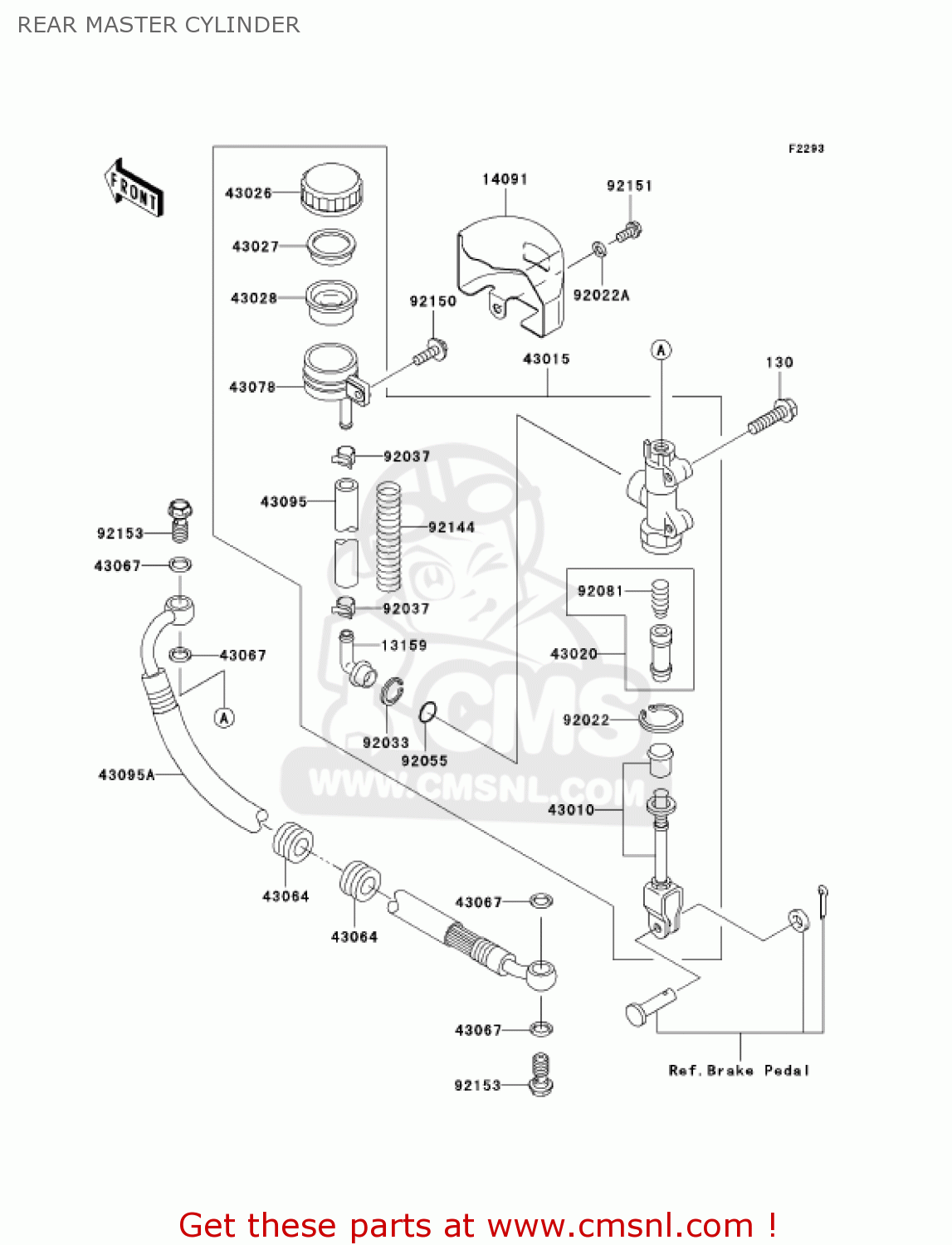

Rear master cylinder diagram VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA

REAR MASTER CYLINDER VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0830
ref: 130
BOLT-FLANGED,8X30
130J0830
€ 2.50
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
14091
140911300
ref: 14091
COVER,RESERVOIR TANK
€ 69.00
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43015
430151647
ref: 43015
CYLINDER-ASSY-MASTER,
€ 361.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43064
43064006
ref: 43064
GROMMET,BRAKE HOSE
43064006
€ 2.50
43067
43067001
ref: 43067
WASHER,10.5X15X1.5
43067001
€ 1.50
43078
430781165
ref: 43078
RESERVOIR,RR MASTER C
430781165
€ 20.00
43095
430951148
ref: 43095
HOSE-BRAKE,RR MASTER
€ 23.00
43095A
430951168
ref: 43095A
HOSE-BRAKE,RR
€ 144.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
92022183
€ 2.50
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
92144
921441513
ref: 92144
SPRING,PROTECTOR
921441513
€ 9.50
92150
921501633
ref: 92150
BOLT,FLANGED,6X20
921501633
€ 2.50
92151
921511401
ref: 92151
BOLT,FLANGED,6X12
€ 1.00
92153
921530627
ref: 92153
BOLT,OIL,L=23
921530627
€ 3.50
