GEAR CHANGE MECHANISM

VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA

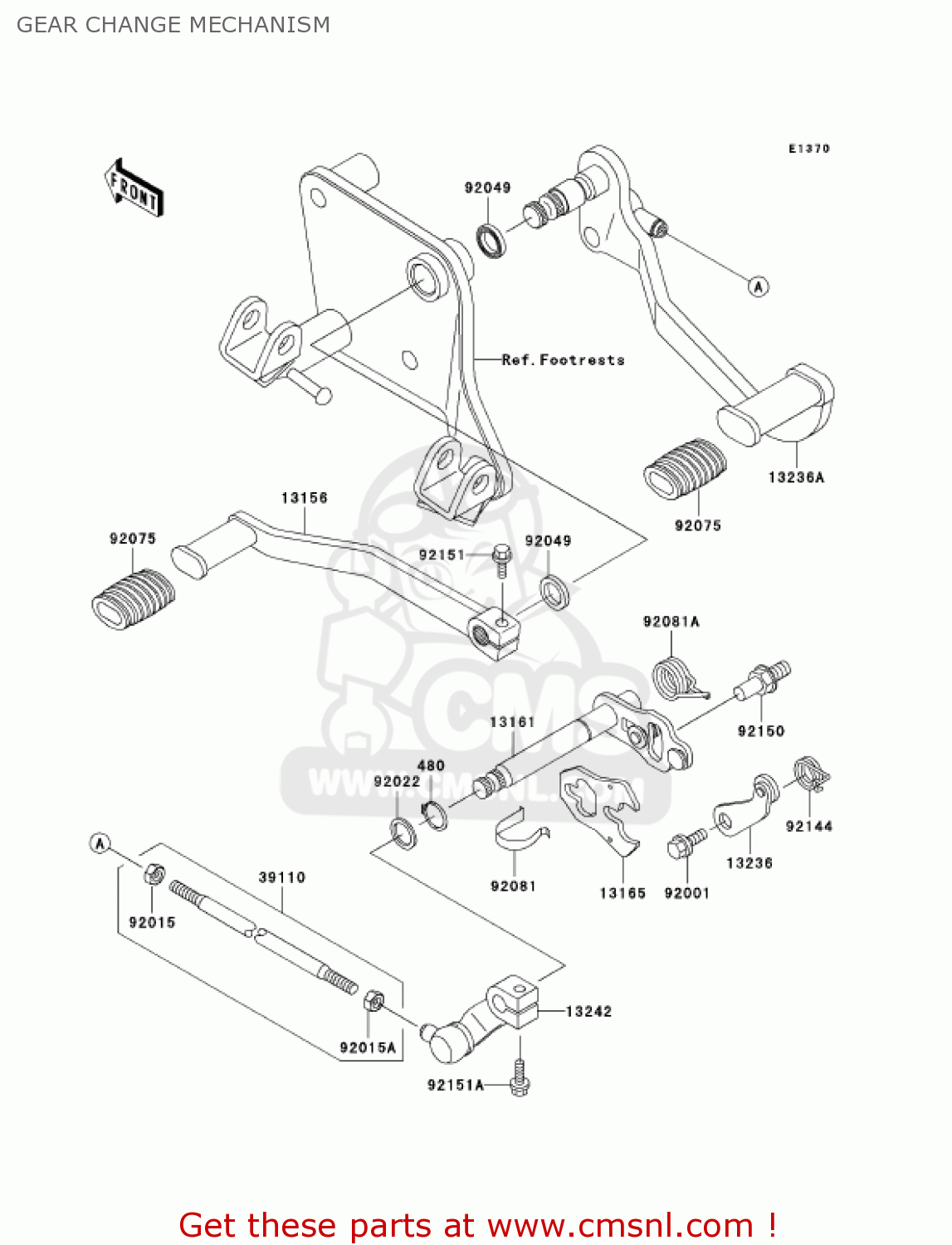

Gear change mechanism diagram VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA

GEAR CHANGE MECHANISM VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
GEAR CHANGE MECHANISM VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
480J1300
480J1300
ref: 480J1300
CIRCLIP-TYPE-C,13MM
480J1300
€ 2.50
13156
131561464
ref: 13156
LEVER-CHANGE,PEDAL
131561464
€ 68.00
13161
131611218
ref: 13161
LEVER-COMP-CHANGE SHA
€ 57.00
13165
131651151
ref: 13165
PAWL,CHANGE LEVER
131651151
€ 9.50
13236
132361126
ref: 13236
LEVER-COMP,POSITION
132361126
€ 9.00
13236
132361364
ref: 13236
LEVER-COMP,CHANGE
€ 57.00
13242
132421290
ref: 13242
LEVER-ASSY-CHANGE
132421290
€ 38.50
39110
391101127
ref: 39110
ROD-ASSY-TIE
€ 15.00
92001
920011715
ref: 92001
BOLT
920011715
€ 7.00
92015
920151443
ref: 92015
NUT
920151443
€ 2.50
92015
920151444
ref: 92015
NUT
920151444
€ 3.00
92022
920221224
ref: 92022
WASHER,13.2X20X0.5
920221224
€ 2.50
92049
920491398
ref: 92049
SEAL-OIL,VB13193
920491398
€ 4.00
92075
920751585
ref: 92075
DAMPER
920751585
€ 6.50
92081
920811829
ref: 92081
SPRING,CHANGE LEVER
920811829
€ 6.00
92081
920811869
ref: 92081
SPRING,CHANGE PEDAL R
920811869
€ 7.00
92144
921441850
ref: 92144
SPRING,LEVER
921441850
€ 2.00
92150
921501869
ref: 92150
BOLT,RETURN SPRING
€ 7.00
92151
921511226
ref: 92151
BOLT,6X20
921511226
€ 1.50
92151
921511450
ref: 92151
BOLT,6X20
921511450
€ 1.50
