IGNITION SWITCH/LOCKS/REFLECTORS

VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA

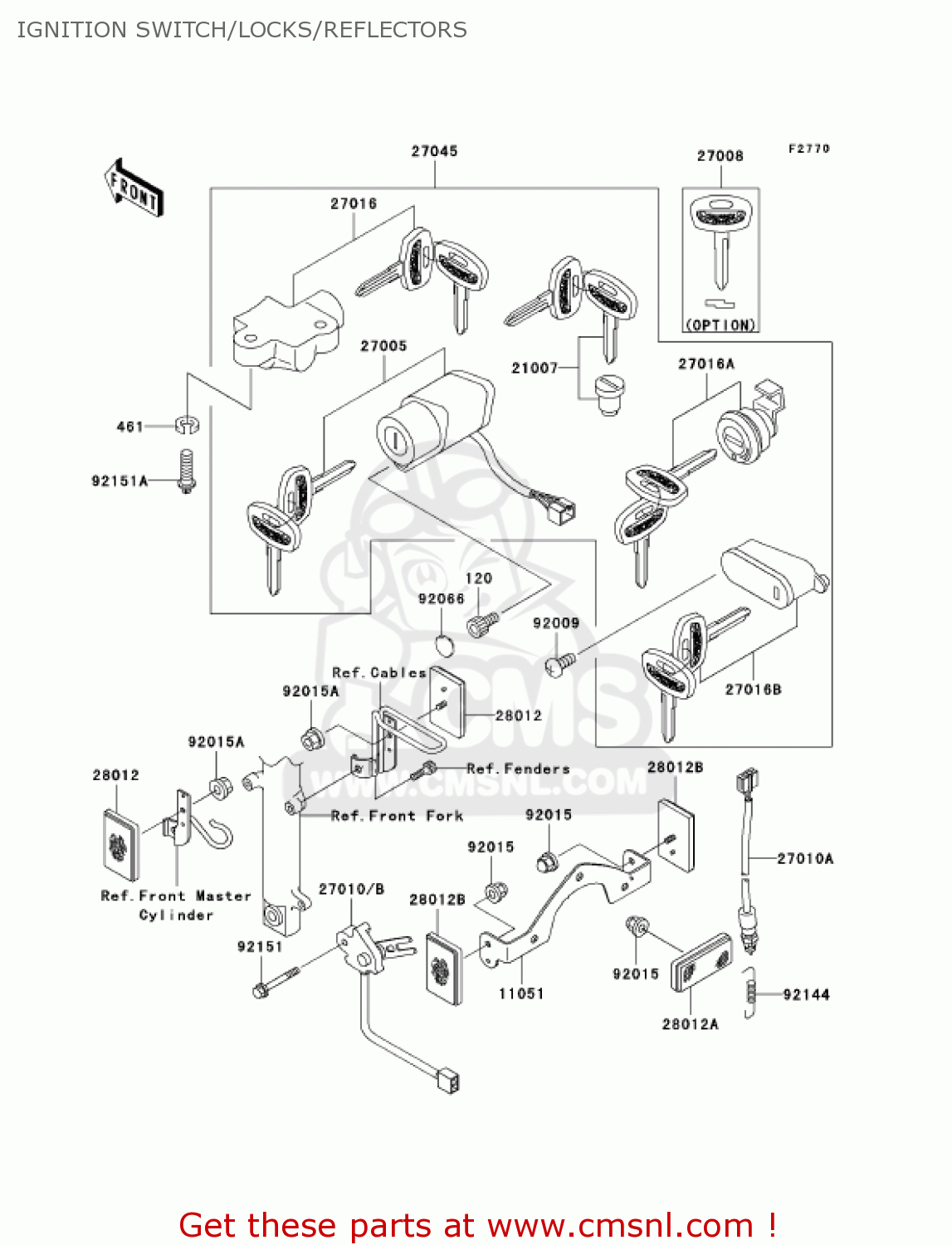

Ignition switch/locks/reflectors diagram VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA

IGNITION SWITCH/LOCKS/REFLECTORS VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
IGNITION SWITCH/LOCKS/REFLECTORS VN800E3 VULCAN 800 DRIFTER 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120P0512
ref: 120
BOLT,ALLEN,5X12
€ 1.00
461
461L0600
ref: 461
WASHER-SPRING
€ 0.50
11051
110511100
ref: 11051
REFLECTOR BRACKET
€ 7.50
21007
210075047
ref: 21007
SWITCH-ASSY,TANK CAP
€ 50.50
27005
270051257
ref: 27005
SWITCH-ASSY-IGNITION
€ 146.00
27008
270081208
ref: 27008
(OPTION)
KEY-LOCK,BLANK
270081208
€ 19.50
27010A
270101412
ref: 27010A
SWITCH,REAR BRAKE
270101412
€ 26.50
27010B
270101466
ref: 27010B
SWITCH,SIDE STAND
270101466
€ 61.50
27016
270165269
ref: 27016
LOCK-ASSY,STEERING
270165269
€ 52.50
27016A
270165275
ref: 27016A
LOCK-ASSY,LID
€ 53.50
27016B
270165276
ref: 27016B
LOCK-ASSY,HELMET
€ 58.00
27045
270455129
ref: 27045
SWITCH-ASSY
€ 246.00
28012
280121009
ref: 28012
REFLECTOR-REFLEX,FR
280121009
€ 16.00
28012A
280121077
ref: 28012A
REFLECTOR-REFLEX
280121077
€ 16.00
28012B
280121088
ref: 28012B
REFLECTOR-REFLEX
280121088
€ 15.00
92009
920091296
ref: 92009
SCREW,5X12
920091296
€ 2.50
92015
920151263
ref: 92015
NUT,LOCK 5MM
920151263
€ 4.50
92015A
920151656
ref: 92015A
NUT,FLANGED,5MM
920151656
€ 2.00
92066
920661435
ref: 92066
PLUG
920661435
€ 2.00
92144
921441141
ref: 92144
SPRING,REAR BRAKE SWI
921441141
€ 3.50
92151
921511576
ref: 92151
BOLT,6X45
€ 1.50
92151A
921511946
ref: 92151A
BOLT,TORX,6X22
921511946
€ 2.50
