TURN SIGNALS

VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST

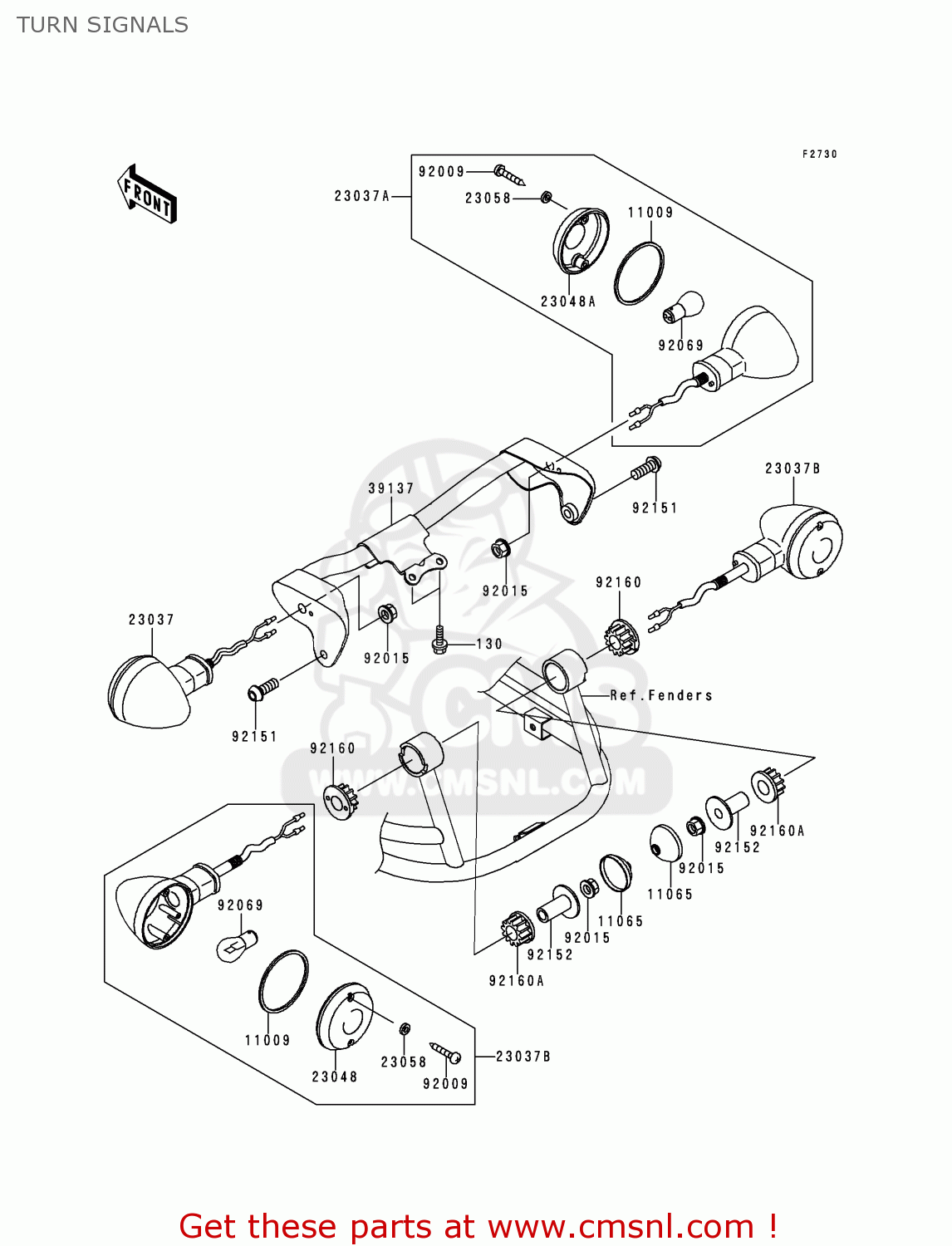

Turn signals diagram VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

11009

110091413
ref: 11009

GASKET,SIGNAL LAMP (NAS)

€ 3.00

11065

110651115
ref: 11065

CAP,REAR SIGNAL LAMP

€ 3.00

23037

230371363
ref: 23037

LAMP-ASSY-SIGNAL,FR,L

€ 50.50

23037A

230371364
ref: 23037A

LAMP-ASSY-SIGNAL,FR,R

€ 50.50

23037B

230371365
ref: 23037B

LAMP-ASSY-SIGNAL,RR

€ 62.50

23048

230481065
ref: 23048

LENS-SIGNAL LAMP

€ 12.00

23048A

230481066
ref: 23048A

LENS-SIGNAL LAMP

€ 12.00

23058

23058002
ref: 23058

WASHER,PLAIN,4MM

€ 2.00

39137

391371072
ref: 39137

STAY-COMP,SIGNAL LAMP

€ 68.00

92009

920091637
ref: 92009

SCREW,TAPPING,4X25

€ 2.50

92015

920151428
ref: 92015

NUT,FLANGED,10MM

€ 3.00

92069

ref: 92069

92151

921511327
ref: 92151

BOLT,SOCKET,8X25

€ 2.50

92152

921521202
ref: 92152

COLLAR,REAR SIGNAL LA

€ 10.50

92160

921601966
ref: 92160

DAMPER

€ 6.50

92160A

921601967
ref: 92160A

DAMPER

€ 6.50

TURN SIGNALS

all assemblies
