TAILLIGHT(S)

VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST

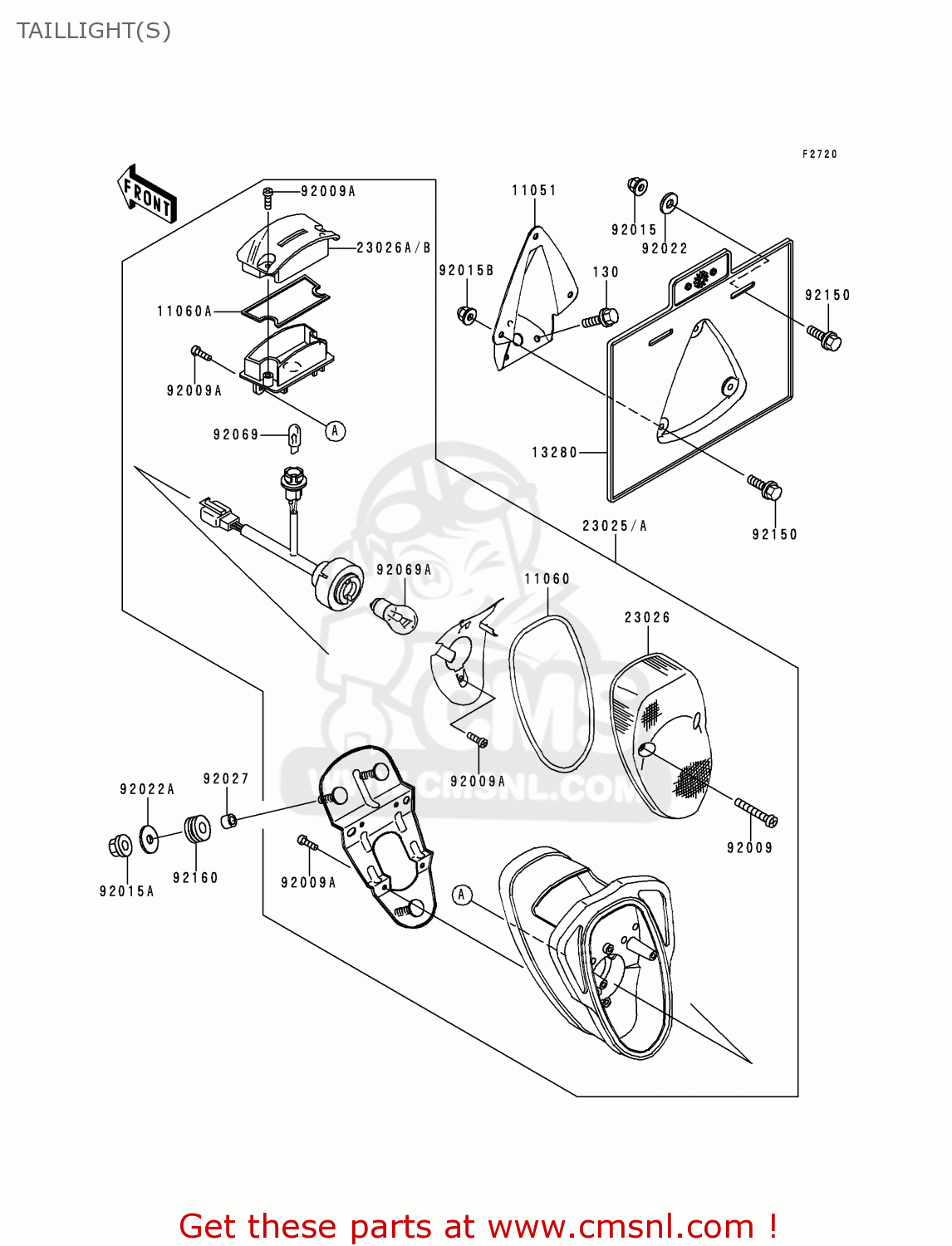

Taillight(s) diagram VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST

TAILLIGHT(S) VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST
TAILLIGHT(S) VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST
TAILLIGHT(S) VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0612
ref: 130
BOLT-FLANGED,6X12,BLA
130J0612
€ 1.50
11051
110511283
ref: 11051
BRACKET,LICENSE HOLDE
€ 30.50
11060
110601884
ref: 11060
GASKET,TAIL LAMP (NAS)
110601884
€ 6.50
11060A
110601939
ref: 11060A
GASKET,LICENSE LENS (NAS)
110601939
€ 2.00
13280
132801106
ref: 13280
HOLDER,LICENSE PLATE
€ 23.50
23025
230251281
ref: 23025
LAMP-TAIL
€ 261.00
23026
230261220
ref: 23026
LENS,TAIL
230261220
€ 47.50
23026A
230261221
ref: 23026A
LENS,LICENSE
€ 11.00
92009
920091378
ref: 92009
SCREW,TAPPING,4X20
920091378
€ 2.50
92009A
920091381
ref: 92009A
SCREW,TAPPING,4X12
920091381
€ 2.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
920151170
€ 0.50
92015A
920151367
ref: 92015A
NUT,FLANGED,6MM
920151367
€ 0.50
92015B
920151385
ref: 92015B
NUT,CAP,6MM
920151385
€ 2.50
92022
920221346
ref: 92022
WASHER,6.5X20X1.6,BLA
920221346
€ 0.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
920221557
€ 1.00
92027
92027162
ref: 92027
COLLAR-REAR FENDER
92027162
€ 4.50
92069
920691016
ref: 92069
BULB,12V 5W
920691016
€ 4.00
92069A
920691084
ref: 92069A
BULB,12V 21/5W
920691084
€ 6.00
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92160
921601162
ref: 92160
DAMPER
921601162
€ 3.00
