RADIATOR

VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST

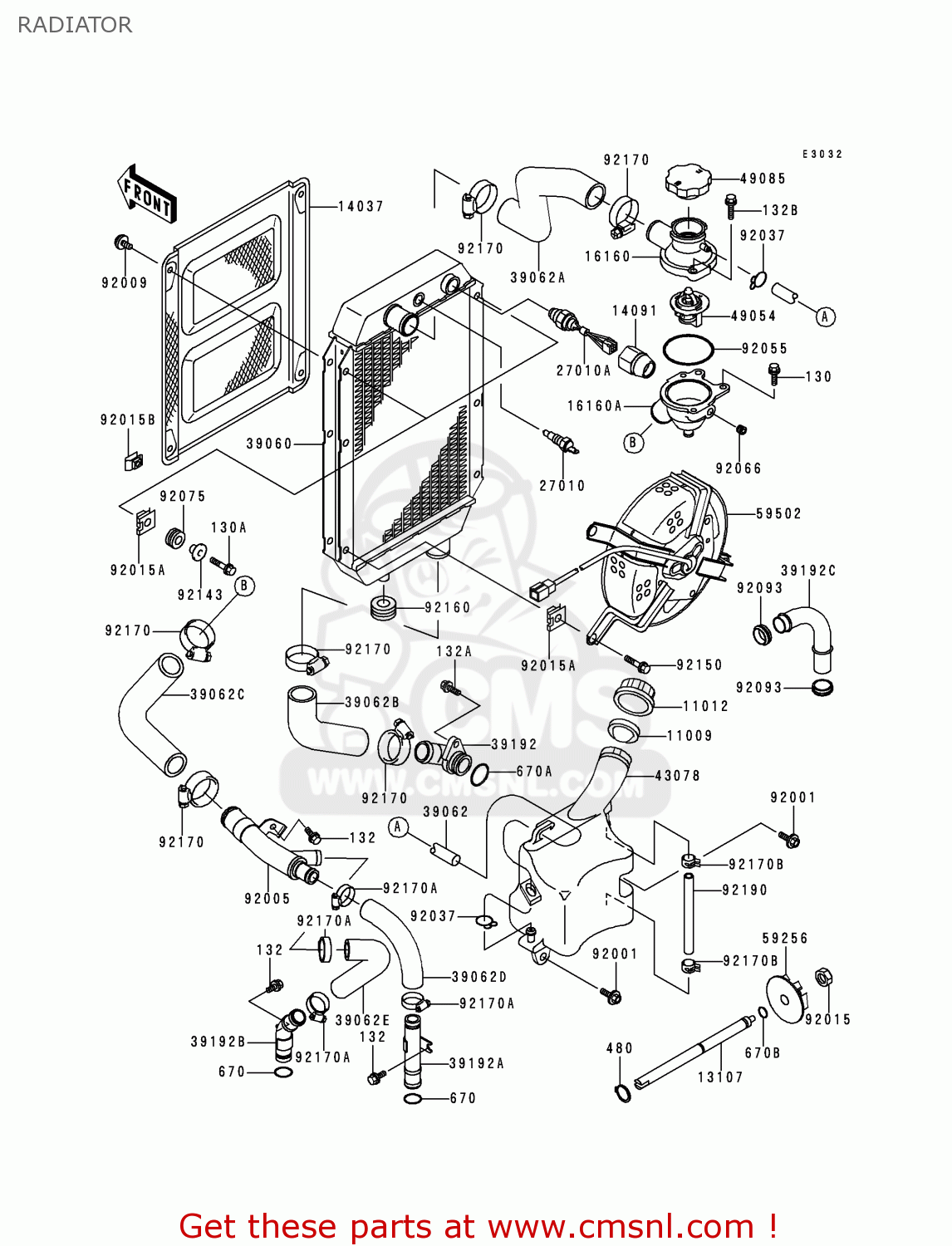

Radiator diagram VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST

RADIATOR VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST
RADIATOR VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST
RADIATOR VN800C1 VN800 DRIFTER 1999 EURO UK FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11012
110121084
ref: 11012
CAP
110121084
€ 1.50
13107
131071155
ref: 13107
SHAFT,IMPELLER
131071155
€ 35.00
14037
140371200
ref: 14037
SCREEN,RADIATOR
140371200
€ 58.50
14091
140911094
ref: 14091
COVER
€ 5.00
16160
161601152
ref: 16160
BODY,UPP
€ 57.00
16160A
161601242
ref: 16160A
BODY
€ 48.00
27010
270101305
ref: 27010
SWITCH
270101305
€ 60.00
27010A
270101403
ref: 27010A
SWITCH,THERMOSTAT
270101403
€ 61.50
39060
390601164
ref: 39060
RADIATOR
€ 512.50
39062
390621124
ref: 39062
HOSE-COOLING, RESERVO
€ 17.50
39062A
390621646
ref: 39062A
HOSE-COOLING,THERMO-R
390621646
€ 27.50
39062B
390621647
ref: 39062B
HOSE-COOLING,RADIATOR
390621647
€ 13.50
39062C
390621648
ref: 39062C
HOSE-COOLING,THERMO-F
390621648
€ 15.50
39062D
390621649
ref: 39062D
HOSE-COOLING,HEAD,RR-
390621649
€ 9.50
39062E
390621650
ref: 39062E
HOSE-COOLING,HEAD,FR-
390621650
€ 11.00
39192
391921078
ref: 39192
PIPE-WATER,INLET
391921078
€ 34.50
39192A
391921079
ref: 39192A
PIPE-WATER,HEAD,RR
391921079
€ 21.00
39192B
391921080
ref: 39192B
PIPE-WATER,HEAD,FR
391921080
€ 23.00
39192C
391921106
ref: 39192C
PIPE-WATER,OUTLET
€ 20.50
43078
430781149
ref: 43078
RESERVOIR
430781149
€ 45.50
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
490851067
€ 39.50
59256
592561058
ref: 59256
IMPELLER
592561058
€ 32.00
59502
595021132
ref: 59502
FAN-ASSY
€ 622.00
92001
920011950
ref: 92001
BOLT,6X16
920011950
€ 2.50
92005
920051281
ref: 92005
FITTING
€ 41.00
92009
920091261
ref: 92009
SCREW,TAPPING,6MM
920091261
€ 2.00
92015
920151191
ref: 92015
NUT,LOCK,6MM,BLACK
920151191
€ 2.00
92015A
920151487
ref: 92015A
NUT
920151487
€ 3.00
92015B
920151758
ref: 92015B
NUT
920151758
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92066
920661227
ref: 92066
PLUG,OIL LINE,1/8X7
920661227
€ 4.00
92075
920751901
ref: 92075
DAMPER
920751901
€ 2.00
92093
920931427
ref: 92093
SEAL
920931427
€ 3.00
92143
921431353
ref: 92143
COLLAR
921431353
€ 5.50
92150
921501186
ref: 92150
BOLT
921501186
€ 3.00
92160
921601007
ref: 92160
DAMPER
921601007
€ 3.50
92170
921701284
ref: 92170
CLAMP,CABLE
921701284
€ 7.50
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
130J0625
€ 2.00
132
132J0612
ref: 132
BOLT-FLANGED-SMALL
132J0612
€ 2.50
132A
132J0618
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
132B
132J0620
ref: 132B
BOLT-FLANGED-SMALL
132J0620
€ 2.00
480
480J1200
ref: 480
CIRCLIP-TYPE-C,12MM
480J1200
€ 0.50
670
670B2014
ref: 670
O RING,14MM
670B2014
€ 1.00
670A
670B2021
ref: 670A
O RING,21MM
670B2021
€ 3.00
670B
670D1509
ref: 670B
O RING,9MM
670D1509
€ 3.00
92170A
921701285
ref: 92170A
CLAMP,COOLING HOSE
921701285
€ 13.00
92170B
921701493
ref: 92170B
CLAMP
921701493
€ 3.00
92190
921901603
ref: 92190
TUBE,7X10X106
921901603
€ 2.50
