STAND(S)

VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

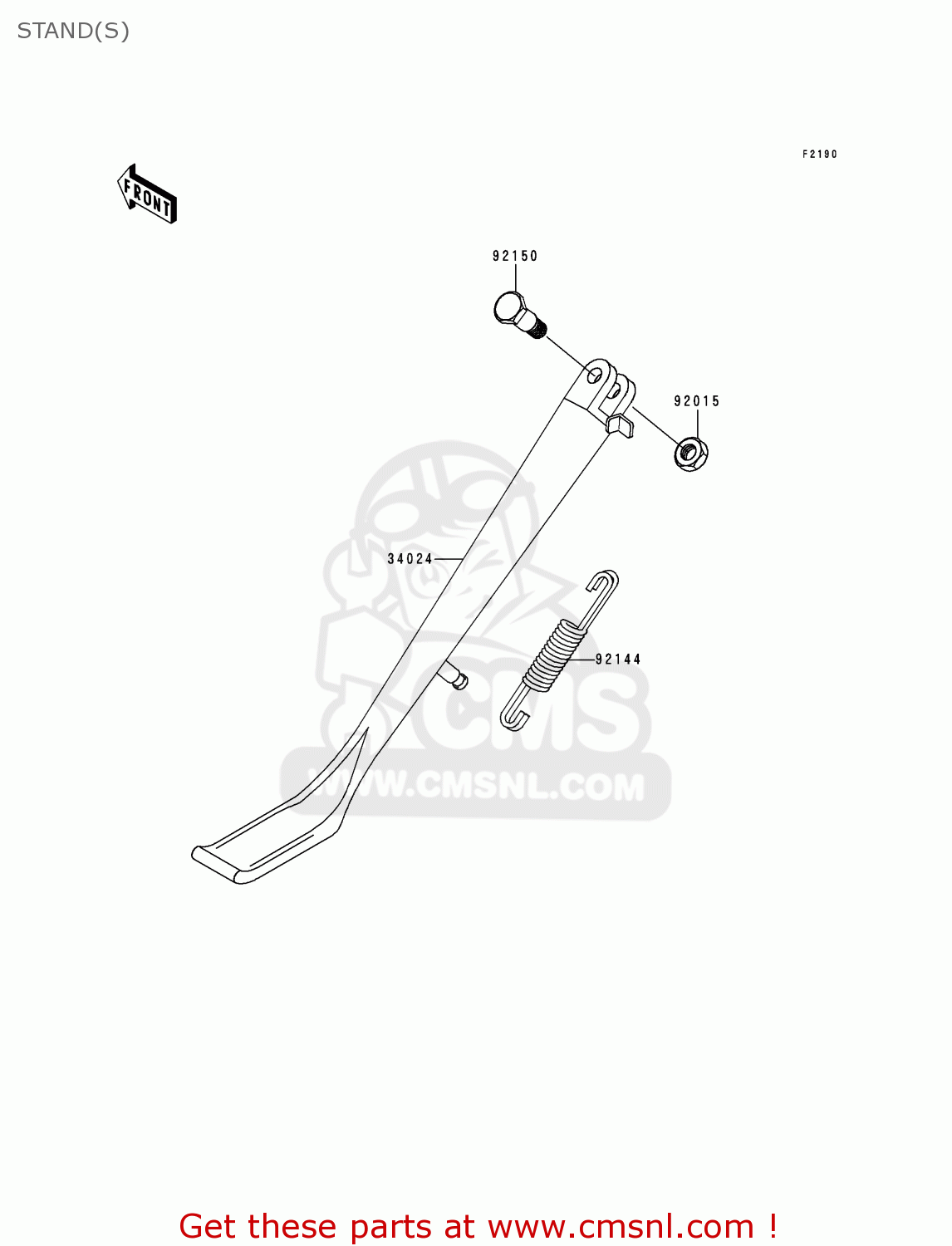

Stand(s) diagram VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

STAND(S) VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

STAND(S) VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

34024

340241320
ref: 34024

STAND-SIDE

€ 74.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92144

921441861
ref: 92144

SPRING,SIDE STAND

€ 9.50

92150

921501941
ref: 92150

BOLT,SIDE STAND

€ 4.00
