CAMSHAFT(S)/TENSIONER

VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

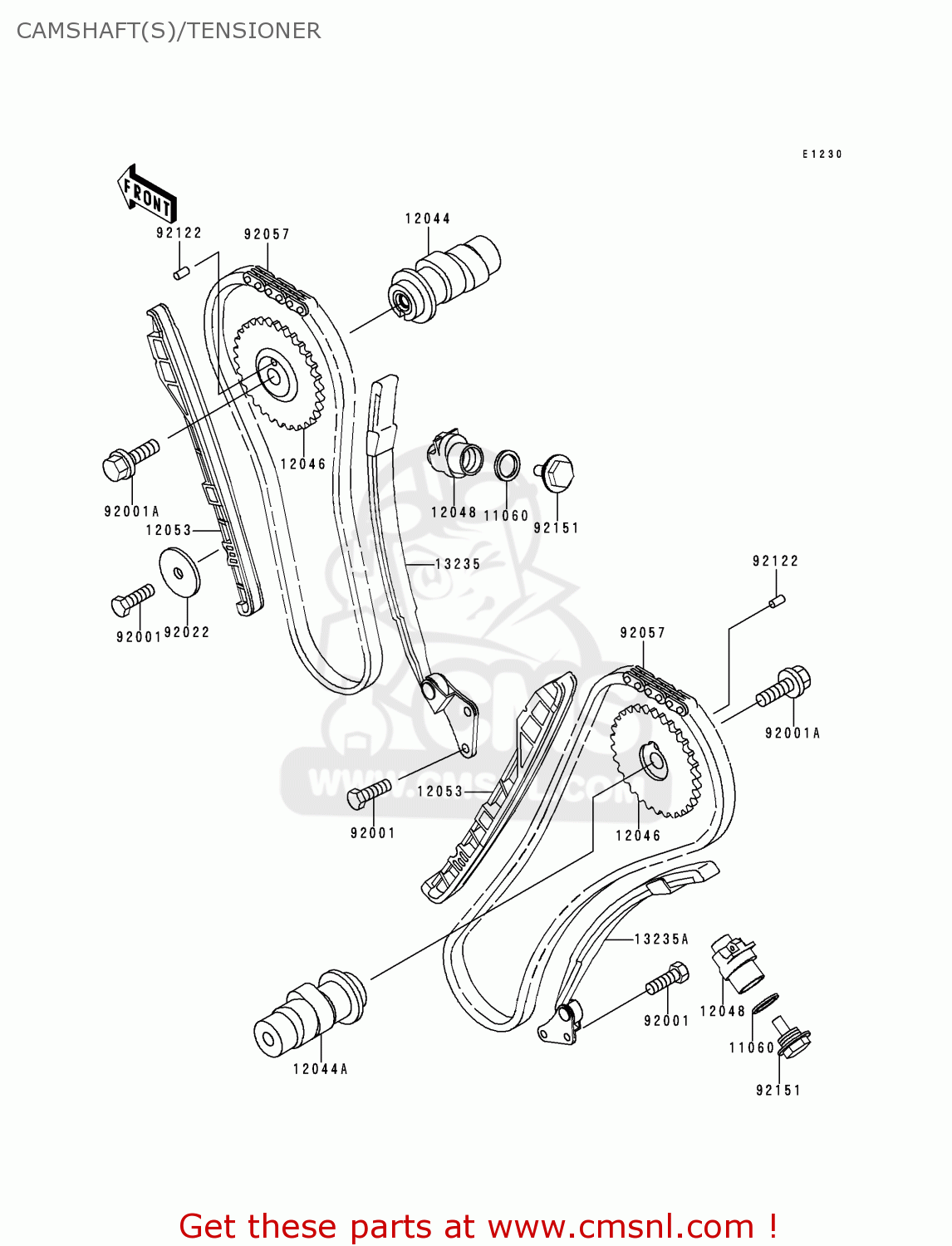

Camshaft(s)/tensioner diagram VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

11060

110601682
ref: 11060

GASKET,TENSIONER (NAS)

€ 2.50

12044

120441377
ref: 12044

CAMSHAFT-VALVE,FR

€ 137.50

12044A

120441378
ref: 12044A

CAMSHAFT-VALVE,RR

€ 137.50

12046

120461171
ref: 12046

SPROCKET

€ 45.50

12048

120481145
ref: 12048

TENSIONER-ASSY

€ 93.50

12053

120531354
ref: 12053

GUIDE-CHAIN

€ 43.00

13235

132351067
ref: 13235

GUIDE-COMP,FR

€ 81.00

13235A

132351068
ref: 13235A

GUIDE-COMP,RR

€ 81.00

92001

920011457
ref: 92001

BOLT,EXCLUSIVE MASS P

€ 3.00

92001A

920011859
ref: 92001A

BOLT,10X23

€ 6.50

92022

92022227
ref: 92022

WASHER-PLAIN,7MM

€ 3.00

92057

920571403
ref: 92057

CHAIN,CAM

€ 34.00

92122

921221197
ref: 92122

ROLLER

€ 2.50

92151

921511136
ref: 92151

BOLT,TENSIONER

€ 10.00

CAMSHAFT(S)/TENSIONER

all assemblies
