HANDLEBAR(VN800-B2∼B4)

VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

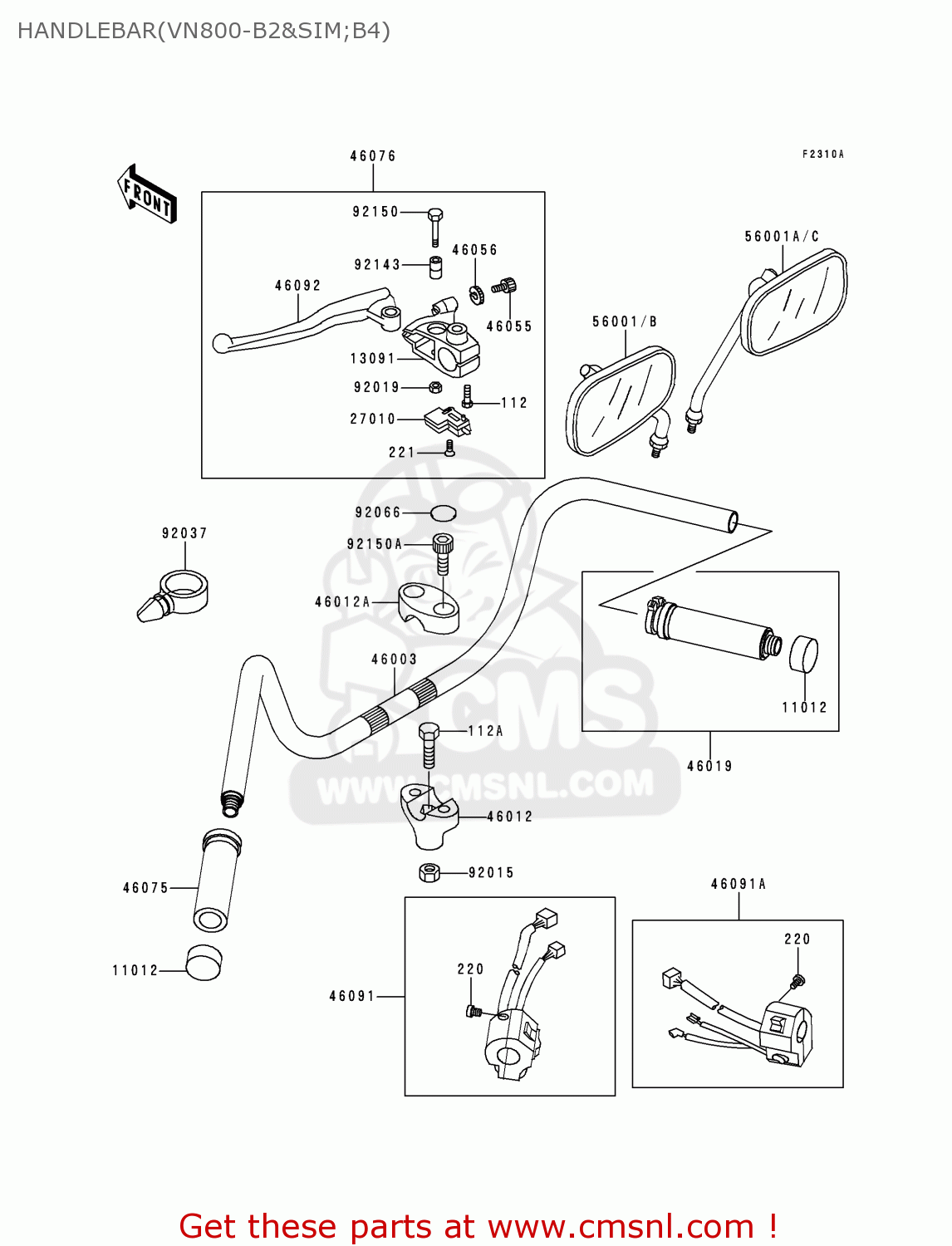

Handlebar(vn800-b2∼b4) diagram VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST

HANDLEBAR(VN800-B2∼B4) VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST
HANDLEBAR(VN800-B2∼B4) VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST
HANDLEBAR(VN800-B2∼B4) VN800B2 VN800 CLASSIC 1997 EU UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
112
112G0620
ref: 112
BOLT 6X20
112G0620
€ 1.00
112A
112H1065
ref: 112A
BOLT-UPSET,10X65
112H1065
€ 5.00
220
220E0516
ref: 220
SCREW-PAN-CROS
220E0516
€ 2.50
221
221B0320
ref: 221
SCREW-CSK-CROS,3X20
221B0320
€ 3.50
11012
110121975
ref: 11012
CAP,GRIP END
110121975
€ 14.00
13091
130911671
ref: 13091
HOLDER,CLUTCH LEVER
130911671
€ 41.50
27010
270101268
ref: 27010
SWITCH,CLUTCH
270101268
€ 20.50
46003
460031458
ref: 46003
HANDLE
460031458
€ 110.00
46012
460121272
ref: 46012
HOLDER-HANDLE,LWR
€ 84.50
46012A
460121273
ref: 46012A
HOLDER-HANDLE,UPP
460121273
€ 50.00
46019
460191086
ref: 46019
GRIP-ASSY,THROTTLE
€ 51.50
46055
46055003
ref: 46055
SCREW-CABLE ADJUST
46055003
€ 11.50
46056
46056005
ref: 46056
NUT-LOCK
46056005
€ 6.00
46075
460751074
ref: 46075
GRIP,LH
460751074
€ 20.50
46076
460761174
ref: 46076
LEVER-ASSY-GRIP,CLUTC
460761174
€ 99.00
46091
460911638
ref: 46091
HOUSING-ASSY-CONTROL,
460911638
€ 224.00
46091A
460911639
ref: 46091A
HOUSING-ASSY-CONTROL,
460911639
€ 166.00
46092
460921164
ref: 46092
LEVER-GRIP,CLUTCH
460921164
€ 22.50
56001
560011451
ref: 56001
ARFGGRST
MIRROR-ASSY,LH
560011451
€ 81.50
56001A
560011452
ref: 56001A
ARFGGRST
MIRROR-ASSY,RH
560011452
€ 81.50
56001B
560011453
ref: 56001B
EUFRITNRSDSPUK
MIRROR-ASSY,LH
560011453
€ 77.50
56001C
560011454
ref: 56001C
EUFRITNRSDSPUK
MIRROR-ASSY,RH
560011454
€ 77.50
92015
920151717
ref: 92015
NUT,LOCK,FLANGED,10MM
920151717
€ 6.50
92019
92019008
ref: 92019
NUT-LOCK,6MM
92019008
€ 3.00
92037
920371827
ref: 92037
CLAMP,HOSE
920371827
€ 5.00
92066
920661285
ref: 92066
PLUG
920661285
€ 5.00
92143
921431351
ref: 92143
COLLAR
921431351
€ 12.50
92150
921501330
ref: 92150
BOLT,LEVER SET
921501330
€ 9.00
92150A
921501942
ref: 92150A
BOLT,SOCKET,10X23
921501942
€ 4.50
