VALVE(S)

VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

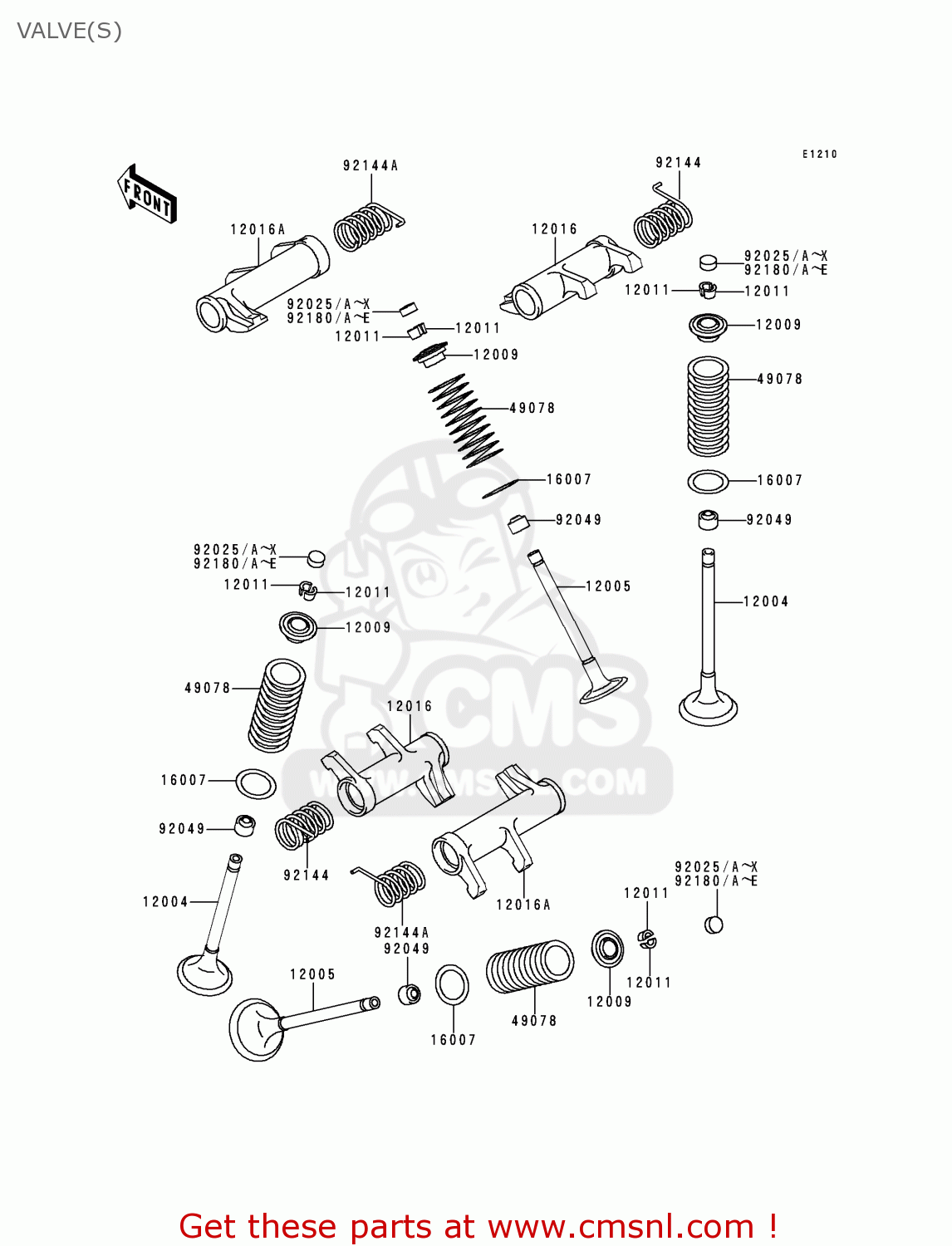

Valve(s) diagram VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

VALVE(S) VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP
VALVE(S) VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP
VALVE(S) VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
12004
120041121
ref: 12004
VALVE-INTAKE
120041121
€ 42.00
12005
120051225
ref: 12005
VALVE-EXHAUST
120051225
€ 70.00
12009
120091058
ref: 12009
RETAINER-VALVE SPRING
120091058
€ 8.00
12011
120111051
ref: 12011
COLLET
120111051
€ 1.50
12016
120161093
ref: 12016
ARM-ROCKER,INTAKE
120161093
€ 97.00
12016A
120161094
ref: 12016A
ARM-ROCKER,EXHAUST
120161094
€ 97.00
16007
160071178
ref: 16007
SEAT-SPRING,17.5X23.8
160071178
€ 4.00
49078
490781090
ref: 49078
SPRING-ENGINE VALVE,I
490781090
€ 10.00
92025
920251870
ref: 92025
SHIM,T=2.00
920251870
€ 10.50
92025A
920251871
ref: 92025A
SHIM,T=2.05
920251871
€ 10.50
92025B
920251872
ref: 92025B
SHIM,T=2.10
920251872
€ 10.50
92025C
920251873
ref: 92025C
SHIM,T=2.15
920251873
€ 10.50
92025D
920251874
ref: 92025D
SHIM,T=2.20
920251874
€ 10.50
92025E
920251875
ref: 92025E
SHIM,T=2.25
920251875
€ 10.50
92025F
920251876
ref: 92025F
SHIM,T=2.30
920251876
€ 10.50
92025G
920251877
ref: 92025G
SHIM,T=2.35
920251877
€ 10.50
92025H
920251878
ref: 92025H
SHIM,T=2.40
920251878
€ 10.50
92025I
920251879
ref: 92025I
SHIM,T=2.45
920251879
€ 10.50
92025J
920251880
ref: 92025J
SHIM,T=2.50
920251880
€ 10.50
92025K
920251881
ref: 92025K
SHIM,T=2.55
920251881
€ 10.50
92025L
920251882
ref: 92025L
SHIM,T=2.60
920251882
€ 10.50
92025M
920251883
ref: 92025M
SHIM,T=2.65
920251883
€ 10.50
92025N
920251884
ref: 92025N
SHIM,T=2.70
920251884
€ 10.50
92025O
920251885
ref: 92025O
SHIM,T=2.75
920251885
€ 10.50
92025P
920251886
ref: 92025P
SHIM,T=2.80
920251886
€ 10.50
92025Q
920251887
ref: 92025Q
SHIM,T=2.85
920251887
€ 10.50
92025R
920251888
ref: 92025R
SHIM,T=2.90
920251888
€ 10.50
92025S
920251889
ref: 92025S
SHIM,T=2.95
920251889
€ 10.50
92025T
920251890
ref: 92025T
SHIM,T=3.00
920251890
€ 10.50
92025U
920251982
ref: 92025U
SHIM,T=2.425
920251982
€ 10.50
92025V
920251983
ref: 92025V
SHIM,T=2.475
920251983
€ 10.50
92025W
920251984
ref: 92025W
SHIM,T=2.525
920251984
€ 10.50
92025X
920251985
ref: 92025X
SHIM,T=2.575
920251985
€ 10.50
92049
920491218
ref: 92049
SEAL-OIL,VSB58.558
920491218
€ 3.50
92144
921441899
ref: 92144
SPRING,ROCKER ARM,INT
€ 1.50
92144A
921441900
ref: 92144A
SPRING,ROCKER ARM,EXH
921441900
€ 1.50
92180
921801208
ref: 92180
SHIM,T=1.95
921801208
€ 13.50
92180A
921801209
ref: 92180A
SHIM,T=1.90
921801209
€ 13.50
92180B
921801210
ref: 92180B
SHIM,T=1.85
921801210
€ 13.50
92180C
921801211
ref: 92180C
SHIM,T=1.80
921801211
€ 13.50
92180D
921801212
ref: 92180D
SHIM,T=1.75
921801212
€ 13.50
92180E
921801213
ref: 92180E
SHIM,T=1.70
921801213
€ 13.50
