CRANKCASE BOLT PATTERN

VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

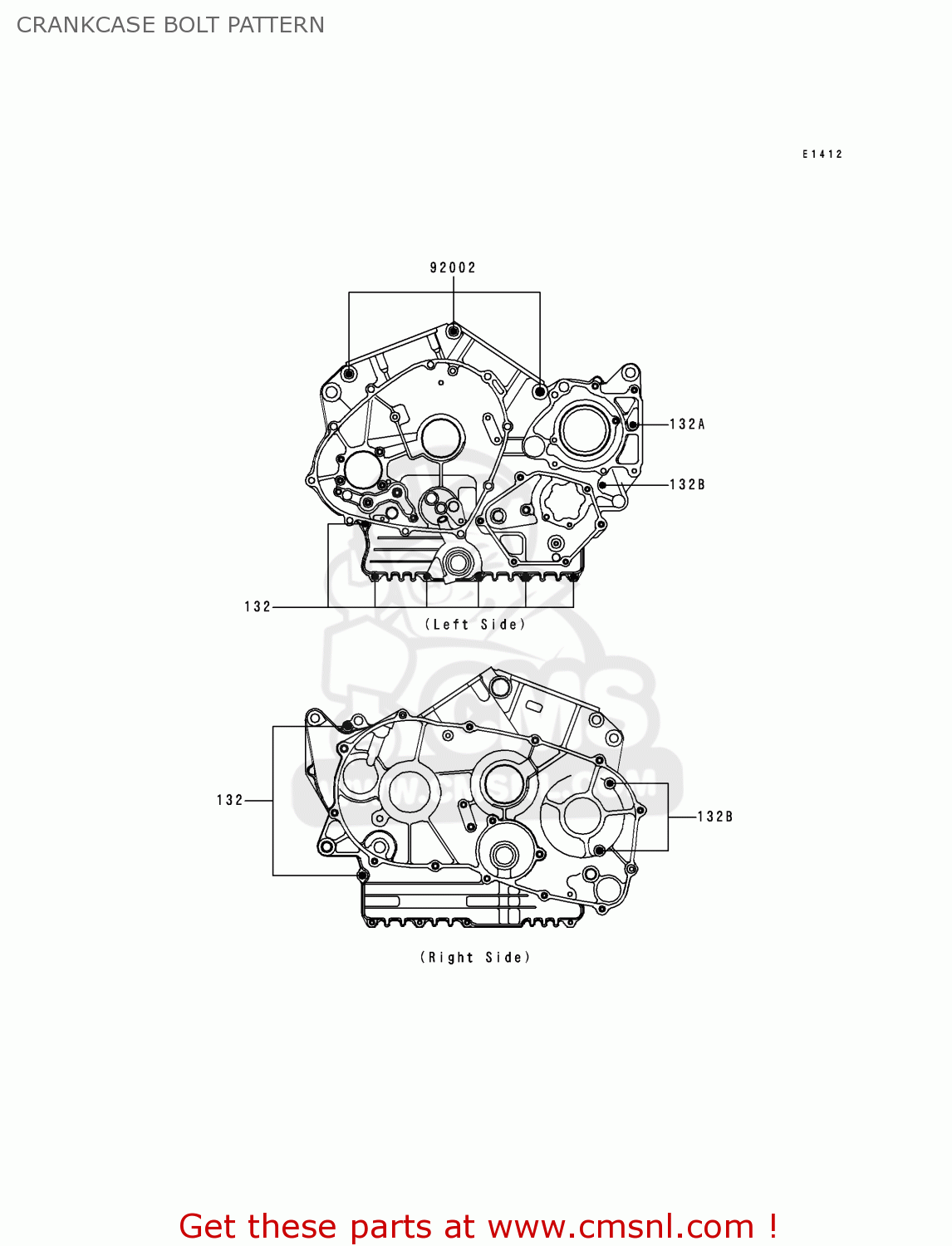

Crankcase bolt pattern diagram VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

CRANKCASE BOLT PATTERN VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

CRANKCASE BOLT PATTERN VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

prices are in EUR

ref

part #

description

quantity

132

132J0630
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

132A

132J0640
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132J0660
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50

92002

920021542
ref: 92002

BOLT,10X80

€ 6.50
