AIR CLEANER

VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

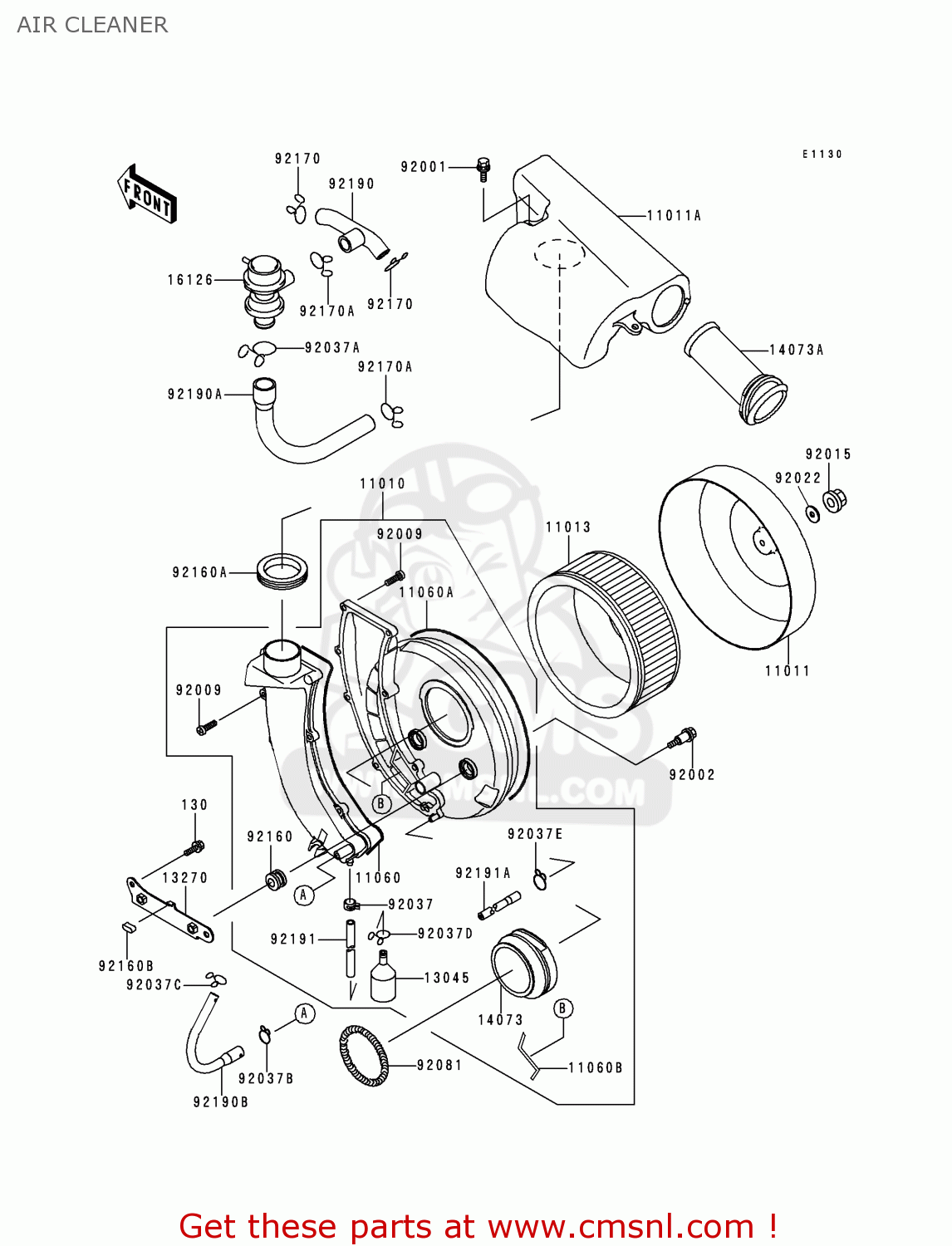

Air cleaner diagram VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP

AIR CLEANER VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP
AIR CLEANER VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP
AIR CLEANER VN800B1 VN800 CLASSIC 1996 EUROPE UK FR AR FG GR IT NR SD SP
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
11010
110101597
ref: 11010
FILTER-ASSY-AIR
€ 142.50
11011
110111453
ref: 11011
CASE-AIR FILTER,COVER
110111453
€ 75.00
11011A
110111454
ref: 11011A
CASE-AIR FILTER,CHAMB
110111454
€ 79.50
11013
110131243
ref: 11013
ELEMENT-AIR FILTER
110131243
€ 43.50
11060
110601720
ref: 11060
GASKET,AIR FILTER (NAS)
€ 3.50
11060A
110601721
ref: 11060A
GASKET,AIR FILTER (NAS)
110601721
€ 6.00
11060B
110601748
ref: 11060B
GASKET (NAS)
€ 4.50
13045
130451057
ref: 13045
RECEIVER-OIL
130451057
€ 6.50
13270
132701388
ref: 13270
PLATE,AIR FILTER CASE
132701388
€ 10.50
14073
140731622
ref: 14073
DUCT,AIR FILTER
€ 13.00
14073A
140731623
ref: 14073A
DUCT,AIR FILTER CHAMB
140731623
€ 26.00
16126
161261289
ref: 16126
VALVE,AIR SWITCH
€ 136.00
92001
920011862
ref: 92001
BOLT,W/SP,6X14
920011862
€ 2.50
92002
920021595
ref: 92002
BOLT,HEAD COVER
920021595
€ 8.50
92009
920091399
ref: 92009
SCREW,TAPPING,5X20
920091399
€ 2.00
92015
920151385
ref: 92015
NUT,CAP,6MM
920151385
€ 2.50
92022
92022193
ref: 92022
WASHER,6.5X20X1.6,WHI
92022193
€ 3.50
92037
92037010
ref: 92037
CLAMP-FUEL PIPE
92037010
€ 2.50
92037A
920371076
ref: 92037A
CLAMP,TUBE
920371076
€ 4.00
92037B
920371271
ref: 92037B
CLAMP,FUEL TUBE
920371271
€ 2.00
92037C
92037147
ref: 92037C
CLAMP,CHAIN OILER
92037147
€ 4.50
92037D
920371712
ref: 92037D
CLAMP
920371712
€ 3.00
92037E
920373025
ref: 92037E
CLAMP,TUBE
920373025
€ 4.00
92081
920811638
ref: 92081
SPRING,DUCT
920811638
€ 6.50
92160
921601594
ref: 92160
DAMPER
921601594
€ 3.00
92160A
921601600
ref: 92160A
DAMPER
921601600
€ 4.50
92160B
921601605
ref: 92160B
DAMPER,PLATE
921601605
€ 2.00
92170
921701017
ref: 92170
CLAMP
921701017
€ 3.00
92170A
921701445
ref: 92170A
CLAMP,TUBE
921701445
€ 3.00
92190
921901600
ref: 92190
TUBE,AIR SWITCH-HEAD
921901600
€ 11.50
92190A
921901601
ref: 92190A
TUBE,AIR SWITCH-FILTE
921901601
€ 13.50
92190B
921901602
ref: 92190B
TUBE,BREATHER
921901602
€ 7.50
92191
921911111
ref: 92191
TUBE,6X9X345
921911111
€ 4.50
92191A
921911112
ref: 92191A
TUBE
€ 6.50
