Genuine VN Kawasaki Parts delivered quickly!


OIL PUMP/OIL FILTER

VN800A7 VULCAN 800 2001 USA CALIFORNIA

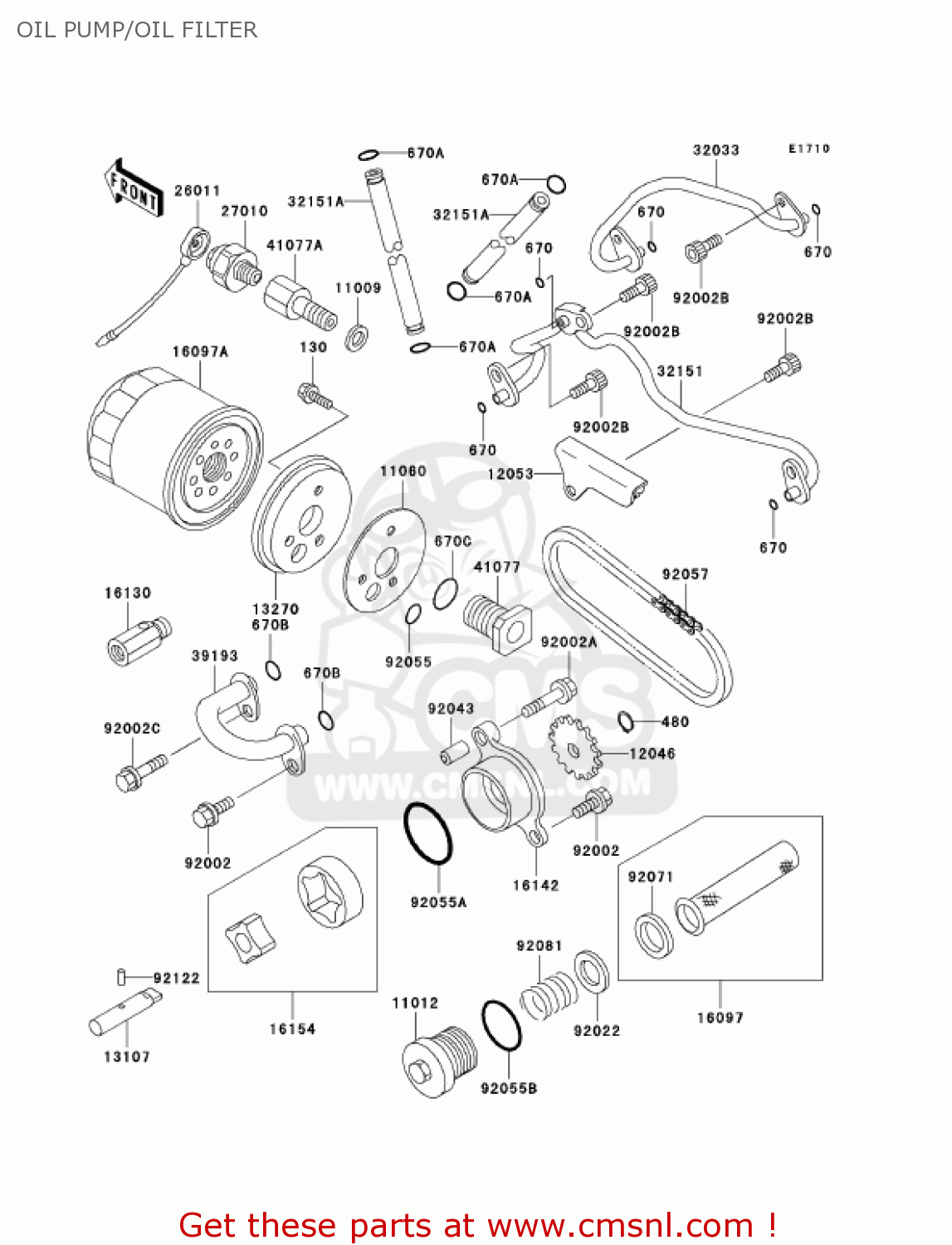

Oil pump/oil filter diagram VN800A7 VULCAN 800 2001 USA CALIFORNIA

OIL PUMP/OIL FILTER VN800A7 VULCAN 800 2001 USA CALIFORNIA
OIL PUMP/OIL FILTER VN800A7 VULCAN 800 2001 USA CALIFORNIA
OIL PUMP/OIL FILTER VN800A7 VULCAN 800 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130P0514
ref: 130
BOLT-FLANGED
130P0514
€ 2.50
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
480J1100
€ 0.50
670
670D1506
ref: 670
O RING,6MM
670D1506
€ 1.00
670A
670D1507
ref: 670A
O RING,7MM
670D1507
€ 1.00
670B
670D2012
ref: 670B
O RING,12MM
670D2012
€ 1.50
670C
670D2020
ref: 670C
O RING,20MM
670D2020
€ 4.00
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11012
110121461
ref: 11012
CAP,OIL FILTER
110121461
€ 32.00
11060
110601092
ref: 11060
GASKET,OIL FILTER (NAS)
110601092
€ 5.50
12046
120461079
ref: 12046
SPROCKET,OIL PUMP,19T
120461079
€ 16.00
12053
120531356
ref: 12053
GUIDE-CHAIN
120531356
€ 23.50
13107
131071131
ref: 13107
SHAFT,OIL PUMP
131071131
€ 18.50
13270
132701170
ref: 13270
PLATE,OIL FILTER
132701170
€ 19.50
16097
160971058
ref: 16097
FILTER-ASSY-OIL
160971058
€ 9.50
16097A
160971072
ref: 16097A
FILTER-ASSY-OIL
160971072
€ 10.50
16130
161301001
ref: 16130
VALVE-ASSY-RELIEF
161301001
€ 28.50
16142
161421061
ref: 16142
COVER-PUMP,OIL
161421061
€ 43.50
16154
161541056
ref: 16154
ROTOR-PUMP
161541056
€ 49.50
26011
260111626
ref: 26011
WIRE-LEAD
€ 12.00
27010
270101313
ref: 27010
SWITCH,OIL PRESSURE
270101313
€ 28.00
32033
320331742
ref: 32033
PIPE,OIL,FILTER-CRANK
€ 28.50
32151
321511894
ref: 32151
PIPE
€ 58.00
32151A
321511895
ref: 32151A
PIPE
€ 9.50
39193
391931021
ref: 39193
PIPE-OIL,PUMP-FILTER
€ 31.00
41077
410771052
ref: 41077
ADAPTER,OIL FILTER
410771052
€ 23.50
41077A
410771084
ref: 41077A
ADAPTER,PRESSURE SWIT
410771084
€ 9.00
92002
920021439
ref: 92002
BOLT,6X16
920021439
€ 3.00
92002A
920021534
ref: 92002A
BOLT,6X30
920021534
€ 4.00
92002B
920021592
ref: 92002B
BOLT,6X12
920021592
€ 2.50
92002C
920021612
ref: 92002C
BOLT
920021612
€ 3.00
92022
92022169
ref: 92022
WASHER-PLAIN
92022169
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92055
920551011
ref: 92055
O RING,METER GEAR
€ 4.50
92055A
920551279
ref: 92055A
RING-O,45MM
920551279
€ 4.50
92055B
920551358
ref: 92055B
RING-O
920551358
€ 4.50
92057
920571183
ref: 92057
CHAIN,PUMP,BS25HX50L
920571183
€ 11.00
92071
92071100
ref: 92071
GROMMET OIL STRAINER
92071100
€ 3.50
92081
920811862
ref: 92081
SPRING,OIL FILTER
920811862
€ 9.00
92122
921221126
ref: 92122
ROLLER,3X15.8
921221126
€ 2.50
