CYLINDER HEAD

VN800A7 VULCAN 800 2001 USA CALIFORNIA

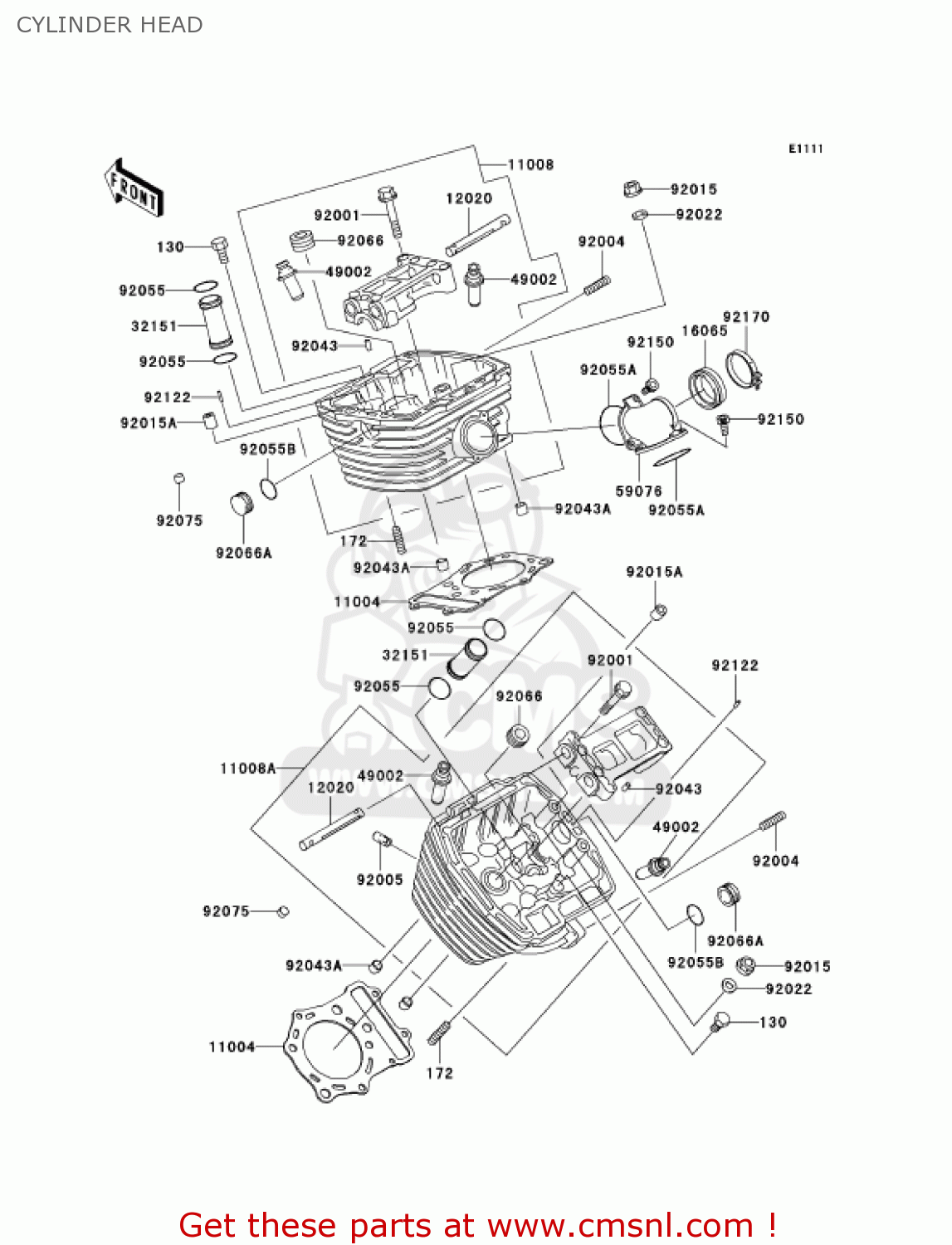

Cylinder head diagram VN800A7 VULCAN 800 2001 USA CALIFORNIA

CYLINDER HEAD VN800A7 VULCAN 800 2001 USA CALIFORNIA
CYLINDER HEAD VN800A7 VULCAN 800 2001 USA CALIFORNIA
CYLINDER HEAD VN800A7 VULCAN 800 2001 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130S0665
ref: 130
BOLT-FLANGED
€ 3.00
172
172G0825
ref: 172
STUD,8X25
€ 3.50
11004
110041310
ref: 11004
GASKET-HEAD (NAS)
110041310
€ 30.00
11008
110081301
ref: 11008
HEAD-COMP-CYLINDER,FR
€ 915.00
11008A
110081302
ref: 11008A
HEAD-COMP-CYLINDER,RR
€ 1,074.50
12020
120201070
ref: 12020
SHAFT-ROCKER
120201070
€ 28.50
16065
160651308
ref: 16065
HOLDER-CARBURETOR
160651308
€ 33.00
32151
321511893
ref: 32151
PIPE,PLUG
321511893
€ 16.00
49002
490021097
ref: 49002
GUIDE-VALVE
490021097
€ 18.50
59076
590761102
ref: 59076
MANIFOLD-INTAKE
590761102
€ 65.00
92001
920011005
ref: 92001
BOLT,FLANGED,8X58
920011005
€ 5.00
92004
920041217
ref: 92004
STUD
920041217
€ 4.00
92005
920051061
ref: 92005
FITTING,BREATHER PIPE
€ 16.00
92015
92015077
ref: 92015
NUT, 10MM
€ 3.00
92015A
920151923
ref: 92015A
NUT
920151923
€ 7.50
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
920221591
€ 3.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431266
ref: 92043A
PIN,11X14X12.3
920431266
€ 1.00
92055
920551272
ref: 92055
RING-O,27.7X1.9
920551272
€ 3.50
92055A
920551279
ref: 92055A
RING-O,45MM
920551279
€ 4.50
92055B
920551459
ref: 92055B
RING-O,ID=24.5
920551459
€ 3.00
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
920661253
€ 6.50
92066A
920661462
ref: 92066A
PLUG,CAM HOLE
920661462
€ 8.00
92075
92075182
ref: 92075
DAMPER
92075182
€ 2.50
92122
921221126
ref: 92122
ROLLER,3X15.8
921221126
€ 2.50
92150
921501880
ref: 92150
BOLT,SOCKET,6X20
921501880
€ 2.00
92170
921701632
ref: 92170
CLAMP
921701632
€ 12.50
