FUEL TANK
VN800A7 VULCAN 800 2001 USA CALIFORNIA

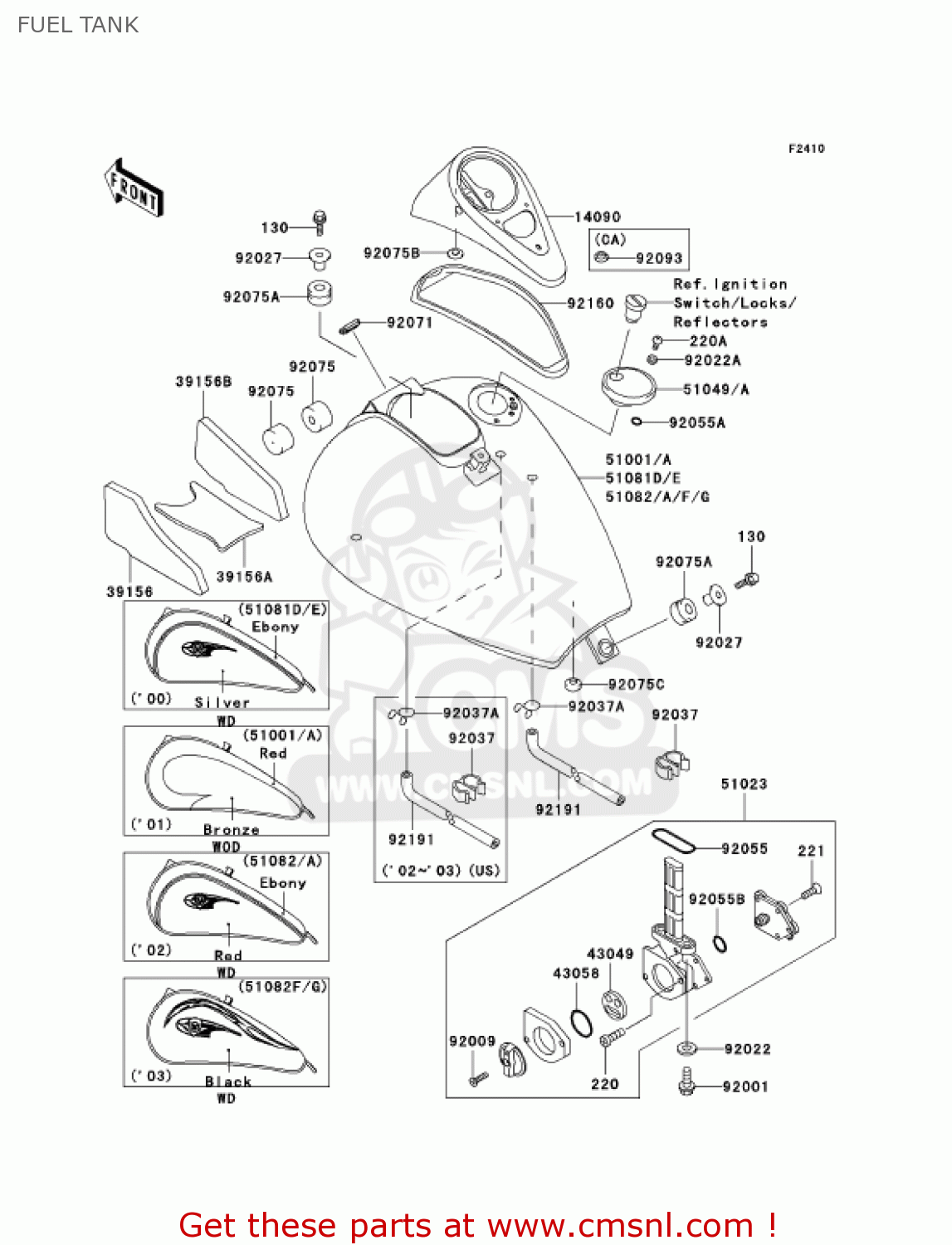

Fuel tank diagram VN800A7 VULCAN 800 2001 USA CALIFORNIA
FUEL TANK VN800A7 VULCAN 800 2001 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
14090
140901560
ref: 14090
COVER,METER
€ 104.00
39156
391561512
ref: 39156
PAD,FUEL TANK,LH
€ 18.00
39156A
391561513
ref: 39156A
PAD,FUEL TANK,CNT
€ 15.00
39156B
391561629
ref: 39156B
PAD,FUEL TANK,RH
€ 18.50
43049
430491075
ref: 43049
PACKING,TAP VALVE (NAS)
€ 6.00
43058
430581083
ref: 43058
RING,TAP LEVER
€ 5.50
51001
510011533YI
ref: 51001
[CA]
TANK-COMP-FUEL,BRONZE
€ 497.00
51001A
510011604YI
ref: 51001A
[US]
TANK-COMP-FUEL,BRONZE
€ 497.00
51023
510231219
ref: 51023
TAP-ASSY,FUEL
€ 97.50
51049
510491103
ref: 51049
CAP-TANK,FUEL
€ 91.00
92001
920011524
ref: 92001
BOLT, 6X25
€ 1.50
92009
920091742
ref: 92009
SCREW
€ 1.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92022A
920221977
ref: 92022A
WASHER,5.1X10X1.0
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
€ 4.50
92037
920371458
ref: 92037
[US]
CLAMP,BRAKE HOSE & SE
€ 4.00
130
130H0830
ref: 130
BOLT-FLANGED,8X30
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
92037A
92037147
ref: 92037A
[US]
CLAMP,CHAIN OILER
€ 4.50
92055
920551112
ref: 92055
RING-/,FUEL TAP PACKI
€ 3.00
92055A
920551552
ref: 92055A
RING-O
€ 2.00
92055B
920551649
ref: 92055B
RING-O
€ 4.00
92071
920711187
ref: 92071
GROMMET
€ 3.00
92075
92075125
ref: 92075
DAMPER RUBBER-FL TANK
€ 4.00
92075A
920751736
ref: 92075A
DAMPER
€ 4.00
92075B
92075261
ref: 92075B
DAMPER,BATTERY CASE
€ 3.00
92075C
92075281
ref: 92075C
DAMPER,9X24X14
€ 4.00
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
€ 5.00
92160
921601593
ref: 92160
DAMPER,METER COVER
€ 33.00
92191
921911015
ref: 92191
[US]
TUBE
€ 19.50
