ENGINE COVER(S)

VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST

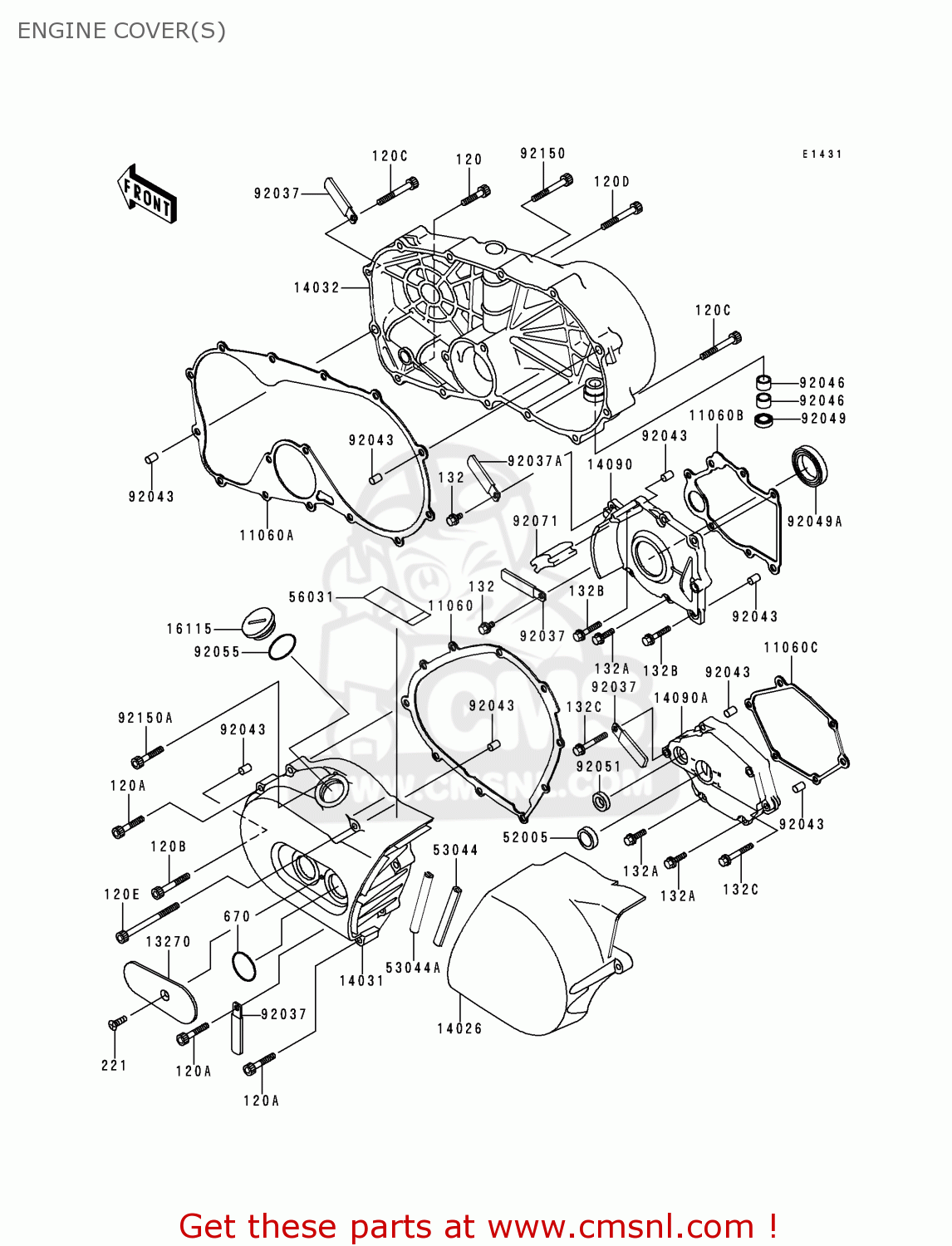

Engine cover(s) diagram VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST

ENGINE COVER(S) VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST
ENGINE COVER(S) VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST
ENGINE COVER(S) VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
120
120R0630
ref: 120
BOLT-SOCKET
120R0630
€ 2.50
120A
120R0635
ref: 120A
BOLT-SOCKET
120R0635
€ 2.50
120B
120R0645
ref: 120B
BOLT-SOCKET
120R0645
€ 3.50
120C
120R0650
ref: 120C
BOLT-SOCKET
120R0650
€ 3.00
120D
120R0665
ref: 120D
BOLT-SOCKET
€ 4.50
120E
120R0685
ref: 120E
BOLT-SOCKET
120R0685
€ 5.50
132
132H0610
ref: 132
BOLT-FLANGED-SMALL,6X
€ 1.00
132A
132J0620
ref: 132A
BOLT-FLANGED-SMALL
132J0620
€ 2.00
132B
132J0630
ref: 132B
BOLT-FLANGED-SMALL
132J0630
€ 2.50
132C
132J0640
ref: 132C
BOLT-FLANGED-SMALL
132J0640
€ 3.00
221
221R0614
ref: 221
SCREW-CSK-CROS,6X14
221R0614
€ 2.00
670
670B3034
ref: 670
O RING
670B3034
€ 1.00
11060
110601089
ref: 11060
GASKET,GENERATOR COVE (NAS)
110601089
€ 18.00
11060A
110601090
ref: 11060A
GASKET,CLUTCH COVER (NAS)
110601090
€ 31.50
11060B
110601683
ref: 11060B
GASKET,TRANSMISSION C (NAS)
110601683
€ 14.00
11060C
110601685
ref: 11060C
GASKET,MECHANISM COVE (NAS)
110601685
€ 10.50
13270
132701397
ref: 13270
PLATE
€ 22.00
14026
140261217
ref: 14026
COVER-CHAIN
€ 299.50
14031
140311308
ref: 14031
COVER-GENERATOR
€ 349.00
14032
140321403
ref: 14032
COVER-CLUTCH
€ 318.50
14090
140901552
ref: 14090
COVER,TRANSMISSION
140901552
€ 91.00
14090A
140901559
ref: 14090A
COVER,MECHANISM
140901559
€ 87.00
16115
161151063
ref: 16115
CAP-OIL FILLER
161151063
€ 19.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
53044
530441285
ref: 53044
TRIM
530441285
€ 3.50
53044A
530441286
ref: 53044A
TRIM
530441286
€ 4.00
56031
560311894
ref: 56031
LABEL-MANUAL,OIL CAPA
560311894
€ 3.50
92037
920371539
ref: 92037
CLAMP,L=45
920371539
€ 3.00
92037A
920371993
ref: 92037A
CLAMP
920371993
€ 3.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
920491271
€ 7.00
92049A
920491361
ref: 92049A
SEAL-OIL
920491361
€ 7.00
92051
92051005A
ref: 92051
OIL SEAL,TB13225.5
92051005A
€ 5.50
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92071
920711232
ref: 92071
GROMMET
€ 4.00
92150
921501436
ref: 92150
BOLT,SOCKET,6X50
921501436
€ 3.50
92150A
921501887
ref: 92150A
BOLT,SOCKET,6X35
€ 2.50
