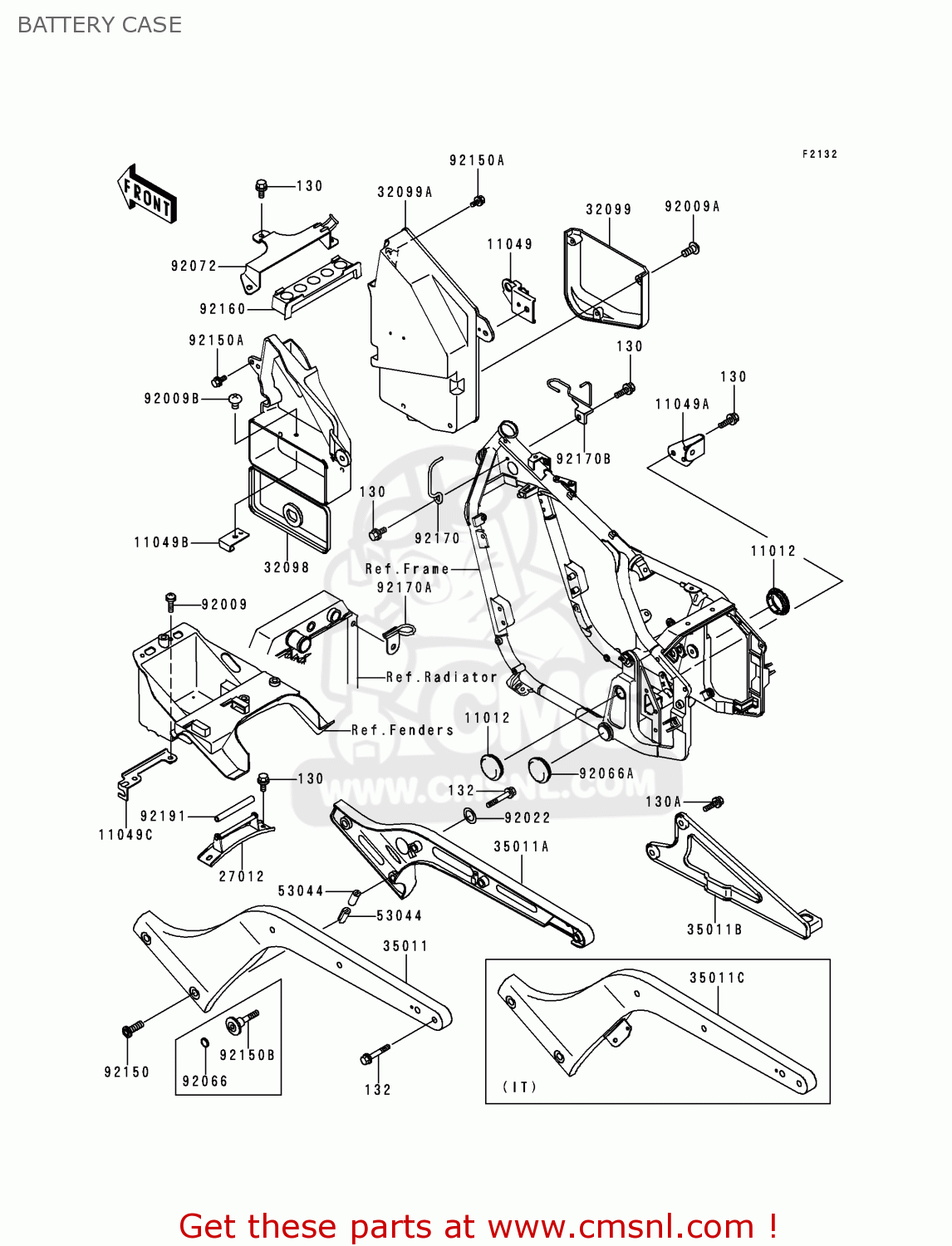

BATTERY CASE

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130J0820
ref: 130A

BOLT-FLANGED,8X20

€ 0.50

132

132E0835
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

11012

110121926
ref: 11012

CAP

€ 8.00

11049

110491183
ref: 11049

BRACKET,SIDE COVER LO

€ 10.50

11049A

110491233
ref: 11049A

BRACKET,RESERVOIR TAN

€ 6.50

11049B

110491266
ref: 11049B

BRACKET,TOOL CASE LOC

€ 3.00

11049C

110491284
ref: 11049C

BRACKET,CHOCK CABLE

€ 8.00

27012

270121495
ref: 27012

HOOK,SEAT

€ 17.50

32098

320981106
ref: 32098

CASE-TOOL

€ 62.50

32099

320991164
ref: 32099

CASE

€ 12.50

32099A

320991167
ref: 32099A

CASE,BASE

€ 38.50

35011

350111725
ref: 35011
AREUFGFRGRNRSDSPSTUK

STAY,LH

€ 209.00

35011A

350111726
ref: 35011A

STAY,RH

€ 201.00

35011B

350111727
ref: 35011B

STAY,MUFFLER

€ 36.50

35011C

350111745
ref: 35011C
IT

STAY,LH

€ 163.00

53044

530441292
ref: 53044

TRIM,L=20

€ 2.00

92009

920091402
ref: 92009

SCREW,6X10

€ 1.50

92009A

920091635
ref: 92009A

SCREW,TAPPING,5X14

€ 2.00

92009B

920091653
ref: 92009B

SCREW

€ 2.50

92022

920221823
ref: 92022

WASHER

€ 3.50

92066

920661277
ref: 92066

PLUG

€ 4.00

92066A

920661434
ref: 92066A

PLUG

€ 7.50

92072

920721320
ref: 92072

BAND,BATTERY

€ 25.00

92150

921501517
ref: 92150

BOLT,SOCKET,10X30

€ 5.50

92150A

921501689
ref: 92150A

BOLT,FLANGED,6X14

€ 2.00

92150B

921501947
ref: 92150B

BOLT

€ 11.00

92160

921601634
ref: 92160

DAMPER,BATTERY BAND

€ 24.50

92170

921701605
ref: 92170

CLAMP,HARNESS

€ 8.00

92170A

921701608
ref: 92170A

CLAMP,CABLE

€ 4.50

92170B

921701622
ref: 92170B

CLAMP,HARNESS&CABLE

€ 9.00

92191

921911009
ref: 92191

TUBE,6X10X80

€ 2.50
