Genuine VN Kawasaki Parts delivered quickly!


BRAKE PEDAL

VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST

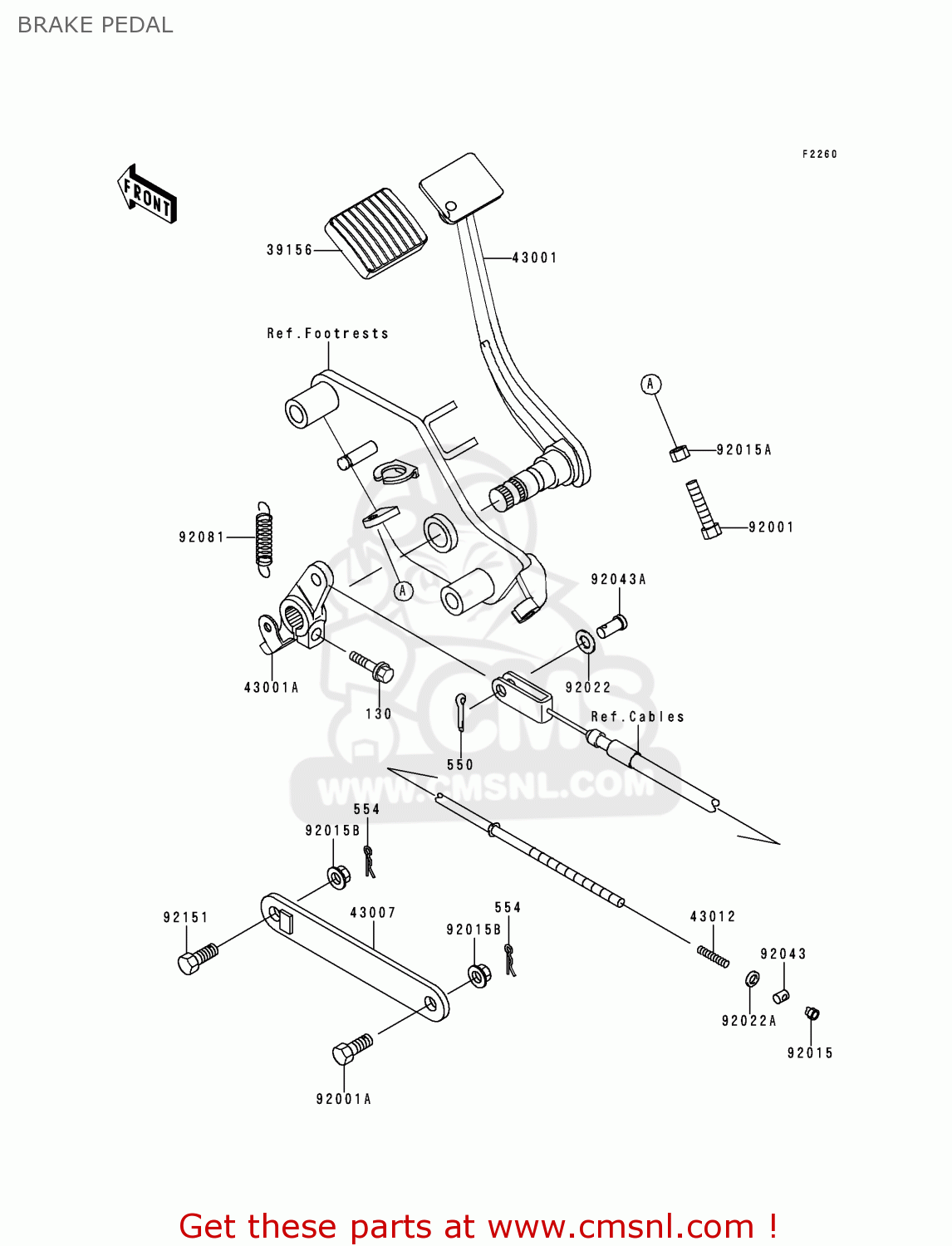

Brake pedal diagram VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST

BRAKE PEDAL VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST
BRAKE PEDAL VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST
BRAKE PEDAL VN800A2 1996 EUROPE UK FR AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
130
130J0825
ref: 130
BOLT-FLANGED,8X25,BLA
130J0825
€ 2.00
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
39156
391561071
ref: 39156
PAD,BRAKE PEDAL
391561071
€ 7.50
43001
430011222
ref: 43001
LEVER-BRAKE,PEDAL
430011222
€ 83.50
43001A
430011356
ref: 43001A
LEVER-BRAKE
430011356
€ 26.00
43007
430071179
ref: 43007
ROD-TORQUE
430071179
€ 11.50
43012
43012001
ref: 43012
SPRING,BRAKE ROD
43012001
€ 3.00
92001
920011090
ref: 92001
BOLT,HEX HEAD,6X25
920011090
€ 2.50
92001A
920011519
ref: 92001A
BOLT,10X37
920011519
€ 4.50
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
92015A
920151391
ref: 92015A
NUT,6MM
920151391
€ 2.00
92015B
920151428
ref: 92015B
NUT,FLANGED,10MM
920151428
€ 3.00
92022
920221582
ref: 92022
WASHER,8.5X16X1.2
€ 0.50
92022A
920221588
ref: 92022A
WASHER,6.3X10.2X1.6
920221588
€ 2.50
92043
92043065
ref: 92043
PIN-BRAKE ROD
92043065
€ 3.50
92043A
920431013
ref: 92043A
PIN
920431013
€ 6.50
92081
920811845
ref: 92081
SPRING,BRAKE PEDAL
920811845
€ 6.50
92151
921511125
ref: 92151
BOLT
921511125
€ 4.00
