STARTER MOTOR
VN750A5 VULCAN 750 1989 USA CALIFORNIA

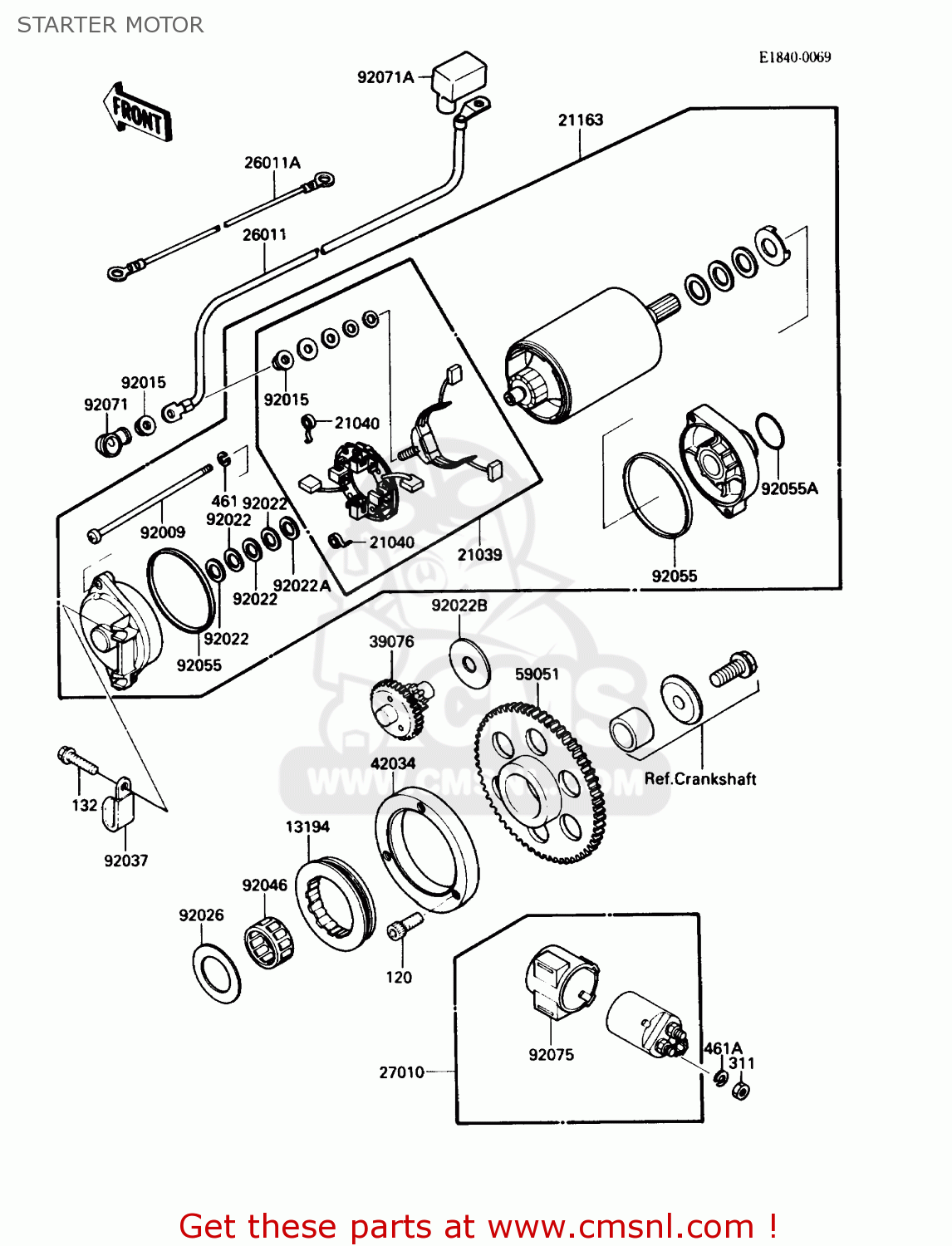

Starter motor diagram VN750A5 VULCAN 750 1989 USA CALIFORNIA
STARTER MOTOR VN750A5 VULCAN 750 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
120
120Q0820
ref: 120
BOLT,ALLEN,8X20
€ 2.50
132
132J0625
ref: 132
BOLT-FLANGED-SMALL
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
461A
461F0600
ref: 461A
WASHER-SPRING,6MM
€ 0.50
13194
131941062
ref: 13194
CLUTCH-ONEWAY
€ 138.50
21039
210391053
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21163
211631068
ref: 21163
STARTER-ELECTRIC
€ 703.50
26011
260111276
ref: 26011
WIRE-LEAD,STARTER MOT
€ 57.50
26011A
260111320
ref: 26011A
WIRE-LEAD,BATTERY GRO
€ 9.50
27010
270101209
ref: 27010
SWITCH,MAGNETIC
€ 110.50
39076
390761051
ref: 39076
LIMITER,IDLE GEAR
€ 107.00
42034
420341081
ref: 42034
COUPLING
€ 103.00
59051
590511130
ref: 59051
GEAR-SPUR,STARTER,63T
€ 138.00
92009
920091369
ref: 92009
SCREW
€ 6.50
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92022B
920221664
ref: 92022B
WASHER,12.3X38X2.0
€ 4.50
92026
92026087
ref: 92026
SPACER,CONNECTING ROD
€ 6.50
92037
920371539
ref: 92037
CLAMP,L=45
€ 3.00
92046
920461137
ref: 92046
BEARING-NEEDLE
€ 29.00
92055
920551086
ref: 92055
O RING,64MM
€ 6.50
92055A
920551276
ref: 92055A
RING-O
€ 6.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92071A
920711130
ref: 92071A
GROMMET,TERMINAL
€ 7.00
92075
21064002
ref: 92075
DAMPER,MAGNETIC SWITC
€ 13.50
