FRAME
VN750A5 VULCAN 750 1989 USA CALIFORNIA

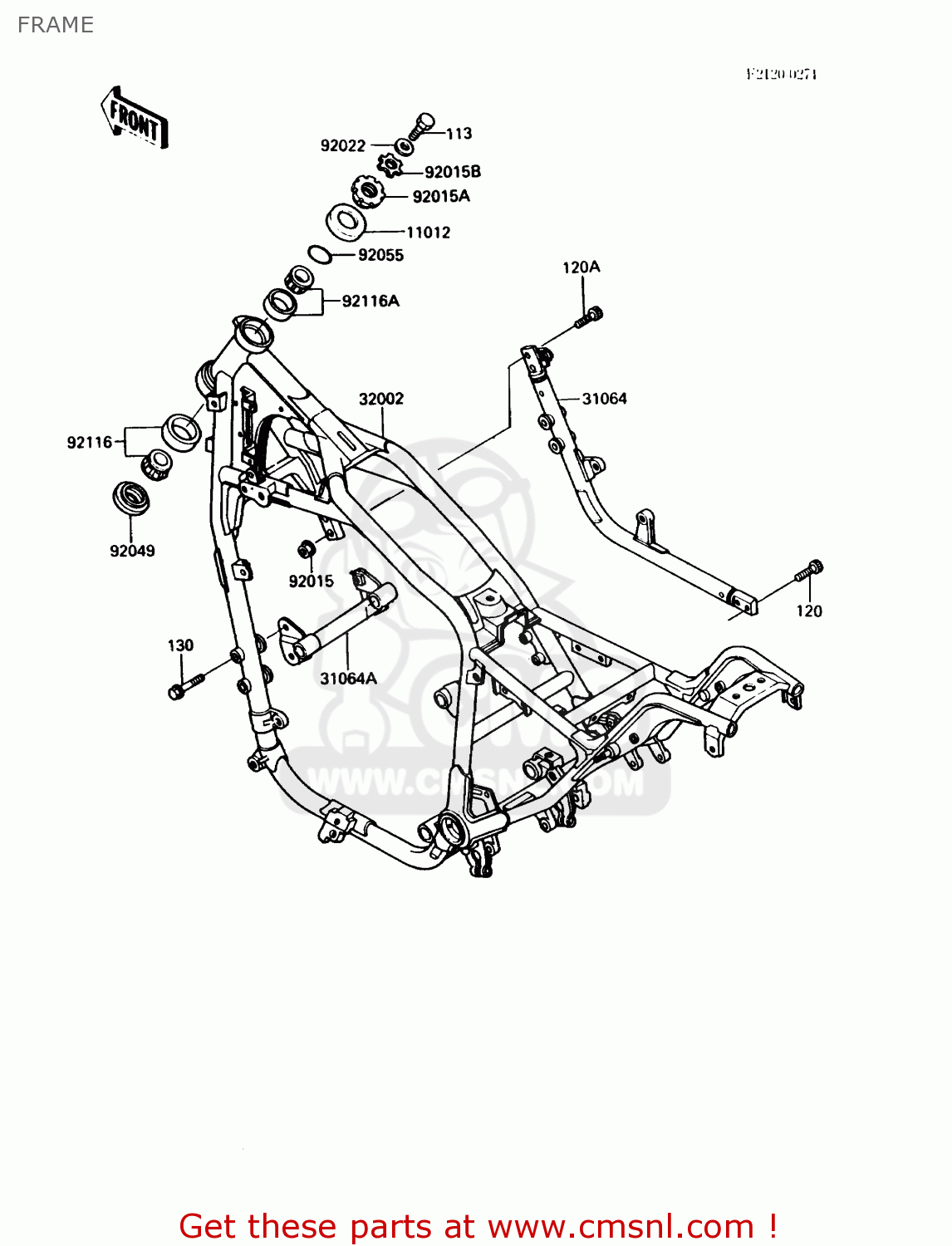

Frame diagram VN750A5 VULCAN 750 1989 USA CALIFORNIA
FRAME VN750A5 VULCAN 750 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
113
113G1425
ref: 113
BOLT-SMALL-FINE,14X25
€ 5.50
120
120S1020
ref: 120
BOLT-SOCKET
€ 3.00
120A
120S1030
ref: 120A
BOLT-SOCKET,10X30
€ 3.50
130
130J0860
ref: 130
BOLT-FLANGED
€ 2.50
11012
46098017
ref: 11012
CAP,STEERING STEM
€ 4.00
31064
310641058
ref: 31064
PIPE-COMP,SUB FRAME
€ 267.50
31064A
310641059
ref: 31064A
PIPE-COMP
€ 112.00
32002
320021783
ref: 32002
FRAME-COMP
€ 2,077.50
92015
920151021
ref: 92015
NUT,10MM
€ 3.00
92015A
920151377
ref: 92015A
NUT,25MM,T=10
€ 18.50
92015B
920151378
ref: 92015B
NUT,25MM,T=6
€ 14.50
92022
920221229
ref: 92022
WASHER,14.5X36X4.5
€ 8.00
92049
920491162
ref: 92049
SEAL-OIL,XMHE36X52X4J
€ 7.50
92055
920551160
ref: 92055
RING-0,24.7MM
€ 3.00
92116
921161009
ref: 92116
BEARING R,HR320/28XJ
€ 41.00
92116A
921161058
ref: 92116A
BEARING-ROLLER,HI-CAP
€ 45.00
