CRANKCASE
VN750A5 VULCAN 750 1989 USA CALIFORNIA

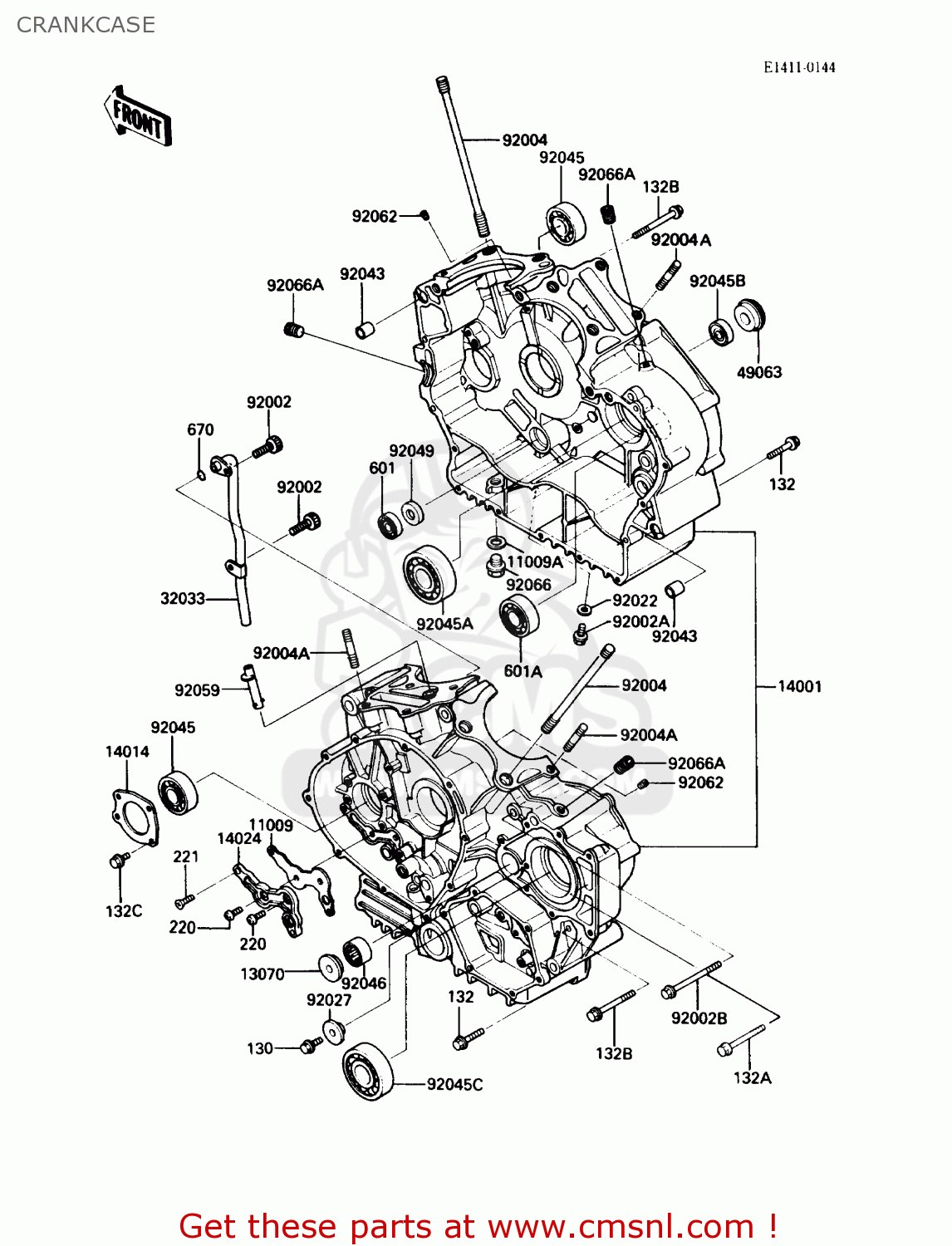

Crankcase diagram VN750A5 VULCAN 750 1989 USA CALIFORNIA
CRANKCASE VN750A5 VULCAN 750 1989 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130P0616
ref: 130
BOLT-FLANGED
€ 1.00
132
132E0630
ref: 132
BOLT-FLANGED-SMALL
€ 3.00
132A
132E0640
ref: 132A
BOLT-FLANGED-SMALL
€ 3.50
132B
132E0660
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132G0616
ref: 132C
BOLT-FLANGED-SMALL
€ 1.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
221
221B0620
ref: 221
SCREW-CNTSNK HD,6X20
€ 0.50
601
601A6001
ref: 601
BEARING-BALL
€ 9.00
601A
601A6204Z
ref: 601A
BEARING-BALL
€ 28.00
670
670B1508
ref: 670
O RING,8MM
€ 1.00
11009
110091471
ref: 11009
GASKET,OIL LINE COVER (MCA)
€ 4.50
11009A
92065097
ref: 11009A
GASKET,DRAIN PLUG BOL (NAS)
€ 1.00
13070
130701127
ref: 13070
GUIDE
€ 15.50
14001
140015205
ref: 14001
SET-CRANKCASE
€ 1,904.00
14014
140141068
ref: 14014
PLATE-POSITION
€ 10.50
14024
140241074
ref: 14024
COVER,OIL LINE
€ 19.00
32033
320331649
ref: 32033
PIPE,BREATHER
€ 31.00
49063
490631052
ref: 49063
SEAL-MECHANICAL
€ 32.50
92002
920021592
ref: 92002
BOLT,6X12
€ 2.50
92002A
920021628
ref: 92002A
BOLT,6X10
€ 3.00
92002B
920021629
ref: 92002B
BOLT,10X80
€ 6.50
92004
920041140
ref: 92004
STUD,10X163
€ 10.00
92004A
920041142
ref: 92004A
STUD,8X28.5
€ 6.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
€ 0.50
92027
920271844
ref: 92027
COLLAR
€ 7.50
92043
920431266
ref: 92043
PIN,11X14X12.3
€ 1.00
92045
920451041
ref: 92045
BEARING-BALL,TMB204 J
€ 32.50
92045A
920451137
ref: 92045A
BEARING-BALL,TMB305
€ 43.50
92045B
920451151
ref: 92045B
BEARING-BALL,6001JRXL
€ 26.00
92045C
920451167
ref: 92045C
BEARING-BALL,TMB305X3
€ 43.50
92046
920461054
ref: 92046
BEARING-NEEDLE,HK2016
€ 20.00
92049
920491228
ref: 92049
SEAL-OIL,AC037AE0
€ 7.00
92059
920591620
ref: 92059
TUBE
€ 7.00
92062
92062011
ref: 92062
NOZZLE,OIL
€ 5.50
92066
920661174
ref: 92066
PLUG,OIL DRAIN,12X15
€ 4.00
92066A
920661227
ref: 92066A
PLUG,OIL LINE,1/8X7
€ 4.00
