Genuine VN Kawasaki Parts delivered quickly!


FRAME FITTINGS

VN750A18 VULCAN 750 2002 USA CALIFORNIA

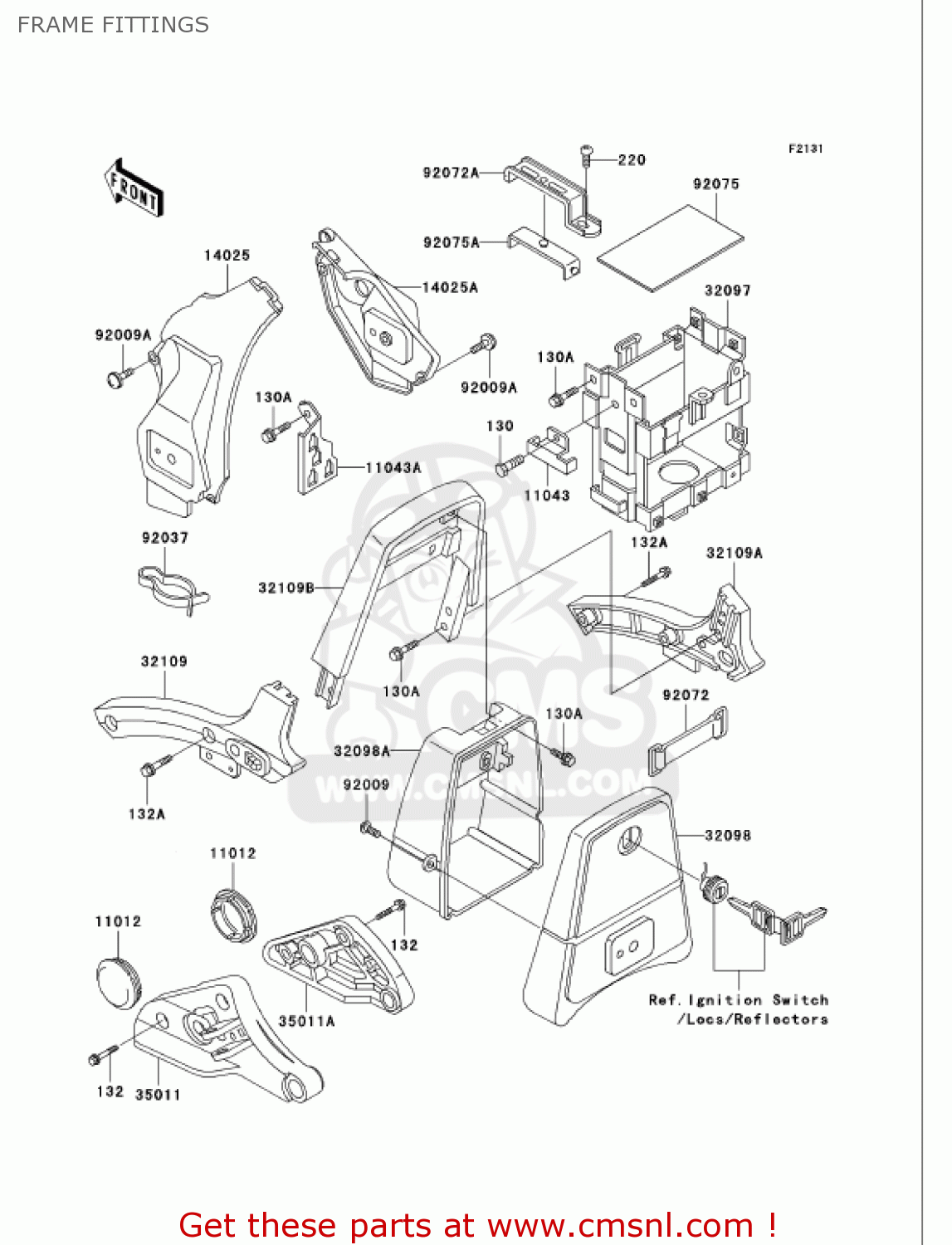

Frame fittings diagram VN750A18 VULCAN 750 2002 USA CALIFORNIA

FRAME FITTINGS VN750A18 VULCAN 750 2002 USA CALIFORNIA
FRAME FITTINGS VN750A18 VULCAN 750 2002 USA CALIFORNIA
FRAME FITTINGS VN750A18 VULCAN 750 2002 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
130
130B0608
ref: 130
BOLT,FLANGED,6X8
130B0608
€ 0.50
130A
130D0612
ref: 130A
BOLT,FLANGED
€ 0.50
132
132E0830
ref: 132
BOLT-FLANGED-SMALL
132E0830
€ 3.50
132A
132E0835
ref: 132A
BOLT-FLANGED-SMALL
132E0835
€ 3.00
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
220B0612
€ 1.00
11012
110121433
ref: 11012
CAP,SWING ARM
110121433
€ 15.00
11043
110431934
ref: 11043
BRACKET,JOINT BOX
110431934
€ 6.00
11043A
110431935
ref: 11043A
BRACKET,HARNESS
€ 8.50
14025
140251994
ref: 14025
COVER,FUEL TANK,LH
140251994
€ 19.50
14025A
140251995
ref: 14025A
COVER,FUEL TANK,RH
€ 31.00
32097
320971121
ref: 32097
CASE-BATTERY
320971121
€ 93.00
32098
320981057
ref: 32098
CASE-TOOL
320981057
€ 55.00
32098A
320981058
ref: 32098A
CASE-TOOL
320981058
€ 35.50
32109
321091131
ref: 32109
GRIP-FRAME,LWR,LH
€ 332.00
32109A
321091132
ref: 32109A
GRIP-FRAME,LWR,RH
€ 332.00
32109B
321091133
ref: 32109B
GRIP-FRAME,UPP
€ 332.00
35011
350111263
ref: 35011
STAY,MUFFLER,LH
€ 215.00
35011A
350111264
ref: 35011A
STAY,MUFFLER,RH
€ 303.50
92009
920091264
ref: 92009
SCREW,TAPPING,5X16
920091264
€ 0.50
92009A
920091288
ref: 92009A
SCREW,6X14
920091288
€ 2.00
92037
92037093
ref: 92037
CLAMP
92037093
€ 7.50
92072
92072053
ref: 92072
BAND-SPARK PLUG COVER
92072053
€ 8.50
92072A
920721177
ref: 92072A
BAND,BATTERY
920721177
€ 6.50
92075
920751076
ref: 92075
DAMPER,BATTERY BASE
920751076
€ 6.00
92075A
920751371
ref: 92075A
DAMPER,BATTERY BAND
920751371
€ 7.50
