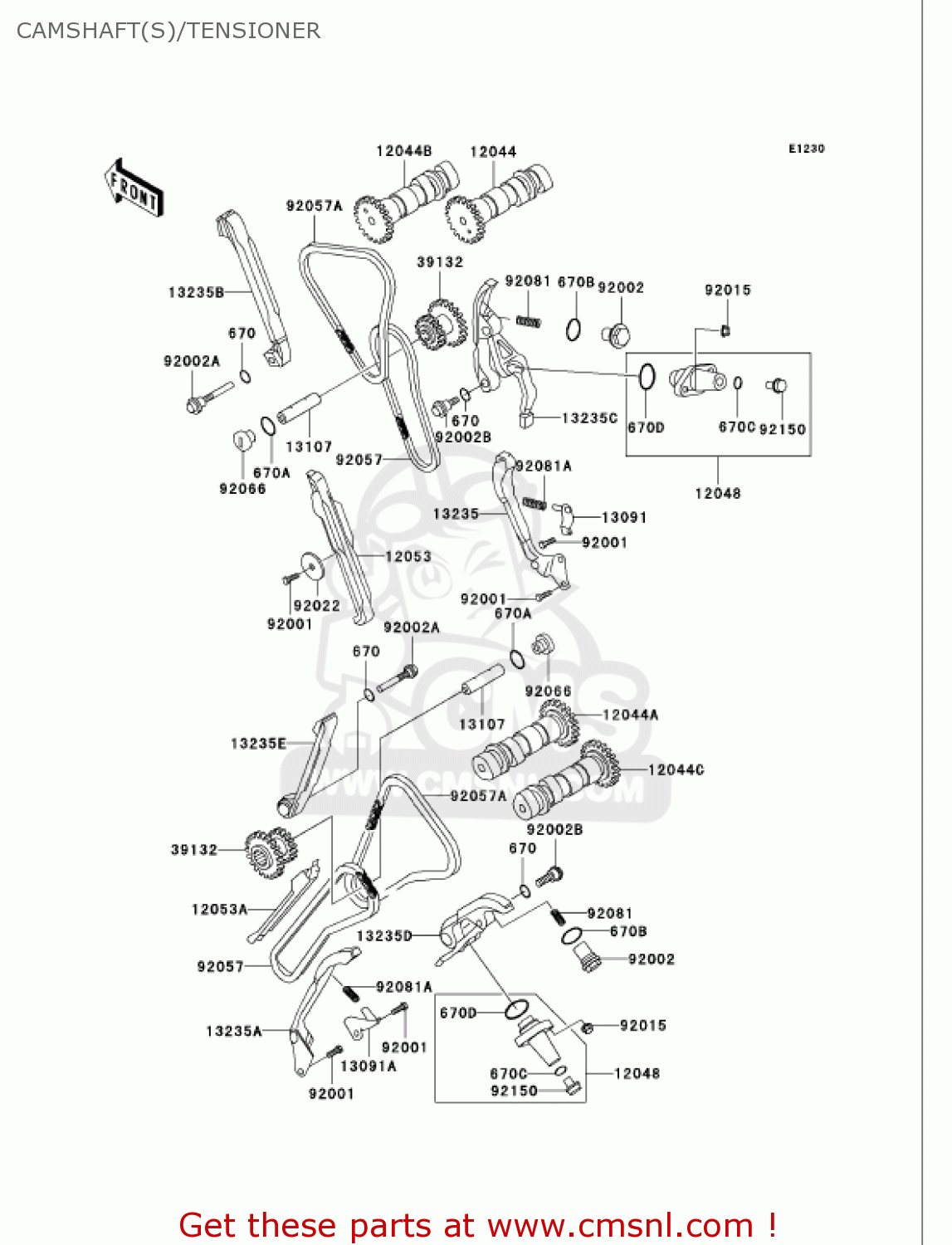

CAMSHAFT(S)/TENSIONER

ref

part #

description

quantity

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2016
ref: 670A

O RING,16MM

€ 1.00

670B

670B2018
ref: 670B

O RING,18MM

€ 1.00

670C

670D2010
ref: 670C

O RING,10MM

€ 1.00

670D

670D2021
ref: 670D

O RING,21MM

€ 5.00

12044

120441341
ref: 12044

CAMSHAFT-VALVE,INTAKE

€ 193.00

12044A

120441342
ref: 12044A

CAMSHAFT-VALVE,INTAKE

€ 193.00

12044B

120441343
ref: 12044B

CAMSHAFT-VALVE,EXHAUS

€ 193.00

12044C

120441344
ref: 12044C

CAMSHAFT-VALVE,EXHAUS

€ 193.00

12048

120481072
ref: 12048

TENSIONER-ASSY

€ 103.50

12053

120531161
ref: 12053

GUIDE-CHAIN,FR,LWR

€ 38.50

12053A

120531162
ref: 12053A

GUIDE-CHAIN,RR,LWR

€ 45.00

13091

130911367
ref: 13091

HOLDER,CHAIN GUIDE,FR

€ 10.50

13091A

130911368
ref: 13091A

HOLDER,CHAIN GUIDE,RR

€ 9.50

13107

131071145
ref: 13107

SHAFT,IDLER

€ 25.00

13235

132351051
ref: 13235

GUIDE-COMP,FR,LWR

€ 73.00

13235A

132351052
ref: 13235A

GUIDE-COMP,RR,LWR

€ 69.50

13235B

132351053
ref: 13235B

GUIDE-COMP,FR,UPP

€ 82.50

13235C

132351054
ref: 13235C

GUIDE-COMP,FR,UPP

€ 223.50

13235D

132351055
ref: 13235D

GUIDE-COMP,RR,UPP

€ 247.00

13235E

132351056
ref: 13235E

GUIDE-COMP,RR,UPP

€ 87.00

39132

391321053
ref: 39132

SPROCKET-ASSY-IDLER

€ 124.00

92001

920011457
ref: 92001

BOLT,EXCLUSIVE MASS P

€ 3.00

92002

920021621
ref: 92002

BOLT,TENSIONER

€ 16.50

92002A

920021731
ref: 92002A

BOLT

€ 19.50

92002B

920021732
ref: 92002B

BOLT

€ 10.50

92015

920151385
ref: 92015

NUT,CAP,6MM

€ 2.50

92022

92022227
ref: 92022

WASHER-PLAIN,7MM

€ 3.00

92057

920571192
ref: 92057

CHAIN,LWR,75RH2015X82

€ 22.50

92057A

920571193
ref: 92057A

CHAIN,UPP,79RH2020X82

€ 25.50

92066

920661409
ref: 92066

PLUG,IDLER

€ 18.50

92081

920811380
ref: 92081

SPRING,TENSIONER

€ 5.00

92081A

920811837
ref: 92081A

SPRING

€ 3.00

92150

921501381
ref: 92150

BOLT,TENSIONER

€ 4.50

all assemblies
