Genuine VN Kawasaki Parts delivered quickly!


CYLINDER/PISTON(S)

VN750A18 VULCAN 750 2002 USA CALIFORNIA

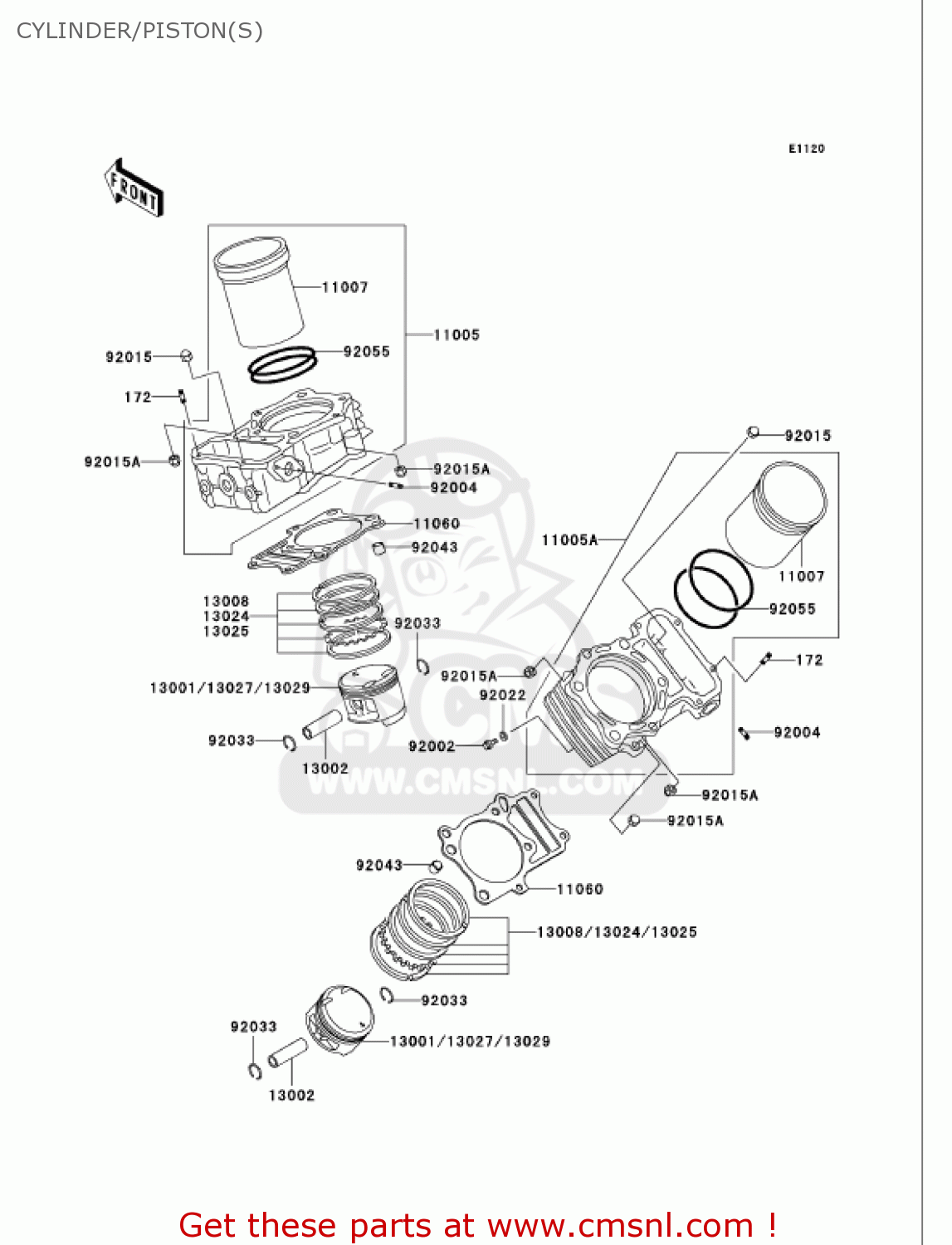

Cylinder/piston(s) diagram VN750A18 VULCAN 750 2002 USA CALIFORNIA

CYLINDER/PISTON(S) VN750A18 VULCAN 750 2002 USA CALIFORNIA
CYLINDER/PISTON(S) VN750A18 VULCAN 750 2002 USA CALIFORNIA
CYLINDER/PISTON(S) VN750A18 VULCAN 750 2002 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
172
172G0620
ref: 172
STUD,6X20
172G0620
€ 1.00
11005
110051481
ref: 11005
CYLINDER-ENGINE,FR
€ 873.50
11005A
110051483
ref: 11005A
CYLINDER-ENGINE,RR
110051483
€ 831.50
11007
110071073
ref: 11007
LINER-CYLINDER
110071073
€ 147.50
11060
110601361
ref: 11060
GASKET,CYLINDER BASE (NAS)
110601361
€ 9.00
13001
130011215
ref: 13001
PISTON-ENGINE,STD
130011215
€ 88.00
13002
130021056
ref: 13002
PIN-PISTON
130021056
€ 20.50
13008
130081077
ref: 13008
RING-SET-PISTON,STD
130081077
€ 69.00
13024
130241069
ref: 13024
RING-SET-PISTON LL,O/
130241069
€ 82.00
13025
130251076
ref: 13025
RING-SET-PISTON L,O/S
130251076
€ 82.00
13027
130271128
ref: 13027
PISTON-ENGINE LL,O/S,
€ 115.50
13029
130291128
ref: 13029
PISTON-ENGINE L,O/S,0
130291128
€ 115.50
92002
920021628
ref: 92002
BOLT,6X10
€ 3.00
92004
920041154
ref: 92004
STUD,6X18
920041154
€ 3.50
92015
920151143
ref: 92015
NUT,8MM
920151143
€ 0.50
92015A
920151371
ref: 92015A
NUT,CAP,8MM
920151371
€ 3.00
92022
92022077
ref: 92022
WASHER,6.1X12X1
92022077
€ 0.50
92033
920331188
ref: 92033
RING-SNAP
920331188
€ 2.50
92043
920431266
ref: 92043
PIN,11X14X12.3
920431266
€ 1.00
92055
920551274
ref: 92055
RING-O,92MM
920551274
€ 10.50
