WATER PIPE

VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA

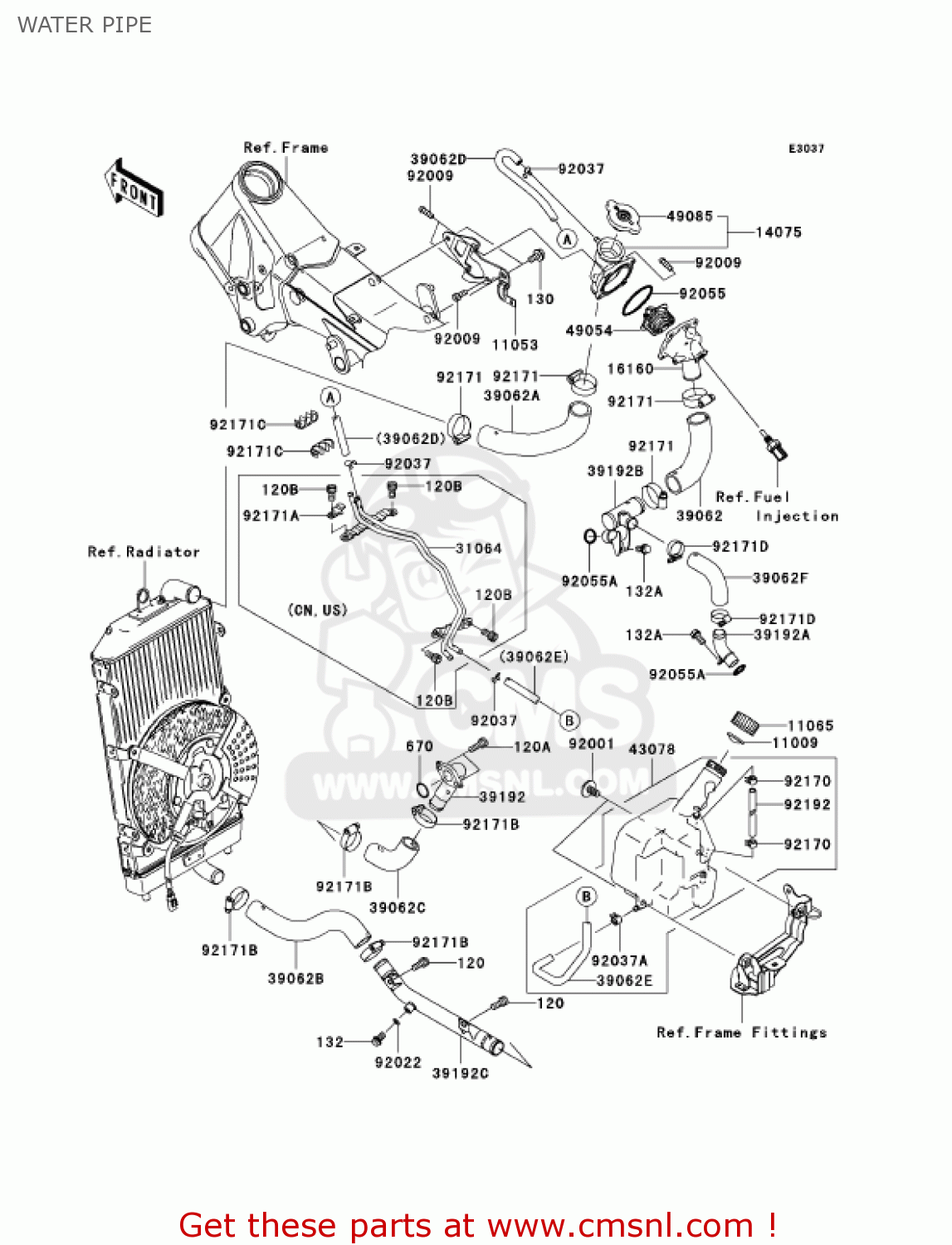

Water pipe diagram VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA

WATER PIPE VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA
WATER PIPE VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA
WATER PIPE VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120R0614
ref: 120
BOLT-SOCKET
120R0614
€ 2.50
120A
120R0616
ref: 120A
BOLT-SOCKET
120R0616
€ 2.00
120B
120W0612
ref: 120B
[CN,US
BOLT-SOCKET
€ 1.50
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
110091145
€ 1.00
11053
110530733
ref: 11053
BRACKET,THERMOSTAT
€ 14.50
11065
110650063
ref: 11065
CAP
€ 2.50
14075
140750001
ref: 14075
CAP-ASSY
140750001
€ 124.00
16160
161600095
ref: 16160
BODY,THERMOSTAT
€ 53.00
31064
310640011
ref: 31064
[CN,US
PIPE-COMP
€ 119.50
39062
390620004
ref: 39062
HOSE-COOLING,THERMO-P
390620004
€ 14.00
39062A
390620005
ref: 39062A
HOSE-COOLING,THERMO-R
390620005
€ 15.00
39062B
390620008
ref: 39062B
HOSE-COOLING,RADIATOR
€ 15.50
39062C
390620009
ref: 39062C
HOSE-COOLING,PIPE-WAT
390620009
€ 7.00
39062D
390620047
ref: 39062D
HOSE-COOLING,L=797
390620047
€ 10.00
39062E
390620062
ref: 39062E
HOSE-COOLING,RESERVOI
€ 8.00
39062F
390620064
ref: 39062F
HOSE-COOLING,RR HEAD-
€ 8.00
39192
391920001
ref: 39192
PIPE-WATER
€ 33.50
39192A
391920007
ref: 39192A
PIPE-WATER,RR HEAD
€ 21.00
39192B
391920008
ref: 39192B
PIPE-WATER,FR HEAD
€ 47.00
39192C
391920009
ref: 39192C
PIPE-WATER,RADIATOR-W
€ 47.00
43078
430780020
ref: 43078
RESERVOIR
430780020
€ 56.50
49054
490541067
ref: 49054
THERMOSTAT
490541067
€ 46.00
49085
490851066
ref: 49085
CAP-ASSY-PRESSURE
490851066
€ 23.50
92001
920011950
ref: 92001
BOLT,6X16
920011950
€ 2.50
92009
920091341
ref: 92009
SCREW,5X14
920091341
€ 2.50
92022
92022304
ref: 92022
WASHER,PLAIN
92022304
€ 2.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371505
ref: 92037A
CLAMP,TUBE
920371505
€ 3.00
92055
92055112
ref: 92055
O RING, 53.5 M/M
92055112
€ 4.00
92055A
920551258
ref: 92055A
RING-O,ID=16.8
920551258
€ 3.00
92170
921701493
ref: 92170
CLAMP
921701493
€ 3.00
92171
921710179
ref: 92171
CLAMP
921710179
€ 7.50
92171A
921710209
ref: 92171A
[CN,US
CLAMP
€ 4.50
92171B
921710261
ref: 92171B
CLAMP
921710261
€ 13.00
92171C
921710334
ref: 92171C
CLAMP
€ 3.00
92171D
921710338
ref: 92171D
CLAMP
921710338
€ 6.50
92192
921920010
ref: 92192
TUBE,7X10X120
€ 3.00
130
130L0612
ref: 130
BOLT-FLANGED
€ 1.50
132
132L0610
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132L0612
ref: 132A
BOLT-FLANGED-SMALL
132L0612
€ 1.50
670
670B2020
ref: 670
O RING,20MM
670B2020
€ 1.00
