HEADLIGHT(S)

VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA

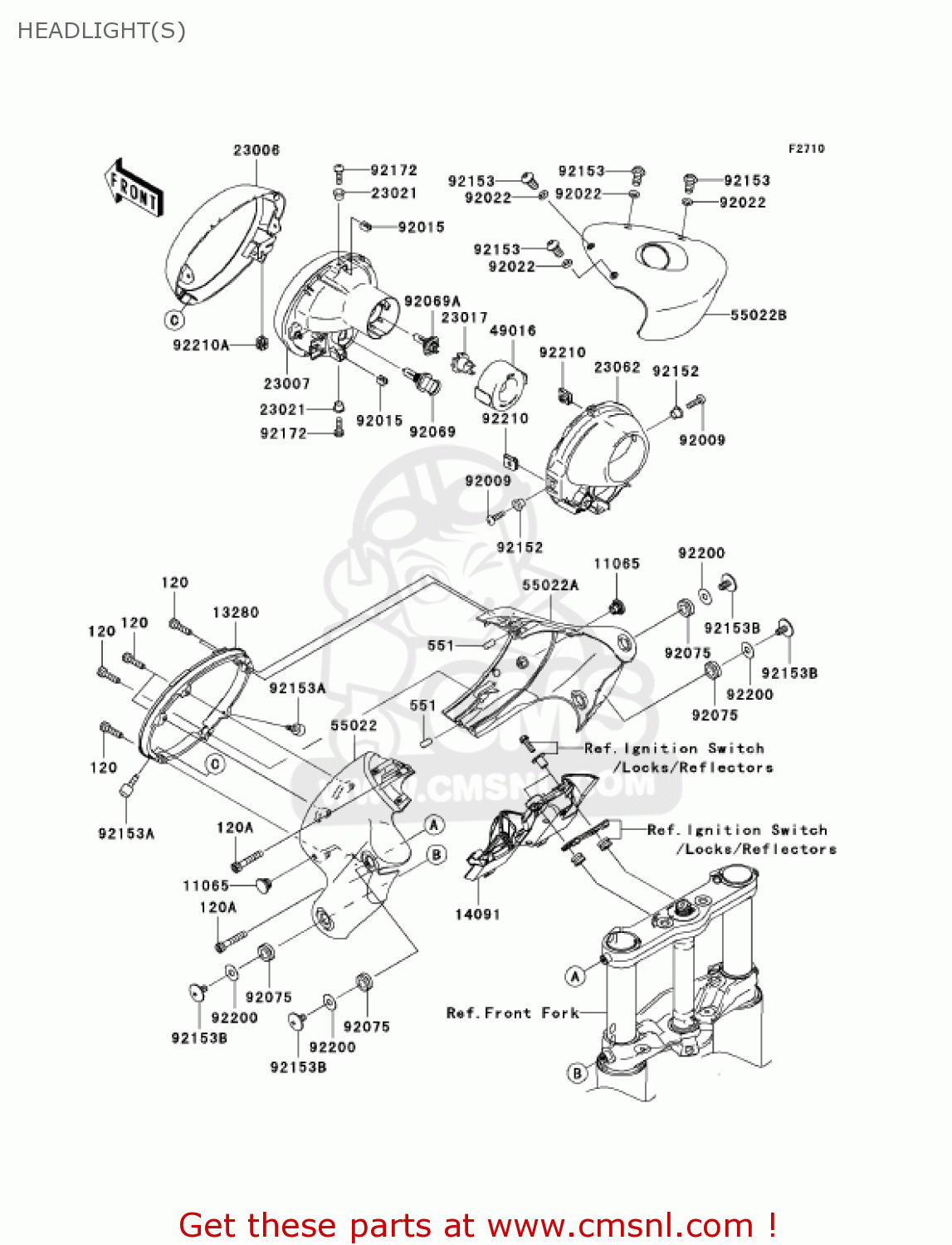

Headlight(s) diagram VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA

HEADLIGHT(S) VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA
HEADLIGHT(S) VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA
HEADLIGHT(S) VN2000A7F VULCAN 2000 2007 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
120
120S0622
ref: 120
BOLT-SOCKET,6X22,BLAC
120S0622
€ 3.00
120A
120W0635
ref: 120A
BOLT-SOCKET
€ 1.00
551
551A0612
ref: 551
PIN-DOWEL,6X12
551A0612
€ 0.50
11065
110650054
ref: 11065
CAP
€ 6.50
13280
132800021
ref: 13280
HOLDER,HEAD LAMP
€ 108.00
14091
140910241
ref: 14091
COVER,HEAD LAMP
€ 25.00
23006
230060003
ref: 23006
RIM-LAMP
230060003
€ 180.00
23007
230070028
ref: 23007
LENS-COMP,HEAD LAMP
230070028
€ 738.50
23017
230171067
ref: 23017
SOCKET,HEAD LAMP
230171067
€ 10.50
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23062
230620017
ref: 23062
BRACKET-COMP,HEAD LAM
€ 39.50
49016
490161203
ref: 49016
COVER-SEAL,SOCKET
490161203
€ 12.00
55022
550220012
ref: 55022
COVER-HEAD LAMP,LH
€ 551.00
55022A
550220013
ref: 55022A
COVER-HEAD LAMP,RH
€ 542.50
55022B
550220015
ref: 55022B
COVER-HEAD LAMP,UPP
€ 390.00
92009
920091879
ref: 92009
SCREW,5X16
920091879
€ 1.00
92015
920151354
ref: 92015
NUT,5MM
920151354
€ 3.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92069
920690007
ref: 92069
BULB,12V 65W,H9
920690007
€ 31.00
92069A
920691126
ref: 92069A
BULB,12V 55W,H7
920691126
€ 28.00
92075
92075104
ref: 92075
DAMPER
92075104
€ 2.50
92152
921520161
ref: 92152
COLLAR
€ 3.00
92153
921530404
ref: 92153
BOLT,SOCKET,6X16
€ 2.00
92153A
921530624
ref: 92153A
BOLT,SOCKET,5X16
€ 5.50
92153B
921530709
ref: 92153B
BOLT,SOCKET,8X16
€ 17.00
92172
921720142
ref: 92172
SCREW,5X16
€ 2.00
92200
922000136
ref: 92200
WASHER,8.8X23.5X0.5
€ 2.50
92210
922100128
ref: 92210
NUT,5MM
922100128
€ 2.00
92210A
922100129
ref: 92210A
NUT
922100129
€ 2.00
