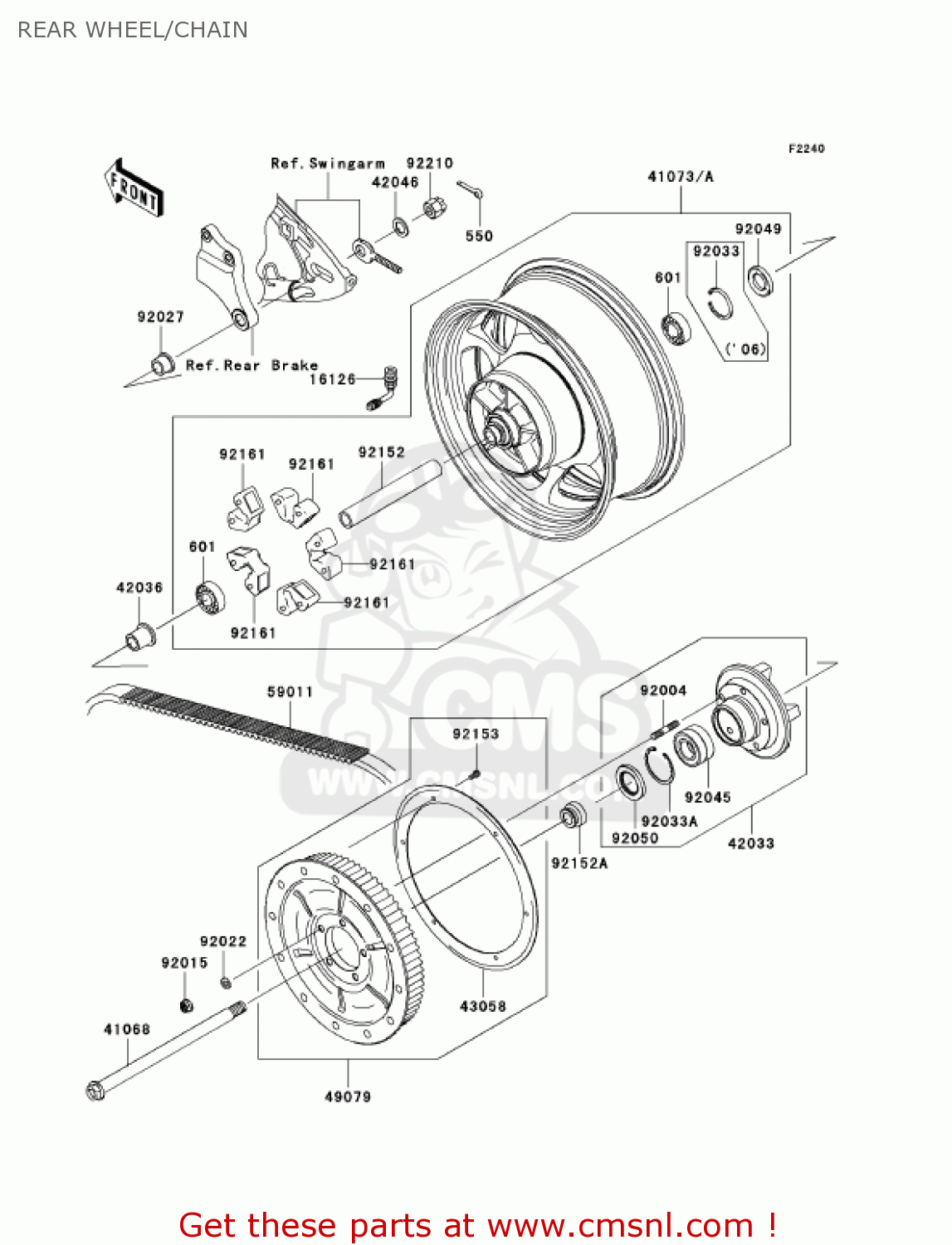

REAR WHEEL/CHAIN

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6304UU
ref: 601

BEARING-BALL,#6304UUC

€ 34.50

16126

161261365
ref: 16126

VALVE

€ 17.50

41068

410680007
ref: 41068

AXLE,RR

€ 95.50

41073A

410730061
ref: 41073A

WHEEL-ASSY,RR

€ 1,064.00

42033

420330020
ref: 42033

COUPLING-ASSY,RR HUB

€ 209.00

42036

420360027
ref: 42036

SLEEVE,RR HUB COUPLIN

€ 32.50

42046

42046003
ref: 42046

WASHER,21X33X2.6

€ 2.50

43058

430580004
ref: 43058

RING,REAR PULLEY

€ 55.00

49079

490790004458
ref: 49079

PULLEY-BELT,P.SILVER

€ 526.00

59011

590110004
ref: 59011

BELT,DRIVE,133T

€ 564.50

92004

920040016
ref: 92004

STUD,10X35

€ 5.50

92015

920151335
ref: 92015

NUT,FLANGED,10MM

€ 1.50

92022

920221820
ref: 92022

WASHER,10.5X19X3.2

€ 2.50

92027

920271902
ref: 92027

COLLAR,RR AXLE,L=21.5

€ 17.00

92033A

920331044
ref: 92033A

CIRCLIP 62 M/M

€ 7.50

92045

920450045
ref: 92045

BEARING-BALL,6206LUD2

€ 75.00

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92050

92050027
ref: 92050

OIL SEAL

€ 13.50

92152

921520051
ref: 92152

COLLAR,RR HUB,L=210

€ 14.50

92152A

921520321
ref: 92152A

COLLAR,RR AXLE,LH,L=2

€ 18.00

92153

921530827
ref: 92153

BOLT,SOCKET,6X12

€ 2.50

92161

921610043
ref: 92161

DAMPER,SHOCK,RR HUB

€ 21.50

92210

922101134
ref: 92210

NUT

€ 4.50
