SADDLEBAGS

VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

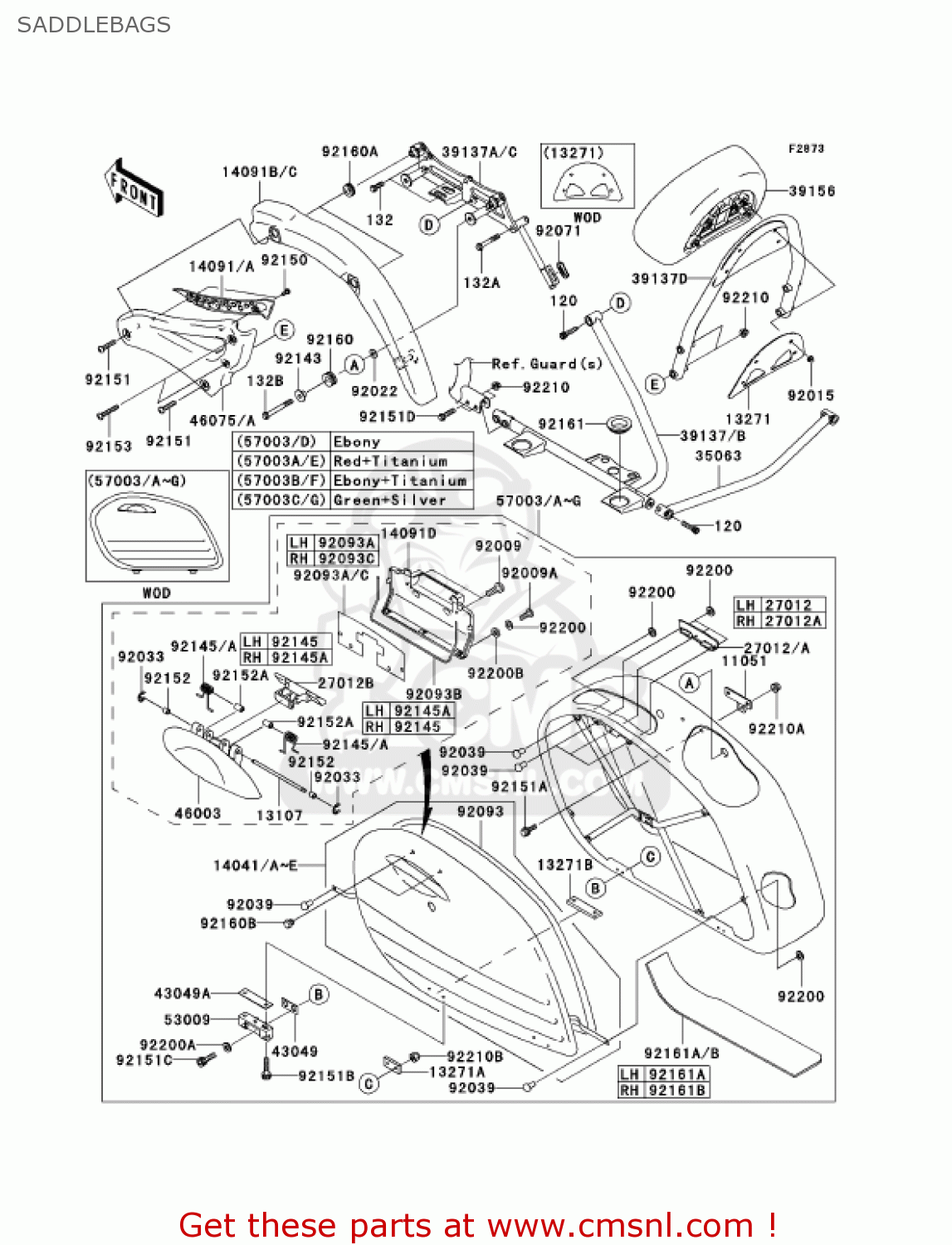

Saddlebags diagram VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

SADDLEBAGS VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
SADDLEBAGS VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
SADDLEBAGS VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11051
110511104
ref: 11051
BRACKET,SIDE BAG BODY
€ 7.50
13107
131071403
ref: 13107
SHAFT
131071403
€ 2.50
13271
132710404
ref: 13271
PLATE,BACKREST
132710404
€ 45.00
13271A
132711146
ref: 13271A
PLATE
€ 2.50
13271B
132711147
ref: 13271B
PLATE
€ 5.50
14041
140411130GU
ref: 14041
COVER-COMP,SIDE BAG,L
€ 507.50
14041C
140411131GU
ref: 14041C
COVER-COMP,SIDE BAG,R
140411131GU
€ 462.50
14091
140910346
ref: 14091
COVER,GRIP,LH
€ 249.00
14091A
140910347
ref: 14091A
COVER,GRIP,RH
€ 249.00
14091B
140910438
ref: 14091B
COVER,SIDE BAG STAY,L
€ 182.00
14091C
140910440
ref: 14091C
COVER,SIDE BAG STAY,R
€ 173.00
14091D
140911069
ref: 14091D
COVER
€ 14.00
27012
270121571
ref: 27012
HOOK,LOCK PLATE,LH
270121571
€ 10.50
27012A
270121572
ref: 27012A
HOOK,LOCK PLATE,RH
270121572
€ 10.50
27012B
270121575
ref: 27012B
HOOK,HANDLE
270121575
€ 13.50
35063
350630155
ref: 35063
STAY,SIDE BAG,CNT
€ 53.50
39137
391370005
ref: 39137
STAY-COMP,SIDE BAG,LH
€ 153.00
39137A
391370006
ref: 39137A
STAY-COMP,SIDE BAG,LH
€ 164.50
39137B
391370007
ref: 39137B
STAY-COMP,SIDE BAG,RH
€ 131.50
39137C
391370008
ref: 39137C
STAY-COMP,SIDE BAG,RH
€ 164.50
39137D
391370009
ref: 39137D
STAY-COMP,RR
391370009
€ 225.00
39156
391560095MA
ref: 39156
PAD,BACKREST,BLACK
391560095MA
€ 101.50
43049
430491084
ref: 43049
PACKING (NAS)
€ 1.50
43049A
430491086
ref: 43049A
PACKING (NAS)
430491086
€ 1.50
46003
460031505
ref: 46003
HANDLE,SIDE BAG
460031505
€ 137.50
46075
460750021
ref: 46075
GRIP,LH
460750021
€ 471.50
46075A
460750022
ref: 46075A
GRIP,RH
460750022
€ 449.00
53009
530091104
ref: 53009
HINGE
€ 17.50
57003C
570031084819
ref: 57003C
BAG-ASSY,LH,BODY GRN+
€ 963.50
57003G
570031085819
ref: 57003G
BAG-ASSY,RH,BODY GRN+
€ 963.50
120
120S0835
ref: 120
BOLT-SOCKET,8X35,BLAC
120S0835
€ 3.00
132
132J0825
ref: 132
BOLT-FLANGED-SMALL
132J0825
€ 2.50
132A
132J0855
ref: 132A
BOLT-FLANGED-SMALL
€ 2.00
132B
132J0875
ref: 132B
BOLT-FLANGED-SMALL
132J0875
€ 4.00
92009
920091870
ref: 92009
SCREW
€ 1.00
92009A
920091871
ref: 92009A
SCREW
€ 1.00
92015
920151385
ref: 92015
NUT,CAP,6MM
920151385
€ 2.50
92022
920221317
ref: 92022
WASHER,8.5X20X1.6,BLA
920221317
€ 2.00
92033
920331300
ref: 92033
RING-SNAP
920331300
€ 1.00
92039
920391236
ref: 92039
RIVET
€ 1.50
92071
920710013
ref: 92071
GROMMET
920710013
€ 3.50
92093
920931486
ref: 92093
SEAL
€ 8.50
92093A
920931487
ref: 92093A
SEAL
€ 3.50
92093B
920931488
ref: 92093B
SEAL
€ 2.00
92093C
920931489
ref: 92093C
SEAL
€ 3.50
92143
921431450
ref: 92143
COLLAR
921431450
€ 6.50
92145
921451175
ref: 92145
SPRING
€ 4.50
92145A
921451200
ref: 92145A
SPRING
€ 4.50
92150
921501836
ref: 92150
BOLT
921501836
€ 3.00
92151
921511205
ref: 92151
BOLT,SOCKET,8X37
921511205
€ 2.50
92151A
921511435
ref: 92151A
BOLT,FLANGED,6X16
€ 1.50
92151B
921511436
ref: 92151B
BOLT
€ 1.50
92151C
921511437
ref: 92151C
BOLT
€ 1.50
92151D
921511537
ref: 92151D
BOLT,FLANGED,8X35
921511537
€ 1.50
92152
921521121
ref: 92152
COLLAR
€ 2.50
92152A
921521122
ref: 92152A
COLLAR
€ 2.00
92153
921530420
ref: 92153
BOLT,SOCKET,8X50
921530420
€ 2.00
92160
921601012
ref: 92160
DAMPER
921601012
€ 3.50
92160A
921601847
ref: 92160A
DAMPER
€ 2.00
92160B
921601976
ref: 92160B
DAMPER
921601976
€ 1.50
92161
921610237
ref: 92161
DAMPER
921610237
€ 7.50
92161A
921611171
ref: 92161A
DAMPER,SIDE BAG,LH
€ 30.00
92161B
921611176
ref: 92161B
DAMPER,SIDE BAG,RH
€ 31.00
92200
922001442
ref: 92200
WASHER
922001442
€ 1.00
92200A
922001443
ref: 92200A
WASHER
€ 1.00
92200B
922001444
ref: 92200B
WASHER,3MM
€ 1.00
92210
922101161
ref: 92210
NUT,CAP,8MM
922101161
€ 1.50
92210A
922101167
ref: 92210A
NUT,CAP,6MM
€ 2.00
92210B
922101168
ref: 92210B
NUT
€ 1.50
