Genuine VN Kawasaki Parts delivered quickly!


REAR MASTER CYLINDER

VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

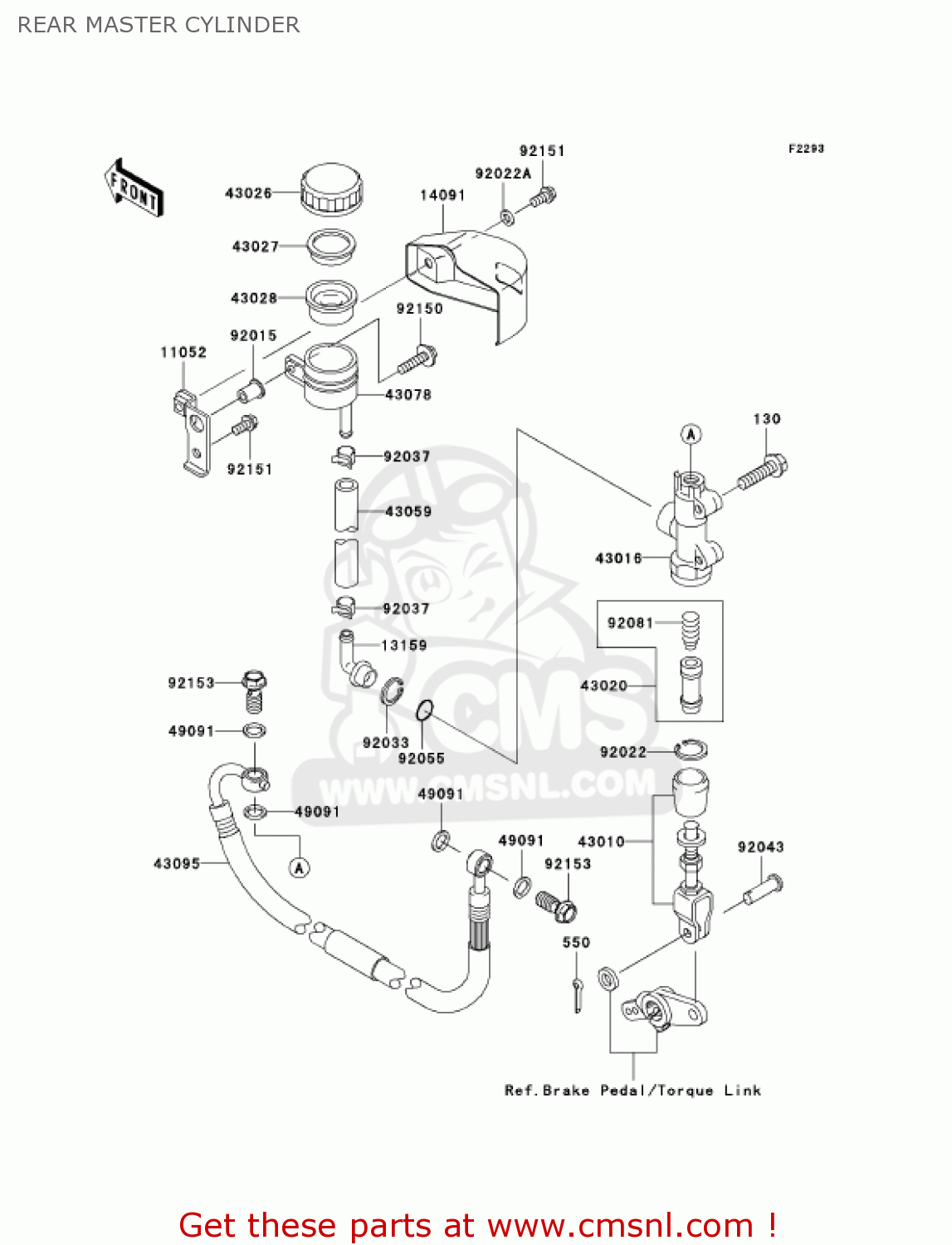

Rear master cylinder diagram VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

REAR MASTER CYLINDER VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
REAR MASTER CYLINDER VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0830
ref: 130
BOLT-FLANGED,8X30
130J0830
€ 2.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
11052
110521305
ref: 11052
BRACKET,RESERVOIR TAN
€ 6.50
13159
131591052
ref: 13159
CONNECTOR RR MASTER C
131591052
€ 9.50
14091
140910412
ref: 14091
COVER,RESERVOIR TANK
140910412
€ 30.50
43010
430101055
ref: 43010
ROD-ASSY-BRAKE
430101055
€ 44.00
43016
430161122
ref: 43016
CYLINDER-MASTER,RR
430161122
€ 171.00
43020
430201057
ref: 43020
PISTON-COMP-BRAKE
430201057
€ 47.50
43026
430261051
ref: 43026
CAP-BRAKE, RR
430261051
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
430271051
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
430281057
€ 13.00
43059
430591318
ref: 43059
HOSE-BRAKE,RR MASTER
430591318
€ 28.50
43078
430781178
ref: 43078
RESERVOIR,RR MASTER C
430781178
€ 20.00
43095
430950150
ref: 43095
HOSE-BRAKE,RR
€ 150.00
49091
490910001
ref: 49091
WASHER-SEAL,10.1X14.5
490910001
€ 1.50
92015
920151700A
ref: 92015
NUT
920151700A
€ 5.50
92022
920221601
ref: 92022
WASHER,CIRCRIP
920221601
€ 5.00
92022A
92022183
ref: 92022A
WASHER,6.2X11X1.5
92022183
€ 2.50
92033
920331186
ref: 92033
RING-SNAP,20.5MM
920331186
€ 3.00
92037
920371547
ref: 92037
CLAMP
920371547
€ 8.50
92043
920431013
ref: 92043
PIN
920431013
€ 6.50
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
920551251
€ 2.50
92081
920811737
ref: 92081
SPRING
920811737
€ 8.50
92150
921501829
ref: 92150
BOLT,6X25
921501829
€ 2.50
92151
921511401
ref: 92151
BOLT,FLANGED,6X12
€ 1.00
92153
921530627
ref: 92153
BOLT,OIL,L=23
921530627
€ 3.50
