FRAME FITTINGS

VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

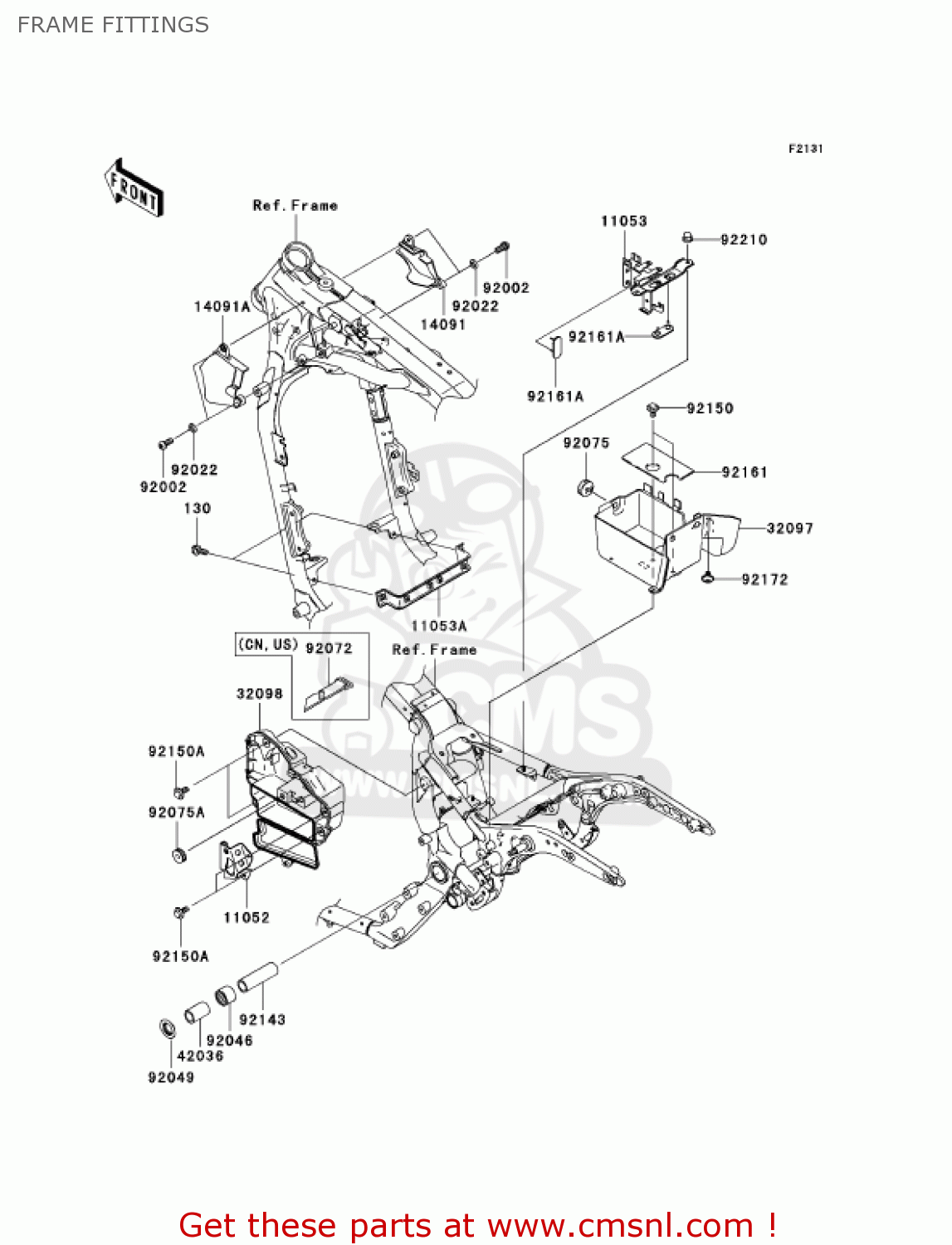

Frame fittings diagram VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA

FRAME FITTINGS VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
FRAME FITTINGS VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
FRAME FITTINGS VN1600D6F VULCAN 1600 NOMAD 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130J0616
ref: 130
BOLT-FLANGED,6X16
130J0616
€ 1.50
11052
110521234
ref: 11052
BRACKET,SIDE COVER LO
€ 15.00
11053
110530289
ref: 11053
BRACKET,BATTERY BAND
€ 10.50
11053A
110530434
ref: 11053A
BRACKET,REGULATOR
110530434
€ 18.50
14091
140910054
ref: 14091
COVER,HEAD PIPE,RH
€ 9.00
14091A
140910092
ref: 14091A
COVER,HEAD PIPE,LH
€ 9.50
32097
320971192
ref: 32097
CASE-BATTERY
€ 29.00
32098
320981137
ref: 32098
CASE-TOOL
€ 101.50
42036
420361330
ref: 42036
SLEEVE,L=45
420361330
€ 19.50
92002
920021700
ref: 92002
BOLT,6X14
€ 4.00
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92046
920461202
ref: 92046
BEARING-NEEDLE,BM2824
920461202
€ 25.00
92049
920491181
ref: 92049
SEAL-OIL
920491181
€ 7.50
92072
920721331
ref: 92072
[CN,US
BAND,L=470
920721331
€ 16.50
92075
920751067
ref: 92075
DAMPER,SIDE COVER
920751067
€ 3.00
92075A
920751629
ref: 92075A
DAMPER,SEAT COVER KIT
920751629
€ 3.00
92143
921431878
ref: 92143
COLLAR,20.2X27X90
921431878
€ 22.50
92150
921501133
ref: 92150
BOLT,6X14
921501133
€ 2.50
92150A
921501198
ref: 92150A
BOLT
921501198
€ 2.50
92161
921611097
ref: 92161
DAMPER,BATTERY
921611097
€ 3.50
92161A
921611214
ref: 92161A
DAMPER,BATTERY BAND
€ 2.50
92172
921720005
ref: 92172
SCREW,6X10
921720005
€ 1.50
92210
922100003
ref: 92210
NUT
922100003
€ 0.50
