SWINGARM

VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

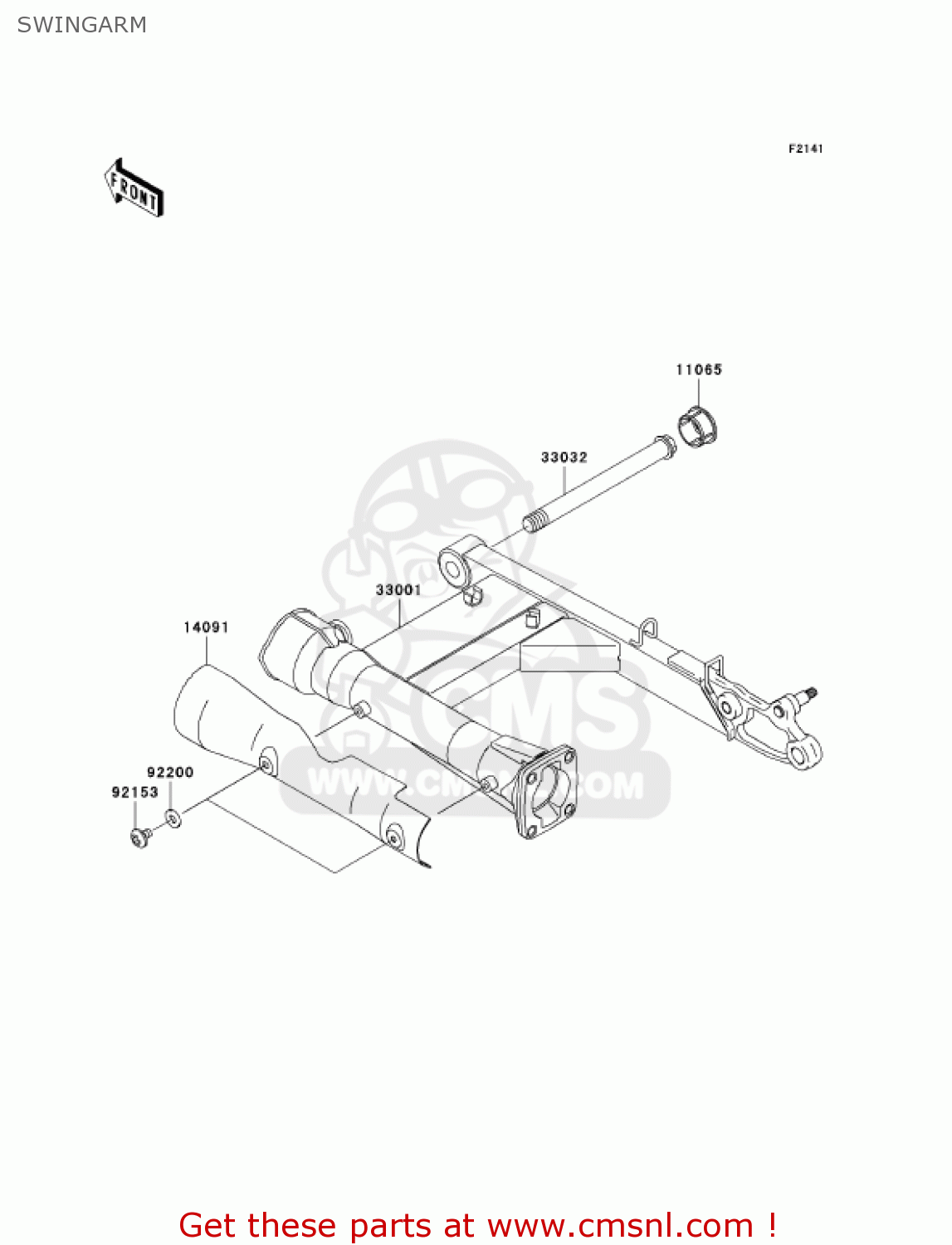

Swingarm diagram VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

SWINGARM VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

SWINGARM VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

11065

110651259
ref: 11065

CAP,SWING ARM

€ 3.50

14091

140910060
ref: 14091

COVER,SWING ARM

€ 29.50

33001

330010005
ref: 33001

ARM-COMP-SWING

€ 887.50

33032

330321181
ref: 33032

SHAFT-SWING ARM

€ 47.50

92153

921530411
ref: 92153

BOLT,SOCKET,6X10

€ 2.00

92200

922003775
ref: 92200

WASHER,6.5X14.5X1.5

€ 1.50
