Genuine VN Kawasaki Parts delivered quickly!


HEADLIGHT(S)

VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

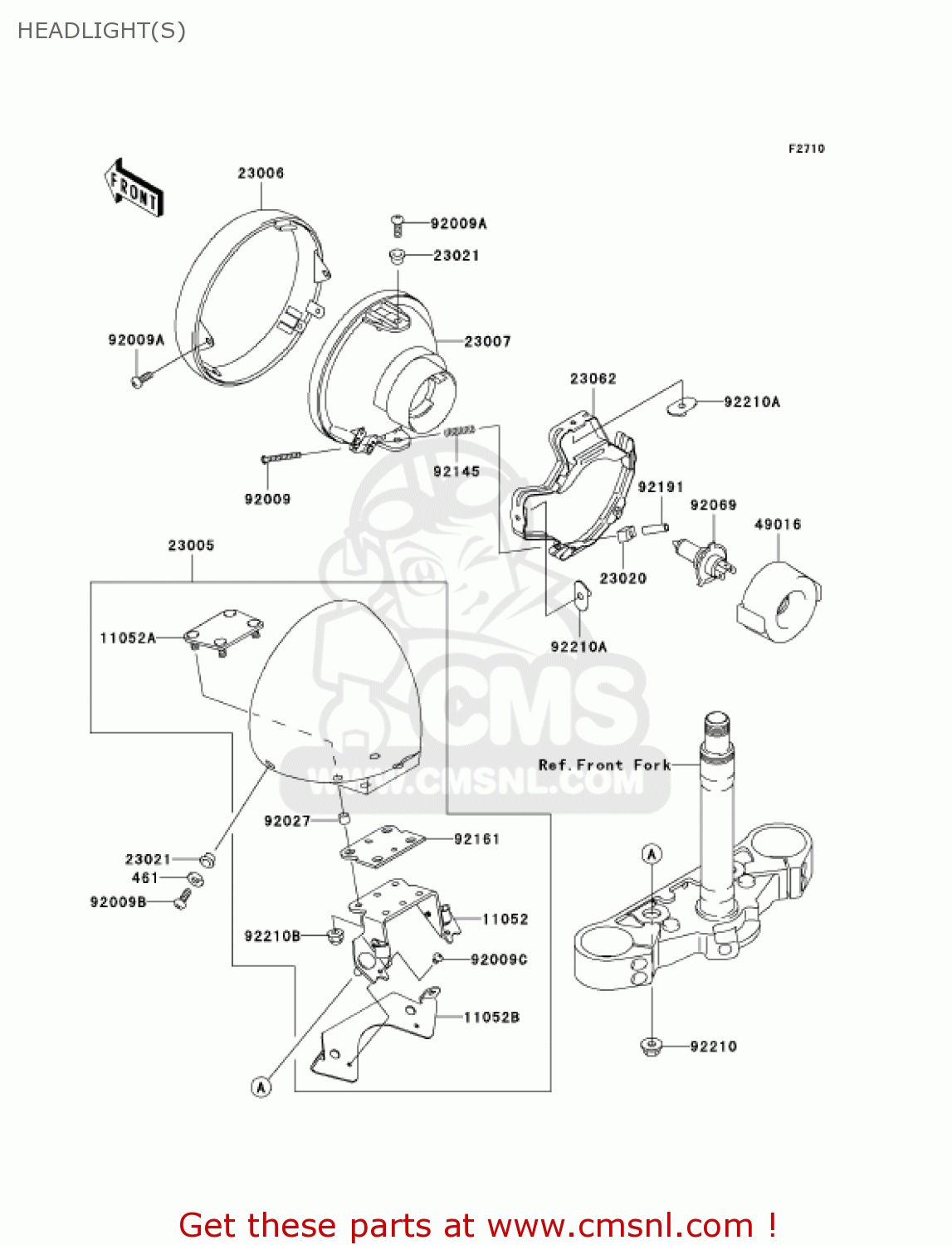

Headlight(s) diagram VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

HEADLIGHT(S) VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA
HEADLIGHT(S) VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA
HEADLIGHT(S) VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
461
461S0500
ref: 461
WASHER-SPRING,5MM
461S0500
€ 0.50
11052
110521265
ref: 11052
BRACKET,HEAD LAMP BOD
110521265
€ 22.50
11052A
110521266
ref: 11052A
BRACKET,HEAD LAMP BOD
110521266
€ 17.00
11052B
110521371
ref: 11052B
BRACKET,HEAD LAMP BOD
€ 20.00
23005
230051202
ref: 23005
BODY-COMP-HEAD LAMP
230051202
€ 280.50
23006
230060001
ref: 23006
RIM-LAMP
230060001
€ 75.50
23007
230071359
ref: 23007
LENS-COMP,HEAD LAMP
230071359
€ 148.00
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23062
230621131
ref: 23062
BRACKET-COMP,HEAD LAM
€ 40.00
49016
490161203
ref: 49016
COVER-SEAL,SOCKET
490161203
€ 12.00
92009
920091816
ref: 92009
SCREW
920091816
€ 3.50
92009A
920091879
ref: 92009A
SCREW,5X16
920091879
€ 1.00
92009B
920091947
ref: 92009B
SCREW,5MM
920091947
€ 2.00
92009C
920091988
ref: 92009C
SCREW,4X5
€ 1.50
92027
92027103
ref: 92027
COLLAR
92027103
€ 2.50
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92145
921451268
ref: 92145
SPRING,HEAD LAMP LENS
921451268
€ 3.00
92161
921611212
ref: 92161
DAMPER,HEAD LAMP BODY
€ 9.00
92191
921911217
ref: 92191
TUBE
921911217
€ 1.50
92210
922100004
ref: 92210
NUT,FLANGED,8MM
922100004
€ 1.00
92210A
922101060
ref: 92210A
NUT
922101060
€ 1.50
92210B
922101252
ref: 92210B
NUT,CAP,6MM
922101252
€ 1.00
