SEAT

VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

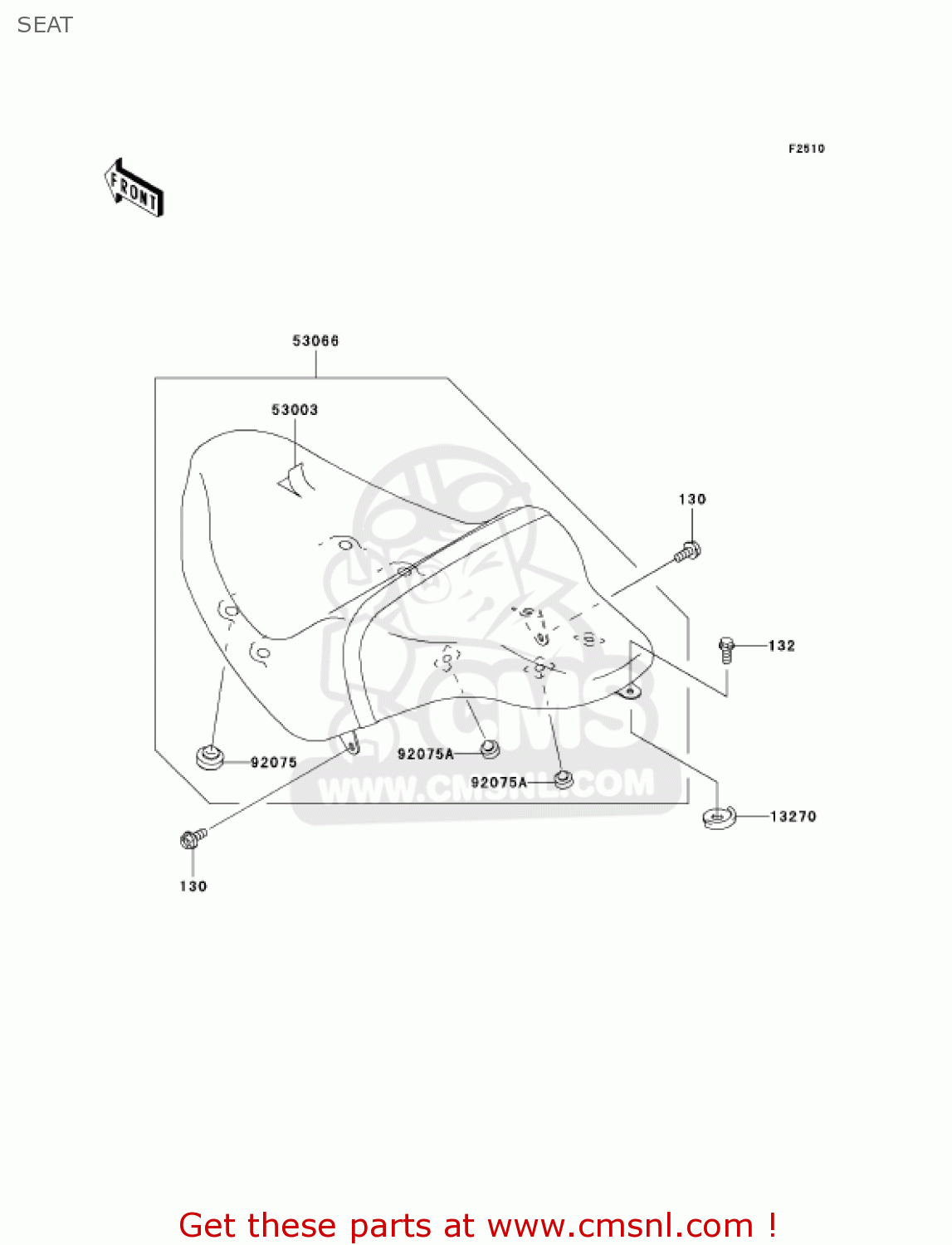

Seat diagram VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

SEAT VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

SEAT VN1600B2 VULCAN 1600 MEANSTREAK 2005 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0614
ref: 130

BOLT-FLANGED,6X14,BLA

€ 1.50

132

132J0614
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

13270

132701484
ref: 13270

PLATE,RR SEAT,FR

€ 5.00

53003

530031476MA
ref: 53003

LEATHER,SEAT,BLACK

€ 196.50

53066

530660016MA
ref: 53066

SEAT-ASSY,DUAL,W/BAND

€ 535.00

92075

920751045
ref: 92075

DAMPER,STAND STOPPER

€ 5.00

92075A

920751927
ref: 92075A

DAMPER,10X20X8

€ 3.00
