MUFFLER(S)

VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA

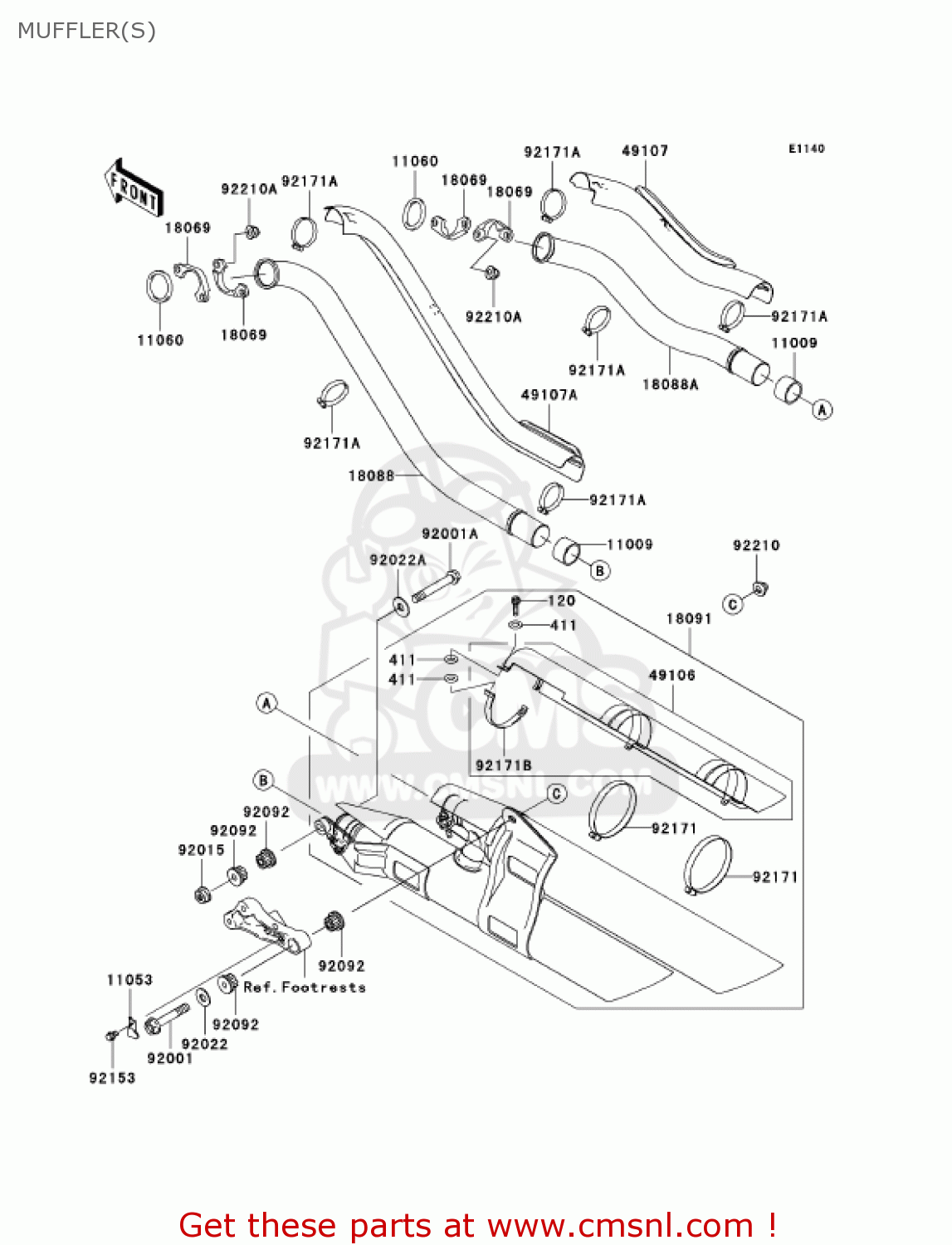

Muffler(s) diagram VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA

MUFFLER(S) VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA
MUFFLER(S) VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA
MUFFLER(S) VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA
prices are in EUR
ref
part #
description
quantity
120
120R0620
ref: 120
BOLT-SOCKET,6X20
120R0620
€ 2.50
411
411S0600
ref: 411
WASHER
411S0600
€ 1.00
11009
110091666
ref: 11009
GASKET,EXHAUST PIPE C (NAS)
110091666
€ 20.50
11053
110530267
ref: 11053
BRACKET
€ 1.50
11060
110601119
ref: 11060
GASKET,EXHAUST PIPE (NAS)
110601119
€ 9.00
18069
180691161
ref: 18069
HOLDER-EXHAUST PIPE
180691161
€ 27.00
18088
180881246
ref: 18088
PIPE-EXHAUST,FR
€ 364.00
18088A
180881247
ref: 18088A
PIPE-EXHAUST,RR
€ 244.50
18091
180910192
ref: 18091
BODY-COMP-MUFFLER
€ 718.50
49106
491060007
ref: 49106
COVER-MUFFLER
€ 146.50
49107
491070010
ref: 49107
COVER-EXHAUST PIPE,RR
€ 134.50
49107A
491070016
ref: 49107A
COVER-EXHAUST PIPE,FR
€ 189.00
92001
920011617
ref: 92001
BOLT,FLANGED,10X60
920011617
€ 6.50
92001A
920011618
ref: 92001A
BOLT,FLANGED,10X70
920011618
€ 7.00
92015
920151356
ref: 92015
NUT,10MM
920151356
€ 2.00
92022
92022044
ref: 92022
WASHER,10.5X26X2.3
92022044
€ 2.50
92022A
920221302
ref: 92022A
WASHER,10.5X30X2.3,BL
920221302
€ 4.50
92092
920921013
ref: 92092
BUSHING-RUBBER,MUFFLE
920921013
€ 11.50
92153
921530381
ref: 92153
BOLT,6X10
€ 2.00
92171
921710048
ref: 92171
CLAMP
€ 12.00
92171A
921710072
ref: 92171A
CLAMP
921710072
€ 6.50
92171B
921710373
ref: 92171B
CLAMP
€ 12.00
92210
922101121
ref: 92210
NUT,CAP,10MM
922101121
€ 2.50
92210A
922101132
ref: 92210A
NUT,CAP,8MM
922101132
€ 2.50
