HEADLIGHT(S)

VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA

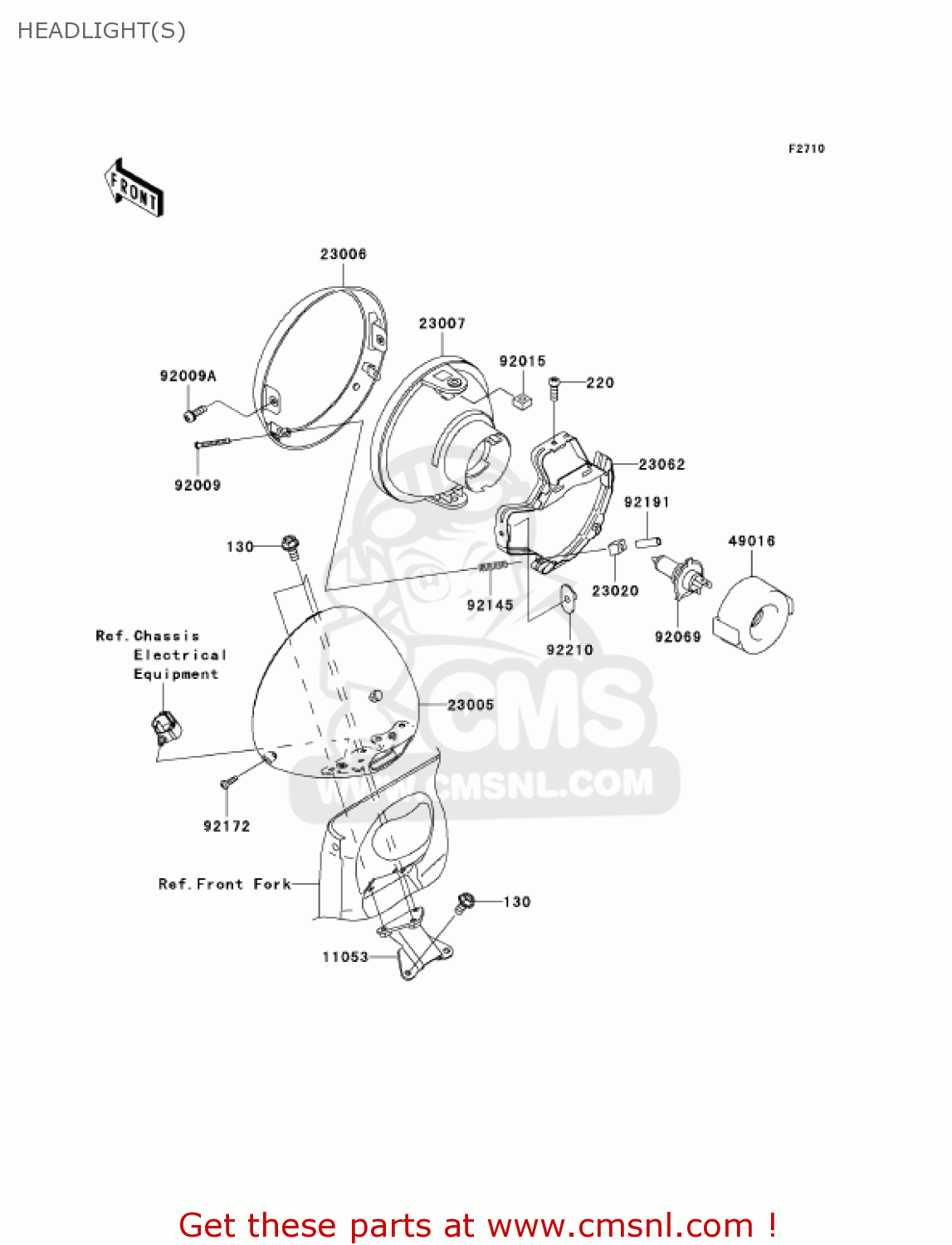

Headlight(s) diagram VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130H0614
ref: 130

BOLT-FLANGED,6X14

€ 0.50

220

220D0516
ref: 220

SCREW-PAN-CROSS

€ 2.00

11053

110530324
ref: 11053

BRACKET,HEAD LAMP

€ 20.00

23005

230051205
ref: 23005

BODY-COMP-HEAD LAMP

€ 263.50

23006

230061081
ref: 23006

RIM-LAMP

€ 64.50

23007

230071396
ref: 23007

LENS-COMP,HEAD LAMP

€ 120.50

23020

23020018
ref: 23020

NUT,4MM,FOCUS ADJUST

€ 3.00

23062

230621132
ref: 23062

BRACKET-COMP,HEAD LAM

€ 36.00

49016

490161203
ref: 49016

COVER-SEAL,SOCKET

€ 12.00

92009

920091816
ref: 92009

SCREW

€ 3.50

92009A

920091879
ref: 92009A

SCREW,5X16

€ 1.00

92015

920151157
ref: 92015

NUT,5MM

€ 3.50

92069

920691002
ref: 92069

BULB,12V-60155W

€ 15.00

92145

921451268
ref: 92145

SPRING,HEAD LAMP LENS

€ 3.00

92172

921720145
ref: 92172

SCREW,5X14

€ 1.50

92191

921911217
ref: 92191

TUBE

€ 1.50

92210

922101060
ref: 92210

NUT

€ 1.50
