LABELS

VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA

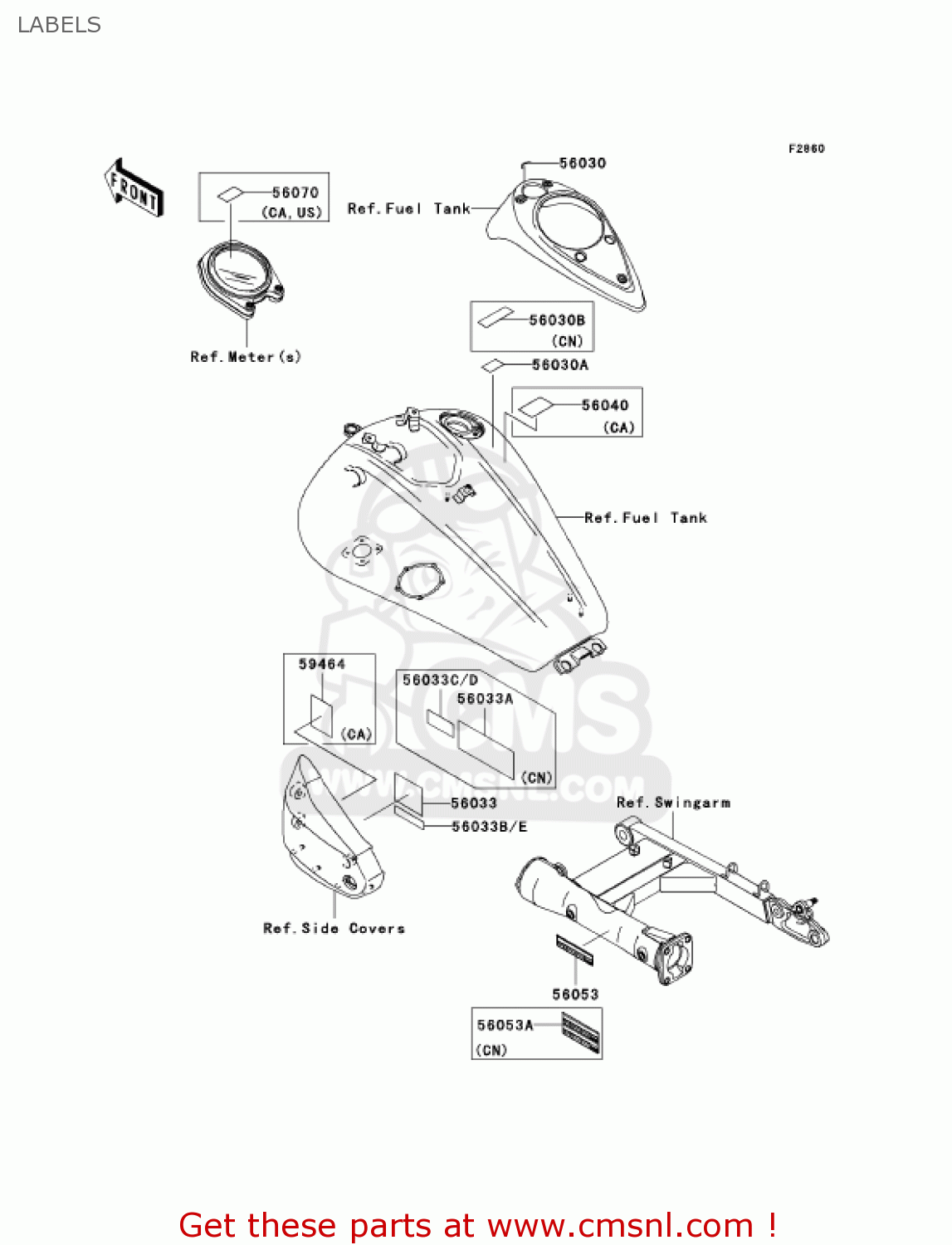

Labels diagram VN1600A7FA VULCAN 1600 CLASSIC 2007 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

56030

560300013
ref: 56030

LABEL,IGNITION

€ 4.50

56030

560301177
ref: 56030

LABEL,GASOLINE

€ 4.00

56033

560330011
ref: 56033

LABEL-MANUAL,DAILY SA

€ 3.50

56033

560330164
ref: 56033

LABEL-MANUAL,OIL&OIL

€ 3.50

56040

560401121
ref: 56040
[CA]

LABEL-WARNING,FUEL TA

€ 3.50

56053

560530037
ref: 56053

LABEL-SPECIFICATION,T

€ 3.50

56070

560700008
ref: 56070

LABEL-WARNING,BREAK I

€ 3.50

59464

594640043
ref: 59464
[CA]

LABEL-CERTIFICATION,E

€ 3.50
