REAR WHEEL/CHAIN

VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA

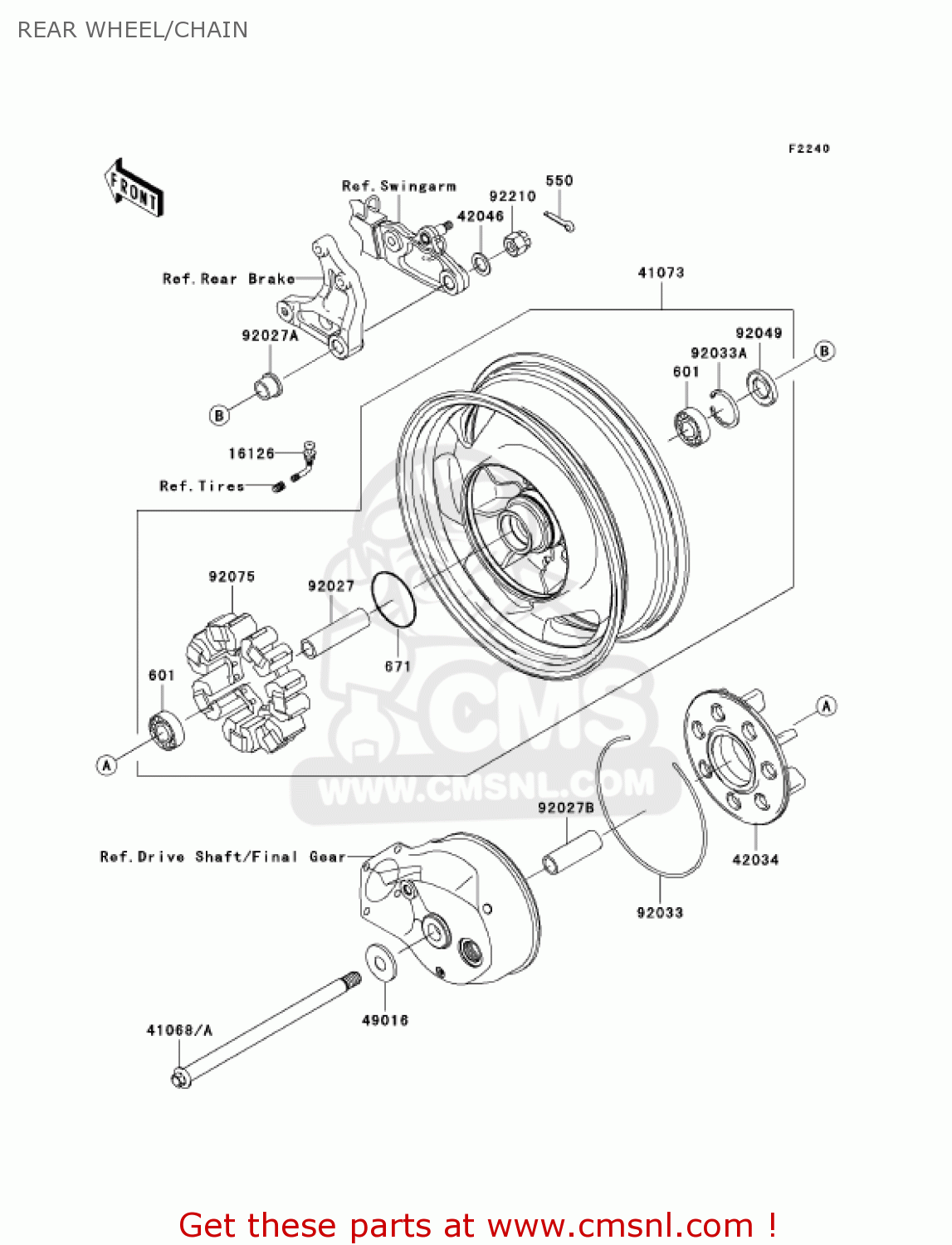

Rear wheel/chain diagram VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6304UU
ref: 601

BEARING-BALL,#6304UUC

€ 34.50

671

671B2580
ref: 671

O RING,80MM

€ 4.00

16126

161261365
ref: 16126

VALVE

€ 17.50

41068

410680045
ref: 41068

AXLE,RR

€ 99.50

41073

410730032
ref: 41073

WHEEL-ASSY,RR

€ 1,011.00

42034

420340002
ref: 42034

COUPLING,RR HUB

€ 251.00

42046

42046003
ref: 42046

WASHER,21X33X2.6

€ 2.50

49016

490161019
ref: 49016

COVER-SEAL

€ 5.50

92027

920271901
ref: 92027

COLLAR,20.2X28X105.5

€ 25.50

92027A

920271902
ref: 92027A

COLLAR,RR AXLE,L=21.5

€ 17.00

92027B

920271969
ref: 92027B

COLLAR,20.2X28X86

€ 10.00

92033

920330012
ref: 92033

RING-SNAP,220MM

€ 12.50

92033A

920331043
ref: 92033A

RING,SNAP,56.2M/M

€ 6.00

92049

920491061
ref: 92049

SEAL-OIL,28X52X5

€ 13.00

92075

920751121
ref: 92075

DAMPER,SHOCK,RR HUB

€ 88.00

92210

922101134
ref: 92210

NUT

€ 4.50
