BRAKE PEDAL/TORQUE LINK

VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA

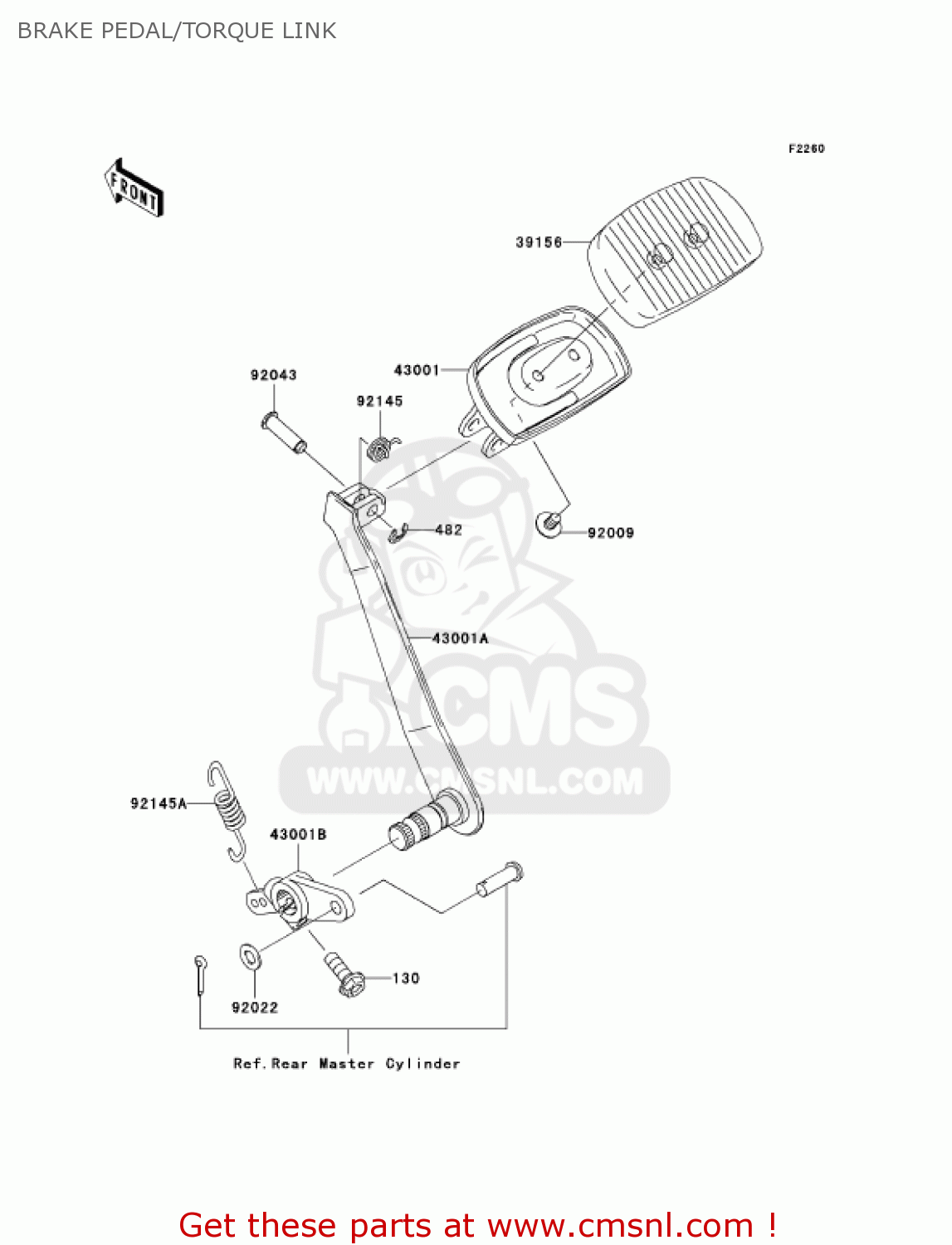

Brake pedal/torque link diagram VN1600A7F VULCAN 1600 CLASSIC 2007 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0830
ref: 130

BOLT-FLANGED,8X30

€ 2.50

482

482L7000
ref: 482

CIRCLIP-TYPE-E

€ 2.50

39156

391560045
ref: 39156

PAD,BRAKE PEDAL

€ 28.00

43001

430010023
ref: 43001

LEVER-BRAKE

€ 23.50

43001A

430010035
ref: 43001A

LEVER-BRAKE,PEDAL

€ 96.50

43001B

430011431
ref: 43001B

LEVER-BRAKE

€ 30.00

92009

920091818
ref: 92009

SCREW

€ 2.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92043

920430047
ref: 92043

PIN,8X24.5

€ 4.50

92145

921450168
ref: 92145

SPRING

€ 4.50

92145A

921450191
ref: 92145A

SPRING,BRAKE PEDAL RE

€ 7.00
